53.5 m³ (70.0 yd³)

Heavy Equipment

53.5 m³ (70.0 yd³)

Width
287 in / 7290 mm
Wing Angle
30 °
Height
110 in / 2794 mm

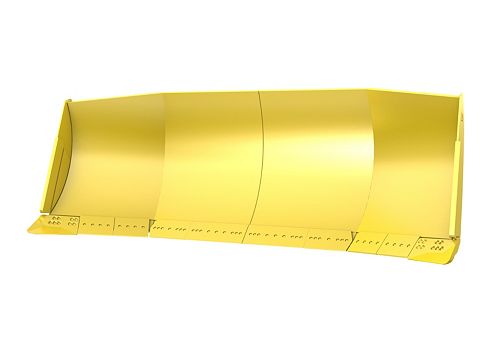

These U-blades are designed for pure production: moving bulk material at the lowest cost in time and fuel. The sidebars on the wings are near vertical for penetration into a pile—this lets the operator cut a load loose from a larger mass. The side wings are angled toward the center, and the moldboard is both tall and curved to push the material to the center of the blade and cause it to roll. The bottom line is that this blade will move more with less effort than using another blade type.

Product Specifications
Capacity 70 yd³ / 53.5 m³
Width 287 in / 7290 mm
Wing Angle 30 °
Height 110 in / 2794 mm
Weight 25300 lb / 11476 kg
