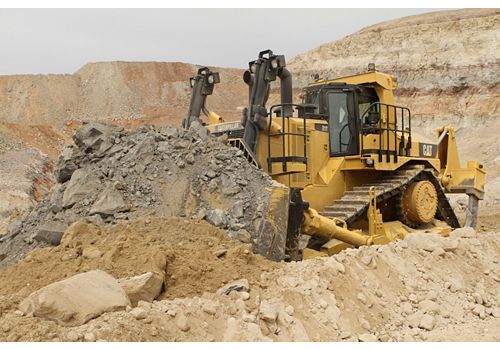

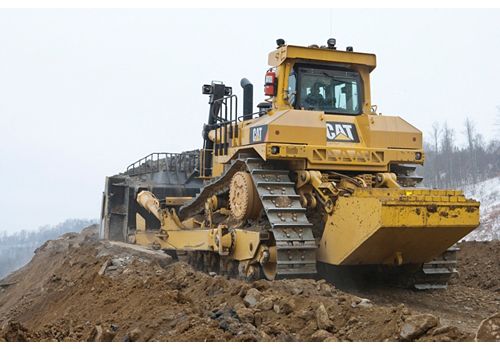

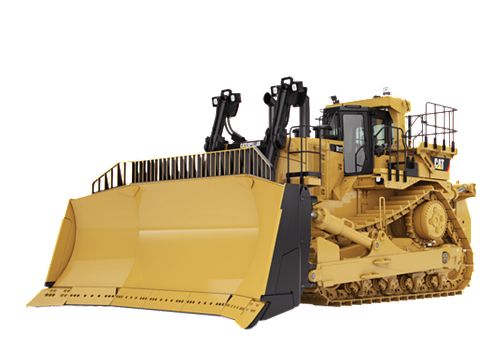

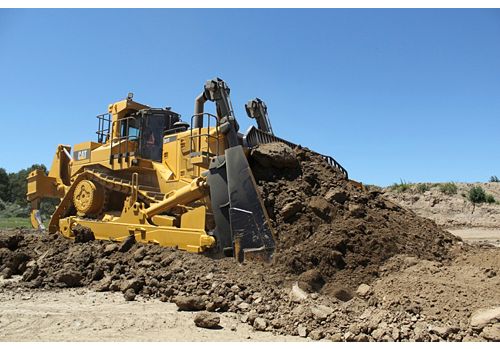

D11T/D11T CD

Flywheel Power
850 HP / 634 kW
Operating Weight
229800 lb / 104236 kg
Shipping Weight
82640 lb / 37485 kg

Cat® large dozers are designed with durability built in, ensuring maximum availability through multiple life cycles. By optimizing performance and simplifying serviceability with our modular design, our machines move more material efficiently and safely at a lower cost per ton. These models include safety enhancements, improved operator comfort, and productivity increasing electronic features to keep your business strong for generations to come.

Loan Calculator Credit Application
Build & Quote
alt 1
D11T/D11T CD Product Brochure Move More - Cat® Large Dozers
Engine
Engine Model Cat® C32
Flywheel Power 850 HP / 634 kW
Bore 5.7 in / 145 mm
Stroke 6.4 in / 162 mm
Displacement 1959 in³ / 32.1 l
Engine Power - ISO 14396 908 HP / 677 kW
Engine Power - Net SAE J1349/ISO 9249 850 HP / 634 kW
Engine Power - Gross SAE J1995* 913 HP / 681 kW
Net SAE J1349/ISO 9249 850 HP / 634 kW
Emissions U.S. EPA Tier 4 Final
Note (2) Engine ratings apply at 1,800 rpm.
Note (1) * Excludes all fan losses.
Note (4) No derating required up to 3658 m (12,000 ft) altitude. High altitude attachment available for greater than 3658 m (12,000 ft).
Note (3) Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Weights
Operating Weight 229800 lb / 104236 kg
Shipping Weight 82640 lb / 37485 kg
Shipping Weight - CD 83340 lb / 37802 kg
Operating Weight - CD 248500 lb / 112718 kg
Note (2) D11T Shipping Weight: Base machine chassis with cab and pivot shaft. Doesn't include ROPS, ripper, blade, track, or roller frames.
Note (4) D11T CD Shipping Weight: Base machine chassis with cab and pivot shaft. Doesn't include ROPS, ripper, blade, track, or roller frames.
Note (1) D11T Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.
Note (3) D11T CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, single-shank ripper, and operator.
Transmission
1 Forward 2.4 mile/h / 3.9 km/h
2 Forward 4.2 mile/h / 6.8 km/h
3 Forward 7.3 mile/h / 11.8 km/h
1 Reverse 2.9 mile/h / 4.7 km/h
2 Reverse 5.1 mile/h / 8.2 km/h
3 Reverse 8.7 mile/h / 14 km/h
Type Planetary powershift
Transmission Clutch Diameter 21 in / 533 mm
Hydraulic Controls
D11T - Ripper (Pitch) Relief Valve Setting 3300 psi / 22750 kPa
D11T - Bulldozer Relief Valve Setting 3300 psi / 22750 kPa
D11T - Pump Type Gear-type pump
D11T CD - Ripper (Pitch) Relief Valve Setting 3500 psi / 24135 kPa
D11T CD - Carrydozer Relief Valve Setting 3500 psi / 24135 kPa
D11T CD - Pump Output - Implement 177 gal/min / 670 l/min
D11T CD - Tilt Cylinder Flow 66 gal/min / 250 l/min
D11T - Combined Pump Output - Implement 164 gal/min / 620 l/min
D11T - Tilt Pump Flow 41 gal/min / 155 l/min
D11T - Tilt Cylinder Relief Valve Setting 3525 psi / 24300 kPa
D11T CD - Ripper (Lift) Relief Valve Setting 3500 psi / 24135 kPa
D11T - Ripper (Lift) Relief Valve Setting 3300 psi / 22750 kPa
D11T CD - Tilt Cylinder Relief Valve Setting 3600 psi / 24825 kPa
D11T CD - Pump Type Gear-type pump
Note (3) Complete system consists of pump, tank with filter, oil cooler, valves, lines, and control levers.
Note (2) Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
Note (1) Pump output measured at 1,800 engine rpm and 6895 kPa (1,000 psi).
Undercarriage
Shoe Type Extreme Service
Width - Shoe 28 in / 710 mm
Shoes/Side 41
Grouser Height 4 in / 102 mm
Pitch 12.5 in / 318 mm
Track Gauge 114 in / 2896 mm
Length - Track on Ground 175 in / 4444 mm
Ground Contact Area 9781 in² / 6.3 m²
Track Rollers/Side 8
Number of Carrier Rollers 1 per side (optional)
Ground Clearance* 30.6 in / 777 mm
Ground Contact Area - CD 12605 in² / 8.1 m²
Width - Shoe - CD 36 in / 915 mm
Note (2) Sleeve Bearing Track with Positive Pin Retention.
Note (1) * Includes grouser height for total dimensions on hard surface.
Service Refill Capacities
Fuel Tank 425 gal (US) / 1609 l
Cooling System 71.1 gal (US) / 269 l
Engine Crankcase* 27.2 gal (US) / 103 l
Power Train 90.9 gal (US) / 344 l
Final Drive - Each 12.4 gal (US) / 47 l
Roller Frames - Each 24.8 gal (US) / 94 l
Pivot Shaft Compartment 18.8 gal (US) / 71 l
Implement Hydraulic System - Tank Only 58.9 gal (US) / 223 l
Fuel Tank - High Capacity 505 gal (US) / 1911 l
Fuel Tank - Platform Ready 470 gal (US) / 1778 l
Note * With oil filters.
Track Roller Frame
Oscillation 13.8 in / 351 mm
Steering and Brakes
Spring Applied Multiple-disc Brake 24.1 in / 612 mm
Hydraulically Applied Multiple-disc Steering Clutch 17.3 in / 440 mm
Standards
ROPS Rollover Protective Structure (ROPS) meets the following criteria: SAE J1040 MAY94, ISO 3471:1994.
FOPS Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
Sound (2) The exterior sound pressure level for the standard machine measured at a distance of 15 m (49.2 ft) according to the test procedures specified in SAE J88 APR95, mid-gear-moving operation, is 87 dB(A).
Sound (1) The operator Equivalent Sound Pressure Level (Leq) is 79 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. This is a dynamic cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.
Dimensions (Approximate) - D11T
Length - Basic Tractor - With Drawbar 242.5 in / 6160 mm
Overall Length - Basic Tractor 242.5 in / 6160 mm
Length - With U-Blade 340.2 in / 8641 mm
Length - With SU-Blade 337.8 in / 8579 mm
Overall Length - SU-Blade/SS Ripper 414.4 in / 10525 mm
Track Gauge 114 in / 2896 mm
Length - Track on Ground 175 in / 4444 mm
Length - With Multi-Shank Ripper 331.8 in / 8427 mm
Height - Top of Stack* 179.1 in / 4549 mm
Height - FOPS Cab* 173.4 in / 4405 mm
Width - Without Trunnions - Standard Shoe 148.9 in / 3782 mm
Height - ROPS/Canopy* 185.9 in / 4723 mm
Drawbar Height (Center of Clevis)* 37.1 in / 942 mm
Width - Over Trunnions 172.4 in / 4379 mm
Note (2) D11T shown equipped with 710 mm (28 in) shoes.
Ground Clearance* 31.4 in / 798 mm
Note (1) *Includes grouser height for total dimensions on hard surfaces.
Length - With Single-Shank Ripper 319.2 in / 8107 mm
Dimensions (Approximate) - D11T CD
Overall Length - SU-Blade/SS Ripper** 421.7 in / 10712 mm
Track Gauge 114 in / 2896 mm
Length - With SU-Blade** 345.1 in / 8765 mm
Height - ROPS/Canopy* 185.9 in / 4723 mm
Height - Top of Stack* 179.1 in / 4549 mm
Width - Over Trunnions 172.4 in / 4379 mm
Drawbar Height (Center of Clevis)* 37.1 in / 942 mm
Ground Clearance* 31.4 in / 798 mm
Length - Track on Ground 175 in / 4444 mm
Length - With Single-Shank Ripper 319.2 in / 8107 mm
Note (3) D11T shown equipped with 710 mm (28 in) shoes.
Note (1) *Includes grouser height for total dimensions on hard surfaces.
Width - Without Trunnions - Standard Shoe 149.8 in / 3806 mm
Overall Length - Basic Tractor 242.5 in / 6160 mm
Height - FOPS Cab* 173.4 in / 4405 mm
Note (2) **CD Blade on D11T CD.
Length - With Multi-Shank Ripper 331.8 in / 8427 mm
Length - Basic Tractor - With Drawbar 242.5 in / 6160 mm

Standard Equipment

  • ELECTRICAL
    • Alternator, 150 amp
    • Back up alarm
    • Batteries, 12-volt (4), 200 amp-hour
    • Converters, 12-volt, 10 amp and 20 amp
    • Diagnostic connector
    • Horn, forward warning
    • Lights, engine compartment
    • Lighting system, five (5) HID/seven (7) Halogen
    • Starting receptacle

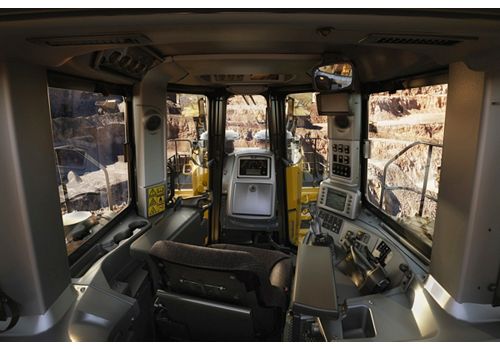

  • OPERATOR ENVIRONMENT
    • Advisor-electronic monitoring system
    • Air conditioner and heater
    • Armrest, adjustable
    • Cab, FOPS
    • Deactivation switch, hydraulic controls
    • Decelerator, pedal
    • Finger Tip Control (FTC) steering
    • Governor switch, electronic
    • Hydraulic system: – Electronically controlled for bulldozer and ripper control
    • Mirror, rearview
    • Radio ready, entertainment
    • ROPS rollbar
    • Seat belt, retractable 76 mm (3 in)
    • Seat, cloth, air suspension
    • Wipers, intermittent, low and high speeds
  • POWER TRAIN
    • Cat C32
    • Aftercoolers, air-to-air
    • Air filters, dual with precleaner
    • Aluminum bar plate cooling system: – Serial number prefix: AMA and MDG
    • Controlled throttle shifting
    • Coolant, extended life
    • Shift management
    • Engine Idle Shutdown Timer
    • Engine precleaner
    • Ether starting aid, automatic
    • Four planet, double-reduction planetary final drives
    • Fuel priming pump, electric
    • High speed oil changing system
    • Hydraulic demand fan
    • Copper Grommetted Tube Radiator - Serial number prefix JEL and JNS
    • Mufflers, dual
    • Parking brake, electronic
    • Prescreener
    • Separator, water/fuel
    • Thermal shields
    • Torque divider
    • Transmission, powershift: – (3F/3R speeds)
  • TECHNOLOGY
    • Auto blade assist
    • Enhanced auto shift
    • Product Link (satellite)
    • VIMS 3G
  • UNDERCARRIAGE
    • Equalizer bar end pin grease fittings, remote
    • Rollers and idlers, lifetime lubricated
    • Sprocket rim segments, replaceable
    • Suspension-type undercarriage, eight-roller tubular track roller frame
    • Three bolt idler and roller caps
    • Track adjusters, hydraulic
    • Track guides
    • Two-piece master links
  • SAFETY AND SECURITY
    • Anchorage points
    • Fender guard rails
    • Heavy duty steps and handles
    • Operator not present monitoring system
    • Slope and side-slope monitor
  • OTHER STANDARD EQUIPMENT
    • Bottom guards
    • CD ROM parts book
    • Dual-tilt blade control
    • Ecology drains
    • Engine enclosure
    • Fluid sampling ports
    • Grade control ready
    • Ground level service center
    • Ripper Hydraulics
    • Vandalism, protection (8 caplocks)

Optional Equipment

  • GUARDS
    • Bottom guards, sealed
    • Bottom guards, partial
    • Guard, undercarriage idlers
    • Screens, grill door
  • OPERATOR STATION
    • Air conditioner: – Fender – ROPS
    • Cab glass: – 276 kPa (40 psi) – Dual pane impact resistant
    • Heated and ventilated seat
    • Operator arrangement: – 5th percentile arrangement – Quick opening
    • Powered precleaner
    • Visibility arrangements (camera and mirrors): – Single camera – Dual camera – Mirrors
    • Window shades
  • POWER TRAIN
    • Engine coolant, arctic
    • Engine precleaner, turbine
    • Engine prelube
    • Fan arrangements: – Hydraulic screens – Reversing (Not available on D11T Carrydozer.) – Reversing with screens (Not available on D11T Carrydozer.)
    • Final drives: – Clamshell guard
    • High altitude arrangement (Not available on D11T Carrydozer.)
    • Copper Grommetted Tube Radiator - Serial number prefix AMA and MDG
    • Remote power train and engine high speed oil change system located at the ground level service center
  • UNDERCARRIAGE
    • Carrier rollers
    • Carrier rollers – cold weather
    • Tracks, PPR, sealed and lubricated: – 710 mm (28 in) Extreme Service (Not available on D11T Carrydozer.) – 710 mm (28 in) Extreme Service abrasion resistant material (Not available on D11T Carrydozer.) – 710 mm (28 in) Extreme Service trapezoidal hole (Not available on D11T Carrydozer.) – 810 mm (32 in) Extreme Service – 810 mm (32 in) Extreme Service abrasion resistant material – 810 mm (32 in) Extreme Service trapezoidal hole – 810 mm (32 in) Extreme Service tall links – 810 mm (32 in) Extreme Service tall links abrasion resistant material – 810 mm (32 in) Extreme Service trapezoidal hole tall links – 915 mm (36 in) Extreme Service clipped – 915 mm (36 in) Extreme Service clipped abrasion resistant material – 915 mm (36 in) Extreme Service clipped trapezoidal hole – 915 mm (36 in) Extreme Service clipped tall links
    • Undercarriage arrangements: – Abrasion – Cold abrasion – Cold weather – Sound
  • BULLDOZER ATTACHMENTS
    • 11CD Abrasion resistant blade
    • 11CD No wear plate
    • 11SU Abrasion resistant blade (Not available on D11T Carrydozer.)
    • 11SU Abrasion resistant blade, black (Not available on D11T Carrydozer.)
    • 11SU No wear plate (Not available on D11T Carrydozer.)
    • 11U Abrasion resistant blade (Not available on D11T Carrydozer.)
    • 11U Abrasion resistant blade, black (Not available on D11T Carrydozer.)
    • 11U No wear plate (Not available on D11T Carrydozer.)
  • REAR ATTACHMENTS
    • Counterweight, rear
    • CapSure hammerless installation and positive retention system: – Single shank – Multi shank – Single shank deep
    • Drawbar, rear (Not available on D11T Carrydozer.)

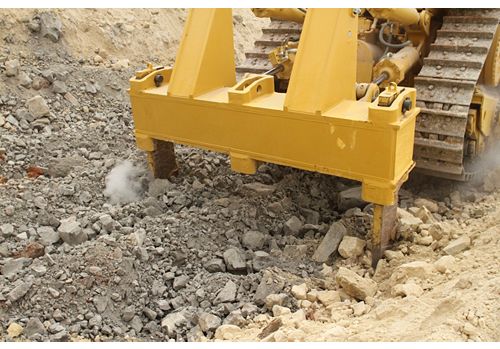

    • Multi shank ripper: – Carrydozer – Leach Pad (Not available on D11T Carrydozer.) – Standard (Not available on D11T Carrydozer.)
    • Ripper lube
    • Single shank ripper: – Carrydozer/heavy – Push block (Not available on D11T Carrydozer.) – Standard (Not available on D11T Carrydozer.)
  • TECHNOLOGY
    • Command for Dozing (Installed by dealer.)
    • Machine control, performance: – AutoCarry – Automatic ripper control
    • Terrain for Grading: – With blade control
  • SAFETY AND SECURITY

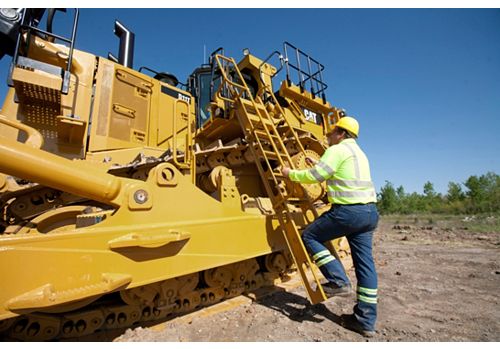

    • Access arrangement (ladder and platform)
    • Fuel tank: – Platform ready – Extra capacity
    • Lights: – LED – LED, high intensity – Warning, strobe
    • Powered access ladder
    • Rear access platform
  • OTHER ATTACHMENTS
    • Automatic lubrication system
    • Grease points, grouped
    • Heater, engine coolant
    • Heater, fuel
    • Hydraulic lines, AutoCarry
    • Hydraulic lines, screens
    • Hydraulic lines, screens and AutoCarry

Coal U-Blades

Designed for the unique challenges of efficiently moving coal.

Model Width Wing Angle Height
63.46 m³ (83.0 yd³) 270 in / 6858 mm 30 ° 121 in / 3073 mm
65.75 m³ (86.0 yd³) 290 in / 7366 mm 30 ° 120 in / 3048 mm
74.93 m³ (98.0 yd³) 322 in / 8179 mm 30 ° 120 in / 3048 mm

Reclamation U-Blades

Used for reclamation of mine spoil piles.

Model Width Wing Angle Height
53.5 m³ (70.0 yd³) 287 in / 7290 mm 30 ° 110 in / 2794 mm
Contact Us
x

We're here to help.

We'll do our best to get back to you as soon as possible.

This website uses cookies and other tracking technologies to enhance user experience and analyze our site performance and traffic. Further information is available in our Privacy Policy

Close & Accept
