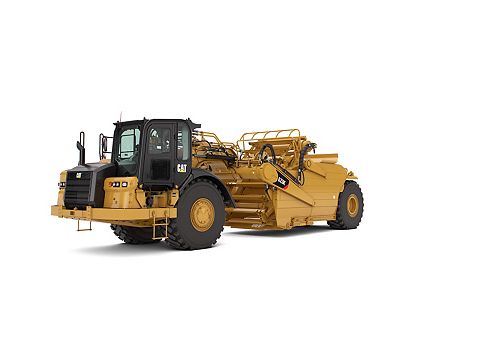

623K

Scraper Capacity - Heaped: 23 yd³ / 17.6 m³
Top Speed - Loaded: 33.5 mile/h / 53.9 km/h
Height - Overall Shipping: 158.9 in / 4037 mm

Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing Cat Wheel Tractor-Scrapers to consistently deliver high productivity at the lowest cost per ton.

Loan Calculator Credit Application

Build & Quote

623K Product Brochure

Specifications
Equipment
Related Products

General
Top Speed - Loaded	33.5 mile/h / 53.9 km/h
Number of Flights	15
Operating Weight - Empty	88061 lb / 39937 kg
180° Curb-to-Curb Turning Width	38.71 ft / 11.8 m
Overall Shipping Height	12.37 ft / 3.77 m
Overall Length	45.18 ft / 13.77 m
Maximum Depth of Spread	18.3 in / 465 mm
Fuel Tank Refill Capacity - Scraper	201 gal (US) / 763 l
Scraper Capacity - Struck	18.8 yd³ / 14.4 m³
Scraper Capacity - Heaped	23 yd³ / 17.6 m³
Rated Load	25 038 kg (55,200 lb); 25.1 tonnes (27.6 tons)
Tires - Tractor Drive	33.25R29**E3
Width - Cut	10.3 ft / 3.14 m
Elevator Flight Spacing	20 in / 520 mm
Overall Width	11.71 ft / 3.57 m
Maximum Depth of Cut	10.3 in / 262 mm
Maximum Floor Opening	4.4 ft / 1.34 m
Tires - Scraper	33.25R29**E3

Engine
Flywheel Power - Tractor/Scraper	304 kW (407 hp)
Rated Engine RPM	2000 r/min
Engine Model	Cat C13
Flywheel Power - Tractor	407 hp / 304 kW
Note	C13 engine emits equivalent to U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage III.

Transmission
Top Speed - Loaded	33.5 mile/h / 53.9 km/h

Scraper Bowl
Scraper Capacity - Heaped	23 yd³ / 17.6 m³

Service Refill Capacities
Fuel Tank	216.09 gal (US) / 818 l
Crankcase	8.08 gal (US) / 30.58 l
Cooling System	11.89 gal (US) / 45 l
Hydraulic System	21.926 gal (US) / 83 l
Transmission System	24.76 gal (US) / 93 l

Dimensions
Height - Overall Shipping	158.9 in / 4037 mm
Length - Overall Machine	542 in / 13767 mm
Width - Overall Machine	141.1 in / 3585 mm
Height - Top of Cab	142.6 in / 3621 mm
Height - Scraper Blade Maximum	20.5 in / 520 mm
Width - Tractor	133.1 in / 3381 mm
Width - Inside of Bowl	120 in / 3048 mm
Width - Outside Rear Tires	128.9 in / 3275 mm
Front of Tractor to Front Axle	122.8 in / 3119 mm
Wheel Base	329.5 in / 8370 mm
Rear Axle - Rear of Machine	89.7 in / 2278 mm
Ground Clearance - Tractor	21.9 in / 557 mm
Width - Overall Machine - Ladder Down	149.2 in / 3790 mm
Axle to Vertical Hitch Pin	17 in / 432 mm
Width - Rear Tire Centers	90.2 in / 2290 mm
Height - Top of Elevator	148.3 in / 3768 mm

Cab
ROPS/FOPS	Meets ISO standards
Exterior Sound Level	The exterior sound power level for the standard machine (ISO 6393) is 111.5 dB(A).

Safety Criteria Compliance Standards
Reverse Alarm	ISO 9533:2010
Steering System	ISO 5010:2007
Rollover Protection Structure (ROPS)	ISO 3471:2008 for up to 17 084 kg (37,664 lb)
Seat Belt	SAE J386:JUN1985
Falling Object Protective Structure (FOPS)	ISO 3449:2005 Level II
Brakes	ISO 3450:2011

Travel Speeds - Runout
Transmission Gear - Reverse	5.7 mile/h / 9.2 km/h
Transmission Gear - Sixth	18.4 mile/h / 29.6 km/h
Transmission Gear - Third	7.5 mile/h / 12.1 km/h
Transmission Gear - Second	5.5 mile/h / 8.9 km/h
Transmission Gear - Fifth	13.6 mile/h / 21.9 km/h
Transmission Gear - Seventh	24.8 mile/h / 39.9 km/h
Transmission Gear - First	3.1 mile/h / 5 km/h
Transmission Gear - Eighth	33.5 mile/h / 53.9 km/h
Transmission Gear - Fourth	10.1 mile/h / 16.3 km/h

Implement Cycle Times
Ejector Retract	9.7 s
Bowl Raise	3 s
Bowl Lower	3.5 s
Ejector Extend	6.45 s

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN - TRACTOR
- Cat C13
- Cat engine brake
- Electric start, 24 Volt
- Air cleaner, dry type with precleaner
- Fan, hydraulic
- Ground level engine shutdown
- Radiator, aluminum unit core, 9 fins per inch
- Guard, crankcase
- Muffler (only for less or non-regulated regions engine arrangement only)
- Starting aid, ether
BRAKING SYSTEM
- Primary and secondary, wet disc, hydraulic
- Throttle lock
- Parking , hydraulic released, spring applied
- Primary and secondary, wet disc, hydraulic
TRANSMISSION
- 8-speed planetary power shift
- APECS software
- Transmission hold
- Ground speed control
- Machine speed limit
- Programmable top gear selection
- Differential lock
- Standard tire spin reduction
- Differential lock protection
- Guard, power train
- ECPC control
ELECTRICAL - TRACTOR
- Alternator, 150 Amp
- Batteries (4), 12V, 1,000 CCA, maintenance free, high output
- Electrical system, 24V
- Starting/charging receptacle
LIGHTING SYSTEM - TRACTOR
- Headlights, halogen
- Halogen sdie vision (2)
- Bowl (1)
- LED Floodlights
- Turn Signals with hazard Function
- Cutting Edge (2)
ELECTRICAL - SCRAPER
- Alarm, backup
LIGHTING SYSTEM - SCRAPER
- Brake lights, LED
- Trun signals with hazard function, LED
KEYPAD SWITCHES
- Throttle lock
- Retarding level select
- Hazard lights
- Wipers/washers
- Work lights on/off
- Information mode on Messenger Display
SAFETY TAB ROCKER SWITCHES
- Regeneration control
- Parking Brake
OPERATOR ENVIRONMENT - TRACTOR
- HVAC system, heat, AC, defrost
- Thermostat control of HVAC system
- Coat hook
- Lunchbox platform with holding strap
- Diagnostic connection (2)
- 12V power ports (2)
- Differential lock (1)
- Dome courtesy light
- Horn, electric
- T-Handle implement control
- Mirror, rearview
- Radio ready
- ROPS/FOPS cab, pressurized
- Seat belt, static two-piece
- Seat, Cat Advanced Ride Management (ARM), Cat Comfort Series 3, rotates 30 degrees
- Steering wheel, tilt, telescoping, padded
- Windows, right side emergency egress
- Windows, sliding
- Windows, laminated, zipped in
- Windshield wipers, front and rear windows, includes washers
- Door lock
- Messenger Display
GAUGES, WARNINGS INCLUDE:
- Coolant temperature
- Cushion hitch
- Secondary steering
- Bail down
- Park brake
- Action lamp
- Transmission hold
- Engine oil temperature
- High beam lights
- Fuel level
- Hydraulic oil temperature
- Apron float
- Differential lock (1)
- Gear selection
- Throttle lock
- Ejector auto
- System voltage
- Brake system
- Implement lockout
- Regeneration required
- Engine speed, rpm
FLUIDS
- Extended Life Coolant to -37? C (-34? F)
OTHER STANDARD EQUIPMENT - TRACTOR
- Advanced cushion hitch
- Accumulators (cushion hitch) with Canadian Registration Number (CRN)
- Fast oil change
- Fenders, non-metallic
- Heater, engine coolant 120V
- Rims (2)
- Tow pin, front
- Vandalism locks
- Heater, engine coolant 120V
BOWL
- 17.6 m³ (23 yd³), heaped
- 13.5 m? (17.6 yd?), struck
OTHER STANDARD EQUIPMENT - SCRAPER
- Vandalism locks
- Elevator with 15 flights
- Hydraulic position sensing cylinders (bowl lift and apron)

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
STEERING ARRANGEMENTS
- Secondary Steering Arrangement
INTEGRATED TECHNOLOGIES
- Sequence Assist Arrangement
- Product Link
- Cat Grade Control with Load Assist
WORK LIGHT ATTACHMENTS
- HID work lights
AMBIENT CAPABILITY ARRANGEMENTS
- Cooling, high ambient HRC
- Extended Life Coolant, -50? C (-58? F)
- Cooling, high ambient LRC
- Cooling, low ambient LRC
OTHER ATTACHMENTS
- Camera arrangement - WAVS
- Steering lock - external
- Cab beacon
- Air horn
- Air horn and beacon
- Fender, scraper
- Wiring group
- Year of manufacture plate
SERVICE INSTRUCTIONS
- Film arrangement - U.S. (ANSI)
- Film arrangement - International (ISO)
