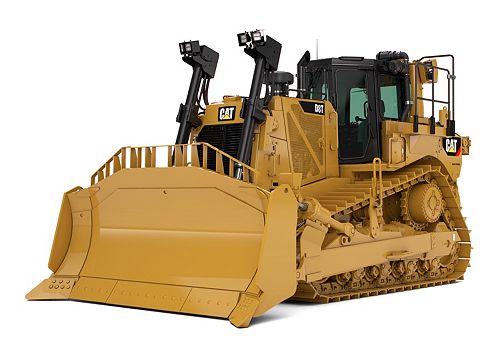

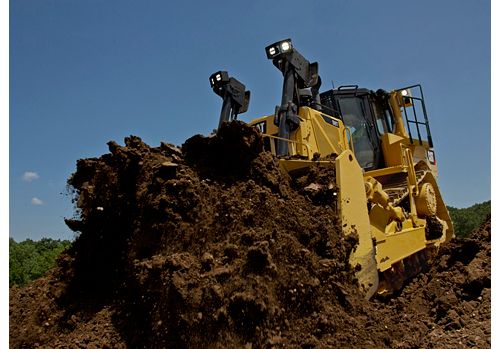

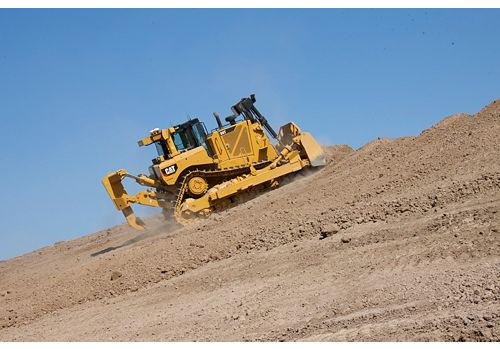

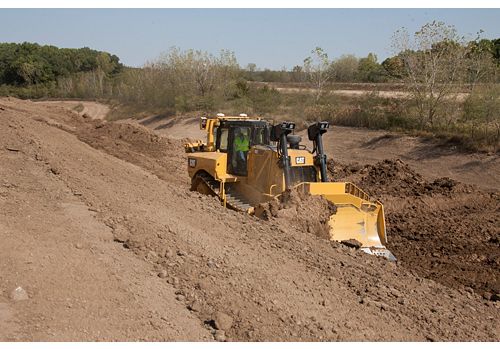

D8T

Engine
Engine Model	Cat C15 ACERT™
Flywheel Power	354 hp / 264 kW
Emissions	U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4
Displacement	928 in³ / 15.2 l
Bore	5.4 in / 137 mm
Stroke	6.75 in / 172 mm
Engine Power - Maximum - ISO 14396 (DIN)	364 hp / 268 kW
Engine Power - Maximum - SAE J1995	363 hp / 271 kW
Net Power - Rated - ISO 9249/SAE J1349	312 hp / 233 kW
Engine Power - Maximum - ISO 14396	359 hp / 268 kW
Net Power - Rated - ISO 9249/SAE J1349 (DIN)	317 hp / 233 kW
Net Power - 1,900 rpm - ISO 9249/SAE J1349	354 hp / 264 kW
Note (3)	All nonroad Tier 4 Final, Stage IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS? or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note (4)	Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Note (2)	No derating required up to 3566 m (11,700 ft) altitude, beyond 3566 m (11,700 ft) automatic derating occurs.
Engine Power - 1,700 rpm - ISO 14396	359 hp / 268 kW
Engine Power - 1,700 rpm - SAE J1995	363 hp / 271 kW
Net Power - 1,900 rpm - ISO 9249/SAE J1349 (DIN)	317 hp / 359 kW
Engine Power - 1,700 rpm - ISO 14396 (DIN)	364 hp / 268 kW
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator.
Engine Power - 1,600 rpm - ISO 14396	394 hp / 294 kW

Weights
Operating Weight	86900 lb / 39420 kg
Operating Weight - Standard	87600 lb / 39750 kg
Shipping Weight - Standard SU Blade	66300 lb / 30070 kg
Shipping Weight - LGP	68700 lb / 31160 kg
Operating Weight - LGP	82496 lb / 37420 kg
Note (1)	Operating Weight – Standard: Includes hydraulic controls, blade, tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, SU-Blade, Single-Shank Ripper, 610 mm (24 in) MS shoes, and operator.
Note (3)	Shipping Weight – Standard: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, and 610 mm (24 in) MS shoes.
Note (4)	Shipping Weight – LGP: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, and 965 mm (38 in) MS shoes.
Note (2)	Operating Weight – LGP: Includes hydraulic controls, blade, tilt cylinder, drawbar, coolant, lubricants, 100% fuel, ROPS, FOPS cab, SU-Blade, 965 mm (38 in) MS shoes, and operator.

Operating Weights
Standard	87600 lb / 39750 kg
LGP	83200 lb / 37750 kg

Transmission
2.0 Forward	4.1 mile/h / 6.6 km/h
3.0 Forward	7 mile/h / 11.3 km/h
1 Forward	2.1 mile/h / 3.4 km/h
2 Forward	3.8 mile/h / 6.1 km/h
3 Forward	6.6 mile/h / 10.6 km/h
1 Reverse	2.8 mile/h / 4.5 km/h
2 Reverse	5 mile/h / 8 km/h
3 Reverse	8.8 mile/h / 14.2 km/h
1 Forward - Drawbar Pull	148200 lb / 659.2 kN
3 Forward - Drawbar Pull	46250 lb / 205.8 kN
Drawbar Pull - 3 Forward	44 lb / 197.5 kN
Drawbar Pull - 1 Forward	148 lb / 661.1 kN
Drawbar Pull - 2 Forward	81 lb / 363.1 kN
1.0 Forward	2.2 mile/h / 3.5 km/h
2.0 Reverse	4 mile/h / 6.4 km/h
3.0 Reverse	7.3 mile/h / 11.8 km/h
2 Forward - Drawbar Pull	82300 lb / 366.1 kN

Hydraulic Controls
Pump Type	Piston-type, Variable Displacement
Pump Output - Steering	75 gal/min / 284 l/min
Pump Output - Implement	64 gal/min / 244 l/min
Tilt Cylinder Flow - Rod End Flow	35 gal/min / 132 l/min
Tilt Cylinder Flow - Head End Flow	45 gal/min / 170 l/min
Bulldozer Relief Valve Setting	3480 psi / 24000 kPa
Tilt Cylinder Relief Valve Setting	3480 psi / 24000 kPa
Ripper - Lift - Relief Valve Setting	3480 psi / 24000 kPa
Ripper - Pitch - Relief Valve Setting	3480 psi / 24000 kPa
Steering	5700 psi / 39200 kPa
Note (3)	Electro-hydraulic pilot valve assists operations of ripper and dozer controls. A standard hydraulic system includes four valves.
Note (4)	Complete system consists of pump, tank, filter, oil cooler, valves, lines, and control levers.
Note (2)	Implement Pump output measured at 1,900 rpm and 6895 kPa (1,000 psi).
Note (1)	Steering Pump output measured at 2,364 rpm (pump speed) and 30 000 kPa (4,351 psi).

Undercarriage - Standard
Length - Track on Ground	126 in / 3206 mm
Track Gauge	82 in / 2083 mm
Ground Clearance	24.1 in / 613 mm
Width - Shoe	24 in / 610 mm
Ground Pressure (ISO 16754)	13 psi / 89.6 kPa
Shoes/Side	44
Ground Contact Area	6060 in² / 3.91 m²
Pitch	8.5 in / 216 mm
Grouser Height	3.1 in / 78 mm
Track Rollers - Each Side	8
Shoe Type	Moderate Service

Undercarriage - LGP
Length - Track on Ground	126 in / 3206 mm
Grouser Height	3.1 in / 78 mm
Ground Pressure (ISO 16754)	7.7 psi / 53.3 kPa
Track Gauge	92 in / 2337 mm
Track Rollers - Each Side	8
Ground Clearance	24.1 in / 613 mm
Width - Shoe	38 in / 965 mm
Ground Contact Area	9593 in² / 6.19 m²
Shoes/Side	44
Shoe Type	Moderate Service
Pitch	8.5 in / 216 mm

Service Refill Capacities
Fuel Tank	165 gal (US) / 627 l
DEF Tank	6.3 gal (US) / 24 l
Cooling System	22.7 gal (US) / 86 l
Engine Crankcase*	10 gal (US) / 38 l
Power Train	41 gal (US) / 155 l
Roller Frames - Each	17.2 gal (US) / 65 l
Final Drive - Each	3.3 gal (US) / 12.5 l
Pivot Shaft Compartment	10.6 gal (US) / 40 l
Hydraulic Tank	19.8 gal (US) / 75 l
Note	*With oil filter

Blades - 8U
Ground Clearance	48.8 in / 1239 mm
Height	5.7 ft / 1741 mm
Maximum Tilt	39.2 in / 996 mm
Width - Over End Bits	13.9 ft / 4251 mm
Total Operating Weight** - With Blade and Single-Shank Ripper	88300 lb / 40055 kg
Capacity - SAE J1265	15.4 yd³ / 11.8 m³
Note (1)	*Includes blade tilt cylinder.
Weight* - Without Hydraulic Controls	11500 lb / 4895 kg
Note (2)	**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Digging Depth	22.3 in / 567 mm

Blades - 8SU - Version 1
Width - Over End Bits	12.9 in / 3931 mm
Digging Depth	22.6 ft / 574 mm
Total Operating Weight** - With Blade and Single-Shank Ripper	86900 ft / 39420 mm
Height	5.5 in / 1690 mm
Note (1)	*Includes blade tilt cylinder.
Note (2)	**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Maximum Tilt	35.1 lb / 892 kg
Weight* - Without Hydraulic Controls	10100 lb / 4260 kg
Ground Clearance	50.7 in / 1288 mm
Capacity - SAE J1265	11.3 yd³ / 8.6 m³

Blades - 8SU - Version 2
Note (1)	*Includes blade tilt cylinder.
Note (2)	**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Height	5.7 ft / 1750 mm
Total Operating Weight** - With Blade and Single-Shank Ripper	86900 lb / 39420 kg
Digging Depth	22.8 in / 578 mm
Width - Over End Bits	13.3 ft / 4041 mm
Weight* - Without Hydraulic Controls	10557 lb / 4789 kg
Capacity - SAE J1265	13.4 yd³ / 10.3 m³
Maximum Tilt	36 in / 915 mm
Ground Clearance	48.7 in / 1236 mm

Blades - 8A
Capacity - SAE J1265	6.8 yd³ / 5.2 m³
Width - Over End Bits	16.6 ft / 5045 mm
Digging Depth	24.6 in / 625 mm
Note (2)	**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Height	3.9 ft / 1177 mm
Total Operating Weight** - With Blade and Single-Shank Ripper	88700 lb / 40281 kg
Ground Clearance	52.1 in / 1323 mm
Weight* - Without Hydraulic Controls	11900 lb / 5121 kg
Note (1)	*Includes blade tilt cylinder.
Maximum Tilt	28.9 in / 733 mm

Winches
Winch Model	PA 140OVS
Weight*	3947 lb / 1790 kg
Oil Capacity	4 gal (US) / 15 l
Increased Tractor Length	22.2 in / 563 mm
Winch Case - Width	45.6 in / 1160 mm
Drum Width	12.6 in / 320 mm
Flange Diameter	18 in / 457 mm
Recommended Cable Size	1.13 in / 29 mm
Drum Capacity - Optional Cable	193 ft / 59 m
Note (1)	*Weight: Includes pump and operator controls.
Cable Ferrule Size - Length	2.76 in / 70 mm
Cable Ferrule Size - Outside Diameter	2.36 in / 60 mm
Winch Length	56.3 in / 1430 mm
Optimal Cable Size	1.25 in / 32 mm
Drum Capacity - Recommended Cable Size	276 ft / 84 m
Note (2)	Variable speed, hydraulically driven, dual braking system, three roller fairlead.

Ripper - Multi-Shank, Adjustable Parallelogram
Number of Pockets	3
Weight - With One Shank	8681 lb / 3946 kg
Pry-Out Force - Multi-Shank Ripper with One Tooth	51230 lb / 222.9 kN
Overall Beam Width	97 in / 2464 mm
Maximum Penetration Force - Shank Vertical	27920 lb / 124.2 kN
Weight - Each Additional Shank	732 lb / 332 kg
Maximum Penetration - Standard Tip	30.7 in / 780 mm
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	23.35 in / 593 mm
Note	*Total Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel. ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Total Operating Weight* - With SU-Blade and Ripper	86876 lb / 39409 kg

Ripper - Single-Shank, Adjustable Parallelogram
Note	*Total Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel. ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Weight* - Without Hydraulic Controls	8705 lb / 3957 kN
Pry-Out Force	50070 in / 222.7 mm
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	25 in / 636 mm
Number of Pockets	1
Total Operating Weight* - With SU-Blade and Ripper	86900 lb / 39420 kg
Maximum Penetration - Standard Tip	44.4 lb / 1130 kN
Maximum Penetration Force - Shank Vertical	28620 lb / 127.3 kN

Standards
FOPS	Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 Level II.
ROPS	Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.
Brakes	Crawler Machine Brake Requirements meets the following criteria: ISO 10265:2008.
Note (1)	The declared dynamic operator sound pressure level is 76 dB(A) when “ISO 6396:2008” is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (5)	The declared exterior sound power level is 113 dB(A) when the value is measured according to the dynamic test procedures and the conditions that are specified in “ISO 6395:2008.” The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)	Sound Level Information for Machines in European Union Countries and in Countries that Adopt the “European Union Directives” – The information below applies to only the machine configurations that have the “CE” mark on the Product Identification Plate.
Note (4)	The declared dynamic operator sound pressure level is 75 dB(A) when “ISO 6396:2008” is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when the machine is operated with an open operator station for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors and windows are open for extended periods.

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes.

Blades
8SU - Capacity - SAE J1265	13.4 yd³ / 10.3 m³
8SU - Width - Over End Bits	13.3 ft / 4042 mm
8U - Capacity - SAE J1265	15.4 yd³ / 11.8 m³
8U - Width - Over End Bits	14 ft / 4265 mm
8A - Capacity - SAE J1265	6.8 yd³ / 5.2 m³
8SU LGP - Capacity - SAE J1265	12.9 yd³ / 9.9 m³
8SU LGP - Width - Over End Bits	14.9 ft / 4543 mm
8A - Width - Over End Bits	16.5 ft / 5043 mm

Weights - Waste Handler
Operating Weight - Standard	87400 lb / 39650 kg
Operating Weight - LGP	92300 lb / 41850 kg
Shipping Weight - Standard	73400 lb / 33324 kg
Note (3)	Shipping Weight – Standard: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, striker box, and 610 mm (24 in) MS shoes.
Shipping Weight - LGP	77900 lb / 35367 kg
Note (1)	Operating Weight – Standard: Includes hydraulic controls, blade, tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, Waste SU-Blade, striker box, 610 mm (24 in) MS shoes, and operator.
Note (2)	Operating Weight – LGP: Includes hydraulic controls, blade, tilt cylinder, drawbar, coolant, lubricants, 100% fuel, ROPS, FOPS cab, Waste SU-Blade, 965 mm (38 in) MS shoes, striker box, and operator.
Note (4)	Shipping Weight – LGP: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, striker box, and 965 mm (38 in) MS shoes.

Dimensions - Standard
Width - Tractor - Without Trunnions - Standard Shoes	106 in / 2693 mm
Machine Height - ROPS/FOPS Cab	140.4 in / 3566 mm
Ground Clearance	24.1 in / 613 mm
Length - Track on Ground	126.2 in / 3206 mm
Overall Length - Basic Tractor	183 in / 4647 mm
Ground Pressure (ISO 16754)	13 psi / 89.6 kPa

Blades - 8 SU LGP Landfill
Digging Depth	20.2 in / 513 mm
Width - Over End Bits	14.9 ft / 4531 mm
Height	7.9 ft / 2421 mm
Ground Clearance	51.5 in / 1308 mm
Total Operating Weight** - With Blade and Single-Shank Ripper	83635 lb / 37467 kg
Capacity - SAE J1265	28.9 yd³ / 22.1 m³
Maximum Tilt	35.7 in / 908 mm
Weight* - Without Hydraulic Controls	7734 lb / 3508 kg
Note (2)	**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Note (1)	*Includes blade tilt cylinder.

Blades - 8U Landfill
Maximum Tilt	39.2 in / 996 mm
Capacity - SAE J1265	27.7 yd³ / 21.2 m³
Digging Depth	22.3 in / 567 mm
Total Operating Weight** - With Blade and Single-Shank Ripper	90383 lb / 41000 kg
Ground Clearance	48.8 in / 1239 mm
Weight* - Without Hydraulic Controls	9450 lb / 4287 kg
Height	8.3 ft / 2530 mm
Width - Over End Bits	13.9 ft / 4251 mm
Note (1)	*Includes blade tilt cylinder.
Note (2)	**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.

Blades - 8 SU Landfill
Total Operating Weight** - With Blade and Single-Shank Ripper	88800 lb / 40282 kg
Digging Depth	22.6 in / 574 mm
Height	8.1 ft / 2467 mm
Width - Over End Bits	12.9 ft / 3931 mm
Maximum Tilt	35.1 in / 892 mm
Weight* - Without Hydraulic Controls	7867 lb / 3569 kg
Capacity - SAE J1265	25.6 yd³ / 19.6 m³
Note (2)	**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Ground Clearance	50.7 in / 1288 mm
Note (1)	*Includes blade tilt cylinder.

Blades - 8SU LGP
Note (1)	*Includes blade tilt cylinder.
Digging Depth	20.2 in / 513 mm
Weight* - Without Hydraulic Controls	11150 lb / 4703 kg
Capacity - SAE J1265	12.9 yd³ / 9.9 m³
Ground Clearance	51.5 in / 1308 mm
Height	5.3 ft / 1622 mm
Note (2)	**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.
Width - Over End Bits	14.9 ft / 4531 mm
Maximum Tilt	35.7 in / 908 mm
Total Operating Weight** - With Blade and Single-Shank Ripper	82496 lb / 36950 kg

Dimensions - Non-Suspended
Length - Track on Ground	128.3 in / 3258 mm
Width - Tractor - Without Trunnions - Standard Shoes	106 in / 2693 mm
Machine Height - ROPS/FOPS Cab	140.7 in / 3575 mm
Overall Length - Basic Tractor	183 in / 4647 mm
Ground Pressure (ISO 16754)	13 psi / 89.6 kPa
Ground Clearance	23.8 in / 606 mm

Dimensions - LGP
Length - Track on Ground	126.2 in / 3206 mm
Overall Length - Basic Tractor	183 in / 4647 mm
Ground Clearance	2401 in / 613 mm
Width - Tractor - Without Trunnions - Standard Shoes	130 in / 3302 mm
Machine Height - ROPS/FOPS Cab	140.4 in / 3566 mm
Ground Pressure (ISO 16754)	7.7 psi / 53.3 kPa

Dimensions
Note (1)	Add the following measurements for attachments: Ripper (single shank) 1519 mm/59.8 in; Ripper (multi-shank) 1613 mm/63.5 in; Drawbar 406 mm/16.0 in; SU Blade 1844 mm/72.6 in; U Blade 2241 mm/88.2 in; A Blade (not angled) 2027 mm/79.8 in; A Blade (angled 25 degrees) 3068 mm/120.8 in.
Note (2)	When Cat Grade Control 3D antennas are installed, overall machine height increases by approximately 82 mm/3.2 in.
