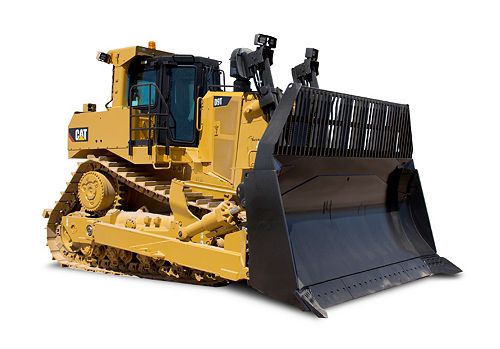

D9T WH

Heavy Equipment

D9T WH

Flywheel Power
436 HP / 325 kW
Operating Weight
110471 lb / 50109 kg
Net SAE J1349/ISO 9249 - Tier 2/Stage II Equivalent (Serial Number Prefix: TWG)
410 HP / 306 kW

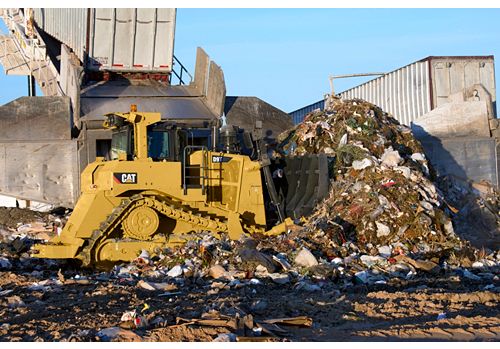

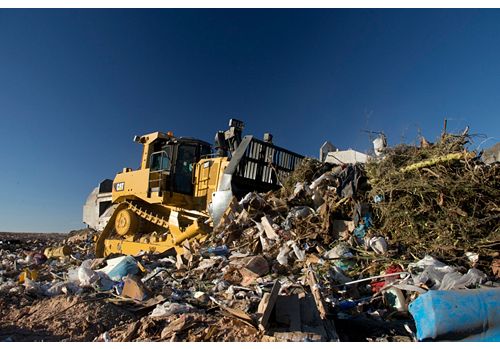

Factory installed guarding and debris-resistant features help protect vital machine components to maximize service life and uptime. Its versatility makes the D9T Waste Handler a powerful and highly maneuverable machine for dozing and compacting waste, as well as an ideal fine grading machine to place just the right depth of cover material.

Engine
Engine Model Cat® C18 ACERT™
Flywheel Power 436 HP / 325 kW
Global Emissions U.S. EPA Tier 4 Final/EU Stage IV; Tier 2/Stage II Equivalent; Tier 3/Stage IIIA Equivalent
Net SAE J1349/ISO 9249 - Tier 2/Stage II Equivalent (Serial Number Prefix: TWG) 410 HP / 306 kW
Net SAE J1349/ISO 9249 - Tier 3/Stage IIIA Equivalent (Serial Number Prefix: TWG) 410 HP / 306 kW
Net SAE J1349/ISO 9249 - Tier 4 Final/Stage IV (Serial Number Prefix: REX) 436 HP / 325 kW
Operating Weights
Serial Number Prefix: REX 110471 lb / 50109 kg
Serial Number Prefix: TWG 109705 lb / 49761 kg
Weights
Operating Weight 110471 lb / 50109 kg
Blades with Trash Rack - 9SU
Capacity 37.6 yd³ / 28.8 m³
Height 9.3 ft / 2834 mm
Note (1) **Including standard end bits.
Note (2) ***Weight includes: trash rack, edges and end bits.
Weight*** 11499 lb / 5216 kg
Width** 14.3 ft / 4354 mm
Blades with Trash Rack - 9U
Capacity 43.8 yd³ / 33.5 m³
Height 9.3 ft / 2827 mm
Note (1) **Including standard end bits.
Note (2) ***Weight includes: trash rack, edges and end bits.
Weight*** 12974 lb / 5885 kg
Width** 15.4 ft / 4686 mm
Blades with Trash Rack - 9U*
Capacity 50.8 yd³ / 38.8 m³
Height 9.1 ft / 2759 mm
Note (1) *Available through Cat Work Tools.
Note (2) **Including standard end bits.
Note (3) ***Weight includes: trash rack, edges and end bits.
Weight*** 10756 lb / 4879 kg
Width** 18.1 ft / 5522 mm
D9T WH (Serial Prefix: REX)
Bore 5.7 in / 145 mm
DEF Tank Capacity 9.5 gal (US) / 36 l
Displacement 1106 in³ / 18.1 l
Engine Emission Standards Tier 4 Final/Stage IV
Engine Model C18 ACERT
Fuel Tank Refill Capacity 217 gal (US) / 821 l
General Dimensions - Ground Clearance 1.9 ft / 596 mm
General Dimensions - Height - Stripped Top 12.1 ft / 3.69 m
General Dimensions - Height - To Top of ROPS Cab 12.5 ft / 3.82 m
General Dimensions - Height - To Top of ROPS Canopy 13.1 ft / 4 m
General Dimensions - Overall Length - SU Landfill Blade 22.5 ft / 6.86 m
General Dimensions - Overall Length - Without Blade and Without Drawbar 16.1 ft / 4.91 m
General Dimensions - Width - Over Trunnion 10.8 ft / 3.3 m
General Dimensions - Width - Without Trunnion - Standard Shoe 9.4 ft / 2.88 m
Ground Contact Area - With Standard Shoes 6569 in² / 4.24 m²
Length - Track on Ground 11.4 ft / 3.47 m
Net Power - SAE J1349/ISO 9249 436 HP / 325 kW
Number of Cylinders 6
Operating Weight 110471 lb / 50109 kg
Rated Engine RPM 1800 r/min
Stroke 7.2 in / 183 mm
Track Gauge 7.4 ft / 2.25 m
Track Rollers - Each Side 8
Width - Standard Track - Shoe 2 ft / 610 mm
D9T WH (Serial Prefix: TWG)
Bore 5.7 in / 145 mm
DEF Tank Capacity N/A
Displacement 1106 in³ / 18.1 l
Engine Emission Standards Tier 2/Stage II Equivalent; Tier 3/Stage IIIA Equivalent
Engine Model C18 ACERT
Fuel Tank Refill Capacity 235 gal (US) / 889 l
General Dimensions - Ground Clearance 1.9 ft / 596 mm
General Dimensions - Height - Stripped Top 12.1 ft / 3.69 m
General Dimensions - Height - To Top of ROPS Cab 12.5 ft / 3.82 m
General Dimensions - Height - To Top of ROPS Canopy 13.1 ft / 4 m
General Dimensions - Overall Length - SU Landfill Blade 22.5 ft / 6.86 m
General Dimensions - Overall Length - Without Blade and Without Drawbar 16.1 ft / 4.91 m
General Dimensions - Width - Over Trunnion 10.8 ft / 3.3 m
General Dimensions - Width - Without Trunnion - Standard Shoe 9.4 ft / 2.88 m
Ground Contact Area - With Standard Shoes 6569 in² / 4.24 m²
Length - Track on Ground 11.4 ft / 3.47 m
Net Power - SAE J1349/ISO 9249 410 HP / 306 kW
Number of Cylinders 6
Operating Weight 109705 lb / 49761 kg
Rated Engine RPM 1833 r/min
Stroke 7.2 in / 183 mm
Track Gauge 7.4 ft / 2.25 m
Track Rollers - Each Side 8
Width - Standard Track - Shoe 2 ft / 610 mm
Hydraulic Controls
Lift Cylinder Relief Valve Setting 3800 psi / 26200 kPa
Pump Output - Implement 60 gal/min / 226 l/min
Pump Output - Steering 102 gal/min / 387 l/min
Pump Type Piston-type pump geared from flywheel
Ripper - Lift - Relief Valve Setting 3800 psi / 26200 kPa
Ripper - Pitch - Relief Valve Setting 3800 psi / 26200 kPa
Steering System - Pressure 5875 psi / 40500 kPa
Tank Capacity 23.5 gal (US) / 89 l
Tilt Cylinder Flow - Head End Flow 50 gal/min / 188 l/min
Tilt Cylinder Flow - Rod End Flow 37 gal/min / 140 l/min
Tilt Cylinder Relief Valve Setting 2800 psi / 19300 kPa
Transmission
1 Forward 2.4 mile/h / 3.9 km/h
1 Forward - Drawbar Pull (1000) 161 lbf / 716.5 N
1 Reverse 2.9 mile/h / 4.7 km/h
2 Forward 4.2 mile/h / 6.8 km/h
2 Forward - Drawbar Pull (1000) 90 lbf / 400.5 N
2 Reverse 5.2 mile/h / 8.4 km/h
3 Forward 7.3 mile/h / 11.7 km/h
3 Forward - Drawbar Pull (1000) 50 lbf / 222.5 N
3 Reverse 8.9 mile/h / 14.3 km/h
