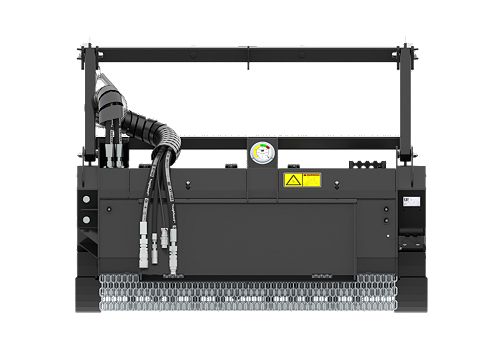

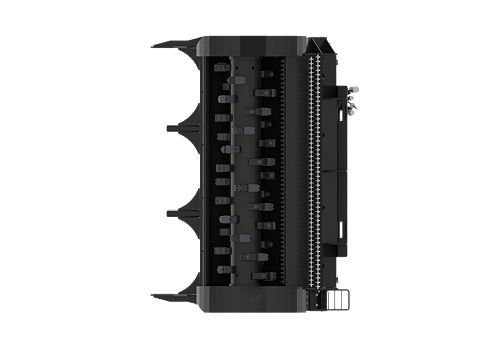

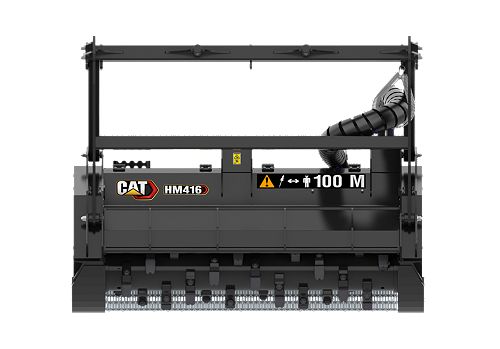

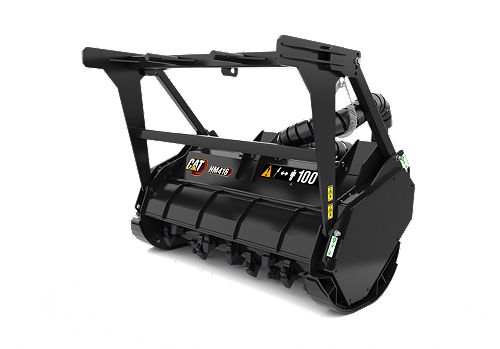

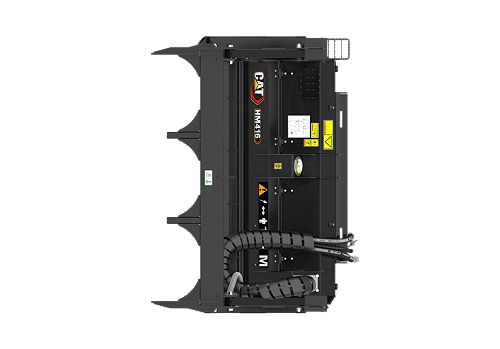

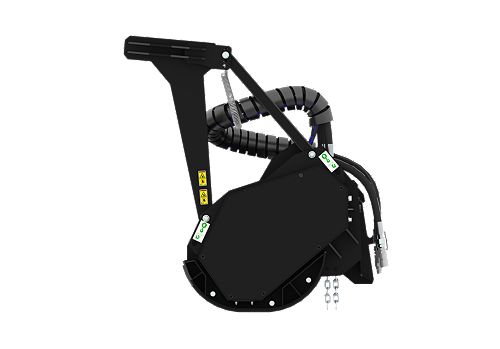

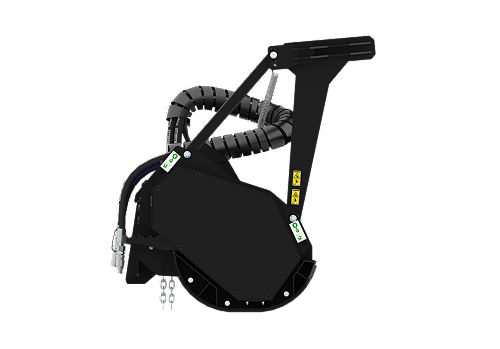

HM416

Overall Width: 74.1 in / 1882 mm
Working Width: 58.6 in / 1488 mm
Length: 53.3 in / 1355 mm

High-performance cutting and mulching of vegetation and overgrowth.

Specifications
Related Products

Product Specifications
Overall Width	74.1 in / 1882 mm
Working Width	58.6 in / 1488 mm
Length	53.3 in / 1355 mm
Overall Height	58.3 in / 1481 mm
Weight	2960.8 lb / 1343 kg
Drive Method	Polychain Belt
Motor	Axial Piston Dual Speed
Required Hydraulics	XHP / XE
Optimal Hydraulic Flow	135-155 L/min (36-41 gpm)
Optimal Hydraulic Pressure	200-350 bar (2900-5077 psi)
Drum Speed	1900-2200 RPM
Fixed Teeth per Drum	34
Maximum Cutting Diameter	7.9 in / 200 mm
Maximum Cutting Depth	4.1 in / 105 mm

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model	Gross Power - SAE J1995	Rated Operating Capacity	Operating Weight
272D3 XE	110 hp / 82 kW	3700 lb / 1680 kg	9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model	Gross Power - SAE J1995	Rated Operating Capacities - 35% Tipping Load	Operating Weight
299D3 XE	110 hp / 82 kW	3560 lb / 1620 kg	11756 lb / 5333 kg
299D3 XE Land Management	110 hp / 82 kW	4340 lb / 1975 kg	12764 lb / 5790 kg
