285 XE

Gross Power - SAE J1995:2014: 121 hp / 91 kW
Rated Operating Capacities - 35% Tipping Load: 4520 lb / 2050 kg
Operating Weight: 13669 lb / 6200 kg

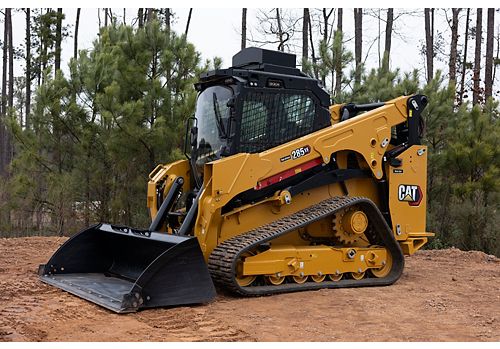

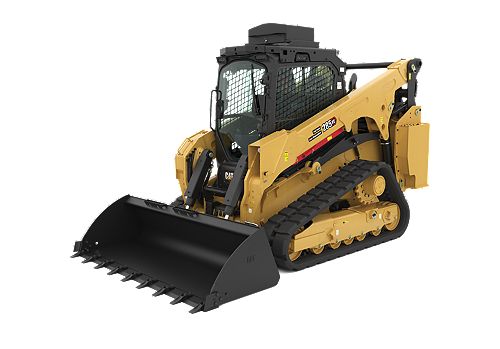

The Cat® 285 XE Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.

Loan Calculator Credit Application

Build & Quote

285 XE Product Brochure Options and Accessories Kit Guide for Skid Steer and Compact Track Loaders Cat Attachments for 250/260/270 Skid Steer Loaders and 255/265/275/285 Compact Track Loaders Brochure

Specifications
Equipment
Related Products

Engine
Gross Power - SAE J1995:2014	121 hp / 91 kW
Bore	4.7 in / 120 mm
Displacement	220 in² / 3.6 l
Net Power - ISO 9249	120 hp / 89 kW
Net Power - SAE 1349	121 hp / 90 kW
Peak Torque - 1,500 rpm - SAE J1995	406 lb/ft / 551 N·m
Engine Model	Cat???????® C3.6 TA (turbocharged after-cooled)
Note	Maximum Gross Power ISO 14396:2002 (at 2200 RPM) – with High Flow Attachment connected: 100 kW (134.1 hp)
Stroke	3.9 in / 98 mm

Hydraulic System
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	80.7 hp / 60.2 kW
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	34 gpm / 129 L/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	4061 psi / 28000 kPa
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	46.4 hp / 34.6 kW
Hydraulic Flow - Standard - Loader Hydraulic Flow	23 gpm / 86 L/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3500 psi / 24130 kPa
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure	4496 klb/in² / 31000 kPa
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*	40 gpm / 150 L/min
Hydraulic Flow - XE - Hydraulic Power (calculated)	103.9 hp / 77.5 kW

Weights*
Operating Weight	13669 lb / 6200 kg
Counterweight Adds to Operating Weight	428 lb / 194 kg
Counterweight Adds to Operating Weight - ROC (35%)	296 lb / 134 kg
Counterweight Adds to Operating Weight - Tip Load	847 lb / 384 kg
Note	*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).

Service Refill Capacities
Cooling System	4.6 gal (US) / 17.5 l
Engine Crankcase	2.4 gal (US) / 9 l
Fuel Tank	36 gal (US) / 136.1 l
Hydraulic System	10.8 gal (US) / 41 l
Hydraulic Tank	6.9 gal (US) / 26 l
Diesel Exhaust Fluid (DEF) Tank	2.9 gal (US) / 11 l

Operating Specifications
Rated Operating Capacities - 35% Tipping Load	4520 lb / 2050 kg
Breakout Force - Lift Cylinder	8730 lb / 3960 kg
Breakout Force - Tilt Cylinder	13920 lb / 6314 kg
Ground Contact Area - With 450 mm/17.7 in Track	2724 in² / 1.76 m²
Ground Pressure - With 450 mm/17.7 in Track	5 psi / 34.7 kPa
Rated Operating Capacities - 50% Tipping Load	6457 lb / 2929 kg
Tipping Load	12915 lb / 5868 kg
Ground Pressure - With 400 mm/15.7 in Track	5.6 psi / 38.9 kPa

Dimensions
Bucket Pin Height - Carry Position	8.2 in / 209 mm
Bucket Pin Height - Maximum Lift	146.6 in / 3724 mm
Bucket Pin Reach - Maximum Lift	16.3 in / 413 mm
Clearance at Maximum Lift and Dump	119.6 in / 3039 mm
Departure Angle	26°
Ground Clearance	11 in / 280 mm
Height - Top of Cab	87.8 in / 2230 mm
Length - Track on Ground	72 in / 1830 mm
Length - With Bucket on Ground	157.4 in / 3998 mm
Length - Without Bucket	132.3 in / 3360 mm
Maximum Overall Height	178 in / 4520 mm
Maximum Reach - With Arms Parallel to Ground	50.6 in / 1285 mm
Overall Length - Track	85.8 in / 2170 mm
Rack Back Angle - Maximum Height	89°
Reach at Maximum Lift/Dump	34.7 in / 882 mm
Roll Back Angle	27.2°
Turning Radius from Center - Bucket (racked)	94.5 in / 2400 mm
Turning Radius from Center - Coupler	62.1 in / 1578 mm
Turning Radius from Center - Machine Rear	74.3 in / 1887 mm
Vehicle Width (450 mm/17.7 in tracks)	81.8 in / 2078 mm
Maximum Dump Angle	40.5°

Cab
FOPS	ISO 3449:2005 Level I
ROPS	ISO 3471:2008
FOPS Level II	ISO 3449:2005 Level II (Optional)

Power Train
Travel Speed - Forward or Reverse - One Speed	4.8 mile/h / 7.8 km/h
Travel Speed - Forward or Reverse - Two Speed	7.7 mile/h / 12.4 km/h

Standard Equipment

STANDARD EQUIPMENT
- Quick Coupler: Manual or Hydraulic
- High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
- Steel Imbed Rubber Track – 400 mm (15.7 in) block tread, 450 mm (17.7 in) bar tread, 450 mm (17.7 in) block tread
- Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
PERFORMANCE PACKAGES
- Performance Package HP5: XE Hydraulics
- Performance Package HP6: XE Hydraulics, Rear Auxiliary Ready
COMFORT PACKAGES
- Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)
TECHNOLOGY PACKAGES
- T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
- T5 – T4 + 2 additional side view cameras.
RADIO
- Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
- Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
- Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
PRODUCT LINK™
- Product Link™ Basic series PL243
- Product Link Elite series PLE643
COOLING FAN
- On-demand, variable speed hydraulic cooling fan
- On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation
GUARDING AND SEALING PACKAGES
- HD1– intermediate guarding and sealing† (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding.) †Some equipment varies by region.
- LM1 – intermediate level land management guarding and sealing† (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF)/ Emission component wraps, light guarding, quick disconnect guarding, hydraulic lines guard cover (under step), screw-to-connect auxiliary hydraulic couplings, and engine air inlet pre-cleaner.) †Some equipment varies by region.
- LM2 – most comprehensive land management guarding and sealing† (HD1 + increased fuel capacity (220 L/58 gal), turbo guard, exhaust stack wrap, DPF/Emission component wraps, light guarding, quick disconnect guarding, hydraulic lines guard cover (under step), screw-to-connect auxiliary hydraulic couplings, and engine air inlet pre-cleaner.) †Some equipment varies by region.
ELECTRICAL
- Work Tool Electrical Harness
- Heavy duty battery
- Battery disconnect with lockout feature
- 12-volt Electrical System
- 100 Ampere Alternator
- LED Work Lights
- Auto Reverse Lights
- Switch Backlighting
- Interior LED Dome Light
- Backup Alarm
- Electrical Outlet, Beacon
- Exterior Courtesy Lighting

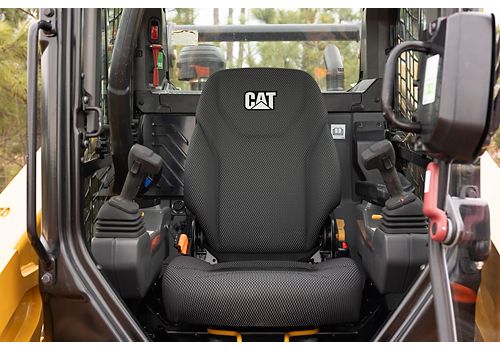

OPERATOR ENVIRONMENT
- Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (× 32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
- Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake engages
- ROPS Cab, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Headliner
- Interior Rearview Mirror
- Horn
- Hand (Dial) Throttle, Electronic
- Seat Mounted Joystick Controls
- Cell Phone Storage Pocket
- Cup Holder
- 12-volt power port
- Foot Throttle
HYDRAULICS
- Selectable control pattern – ISO or H
- Electro/hydraulic implement control
- Electro/hydraulic hydrostatic transmission control
- Speed sensor guarding
- Heavy duty flat faced quick disconnects with integrated pressure release lever and case drain
- Hydraulic oil level sight gauge
POWER TRAIN
- Cat C3.6TA turbocharged, after-cooled diesel engine, meeting Tier 4 Final and Stage V Emission Standards: • Glow plugs starting aid • Liquid cooled, direct injection
- Extended life antifreeze (–37° C, –34° F)
- Air cleaner, dual element, radial seal
- Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil
- Ecology drain – coolant
- Radiator coolant level sight gauge
- Radiator expansion bottle
- Filter, hydraulic supply, cartridge type
- Filter, hydraulic return, cartridge type
- Filter, canister type, engine oil
- Filter, canister type, fuel and water separator
- Radiator/hydraulic oil
- Cooler (side-by-side)
- Spring applied, hydraulically released, parking brakes
- Hydrostatic transmission
- Lockable fuel cap
- Hydraulic demand cooling fan
- Auto engine idle
UNDERCARRIAGE
- E-bar (equalizer bar) suspension
- Two speed travel
- Integrated tie downs on track frame (4)
FRAME
- Machine tie down points (9)
- Removable panels for machine frame cleanout
- Support, lift arm
- Steel rear and front bumpers, welded
- Fuel fill, machine right hand side
OTHER
- Auxiliary Hydraulics, Continuous Flow
- Telematics, Product Link, Cellular
- Steel engine door with replaceable louvers
- Engine door – lockable
- Work tool attachment coupler
- Cat ToughGuardTM hose

Optional Equipment

OPTIONAL EQUIPMENT
- External Counterweights
- Beacon, LED
- Oil, Hydraulic, Cold Operation
- 4-point machine lifting eyes
- Paint, Custom
- Speed Sensitive Ride Control
- Bluetooth Key Security
- Attachment Hose Guide
- Corrosion Inhibitor Coating

Bale Spears

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Model	Overall Width	Overall Height	Capacity
890 mm (35 in), Single Tine	50.6 in / 1285 mm	22.4 in / 570 mm	2004 lb / 909 kg
890 mm (35 in), Dual Tine	55.4 in / 1407 mm	51.8 in / 1315 mm	3007.1 lb / 1364 kg
1140 mm (45 in), Single Tine	50.6 in / 1285 mm	22.4 in / 570 mm	2004 lb / 909 kg
1140 mm (45 in), Dual Tine	55.4 in / 1407 mm	51.8 in / 1315 mm	3007.1 lb / 1364 kg

Material Handling Buckets

Used to load and carry large volumes of ultra-low density material in a variety of applications.

Model	Width	Capacity	Weight
2185 mm (86 in), Bolt-On Cutting Edge	86 in / 2185 mm	1.4 yd³ / 1.07 m³	805 lb / 365 kg
2490 mm (98 in), Bolt-On Cutting Edge	98 in / 2490 mm	1.63 yd³ / 1.25 m³	882 lb / 400 kg
2642 mm (104 in), Bolt-On Cutting Edge	104 in / 2642 mm	1.74 yd³ / 1.33 m³	922 lb / 418 kg

Mixing Buckets

Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

Model	Capacity	Width	Required Hydraulics
MB200	0.26 yd³ / 0.2 m³	54.6 in / 1386 mm	Standard Flow
MB250	0.33 yd³ / 0.25 m³	54.7 in / 1390 mm	Standard Flow

Box Blades

Cat® Box Blades are designed for grading and leveling. Each model is designed to operate both manually and automatically with the use of Laser or GPS grading systems.

Model	Overall Width	Working Width	Optimal Hydraulic Flow
BB121	87.4 in / 2221 mm	83.9 in / 2131 mm	30-85 L/min (8-22 gpm)
BB124	99.4 in / 2526 mm	95.9 in / 2436 mm	30-85 L/min (8-22 gpm)

Power Box Rakes

Designed for clearing and preparing soil in landscape finishing applications.

Model	Roller Width	Overall Width	Maximum Angle - Right or Left
PR118 Hydraulic Angle	72 in / 1829 mm	81 in / 2057 mm	20 degrees
PR118 Manual Angle	72 in / 1829 mm	81 in / 2057 mm	20 degrees
PR121 Hydraulic Angle	84 in / 2134 mm	93 in / 2362 mm	20 degrees
PR121 Manual Angle	84 in / 2134 mm	93 in / 2362 mm	20 degrees
PR123 Hydraulic Angle	90 in / 2286 mm	99 in / 2515 mm	20 degrees

Brushcutters

Brushcutters are used to clear land and overgrowth.

Model	Overall Width	Cutting Width	Maximum Cutting Diameter
BR117	68 in / 1727 mm	66 in / 1676 mm	3 in / 76 mm
BR118	74 in / 1880 mm	72 in / 1829 mm	3 in / 76 mm
BR120	79.7 in / 2025 mm	78 in / 1981 mm	3 in / 76 mm
BR318	74 in / 1880 mm	72 in / 1829 mm	3 in / 76 mm
BR320	79.7 in / 2025 mm	78 in / 1981 mm	3 in / 76 mm

Industrial Grapple Forks

Cat® Industrial Grapple Forks are designed to handle a wide array of materials in tough operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1676 mm (66 in)	66 in / 1676 mm	31.9 in / 810 mm	38 in / 965 mm
1829 mm (72 in)	72 in / 1829 mm	32 in / 814 mm	38 in / 965 mm

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A23, Skid Steer Coupler	1699.3 lb/ft / 2304 N·m	Gerotor Motor - Direct Drive	Skid Steer Loader Coupler
A41, Skid Steer Coupler	3037.3 lb/ft / 4118 N·m	Gerotor Motor - Single Planetary Reduction	Skid Steer Loader Coupler
A68, Skid Steer Coupler	5034.6 lb/ft / 6826 N·m	Gerotor Motor - Double Planetary Drive	Skid Steer Loader Coupler

Landscape Tillers

Hardened tines break up and mix soil in a variety of applications.

Model	Working Width	Working Depth	Weight
LT114	53.3 in / 1354 mm	25-152 mm (1-6 in)	925.9 lb / 420 kg
LT118	72.8 in / 1848 mm	25-152 mm (1-6 in)	925.9 lb / 420 kg

Landscape Rakes

Cat® Landscape Rakes are used for scarifying the soil and collecting debris for easy removal.

Model	Working Width	Bucket Capacity - Struck	Weight
LR116	62 in / 1576 mm	0.4 yd³ / 0.31 m³	1311.7 lb / 595 kg
LR119	74.1 in / 1883 mm	0.4 yd³ / 0.34 m³	1439.6 lb / 653 kg

Trenchers

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Model	Standard Boom Length
T109 Hydraulic Side Shift, Terminator Chain	36 in / 914 mm
T109 Hydraulic Side Shift, Combo Chain	36 in / 914 mm
T109 Hydraulic Side Shift, Rock-Frost Chain	36 in / 914 mm
T109 Hydraulic Side Shift, Standard Chain	36 in / 914 mm
T109 Hydraulic Side Shift, No Chain	36 in / 914 mm
T109 Hydraulic Side Shift, Standard Chain	36 in / 914 mm
T109 Manual Side Shift, Combo Chain	36 in / 914 mm
T109 Manual Side Shift, Terminator Chain	36 in / 914 mm
T109 Manual Side Shift, Rock-Frost Chain	36 in / 914 mm
T109 Manual Side Shift, Standard Chain	36 in / 914 mm
T109 Manual Side Shift, No Chain	36 in / 914 mm
T109 Manual Side Shift, Standard Chain	36 in / 914 mm
T112 Hydraulic Side Shift, Standard Chain	48 in / 1219 mm
T112 Hydraulic Side Shift, Rock-Frost Chain	48 in / 1219 mm
T112 Hydraulic Side Shift, Combo Chain	48 in / 1219 mm
T112 Hydraulic Side Shift, No Chain	48 in / 1219 mm
T112 Hydraulic Side Shift, Standard Chain	48 in / 1219 mm
T112 Manual Side Shift, No Chain	48 in / 1219 mm
T112 Manual Side Shift, Combo Chain	48 in / 1219 mm
T112 Manual Side Shift, Standard Chain	48 in / 1219 mm
T112 Manual Side Shift, Rock-Frost Chain	48 in / 1219 mm
T315 Hydraulic Side Shift, Standard Chain	60 in / 1524 mm
T315 Hydraulic Side Shift, Standard Chain	60 in / 1524 mm
T315 Hydraulic Side Shift, No Chain	60 in / 1524 mm
T315 Hydraulic Side Shift, Combo Chain	60 in / 1524 mm

Vibratory Drum Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Drum Width	Weight	Required Hydraulics
CV117	66 in / 1676 mm	2063.5 lb / 936 kg	Standard Flow
CV119	73 in / 1854 mm	2138.5 lb / 970 kg	Standard Flow

Utility Buckets

Designed with a taller back height and longer floor length for lower density materials.

Model	Width	Capacity	Weight
1576 mm (62 in), Bolt-On Cutting Edge	62 in / 1576 mm	0.56 yd³ / 0.43 m³	529 lb / 240 kg
1730 mm (68 in), Bolt-On Cutting Edge	68.1 in / 1730 mm	0.63 yd³ / 0.48 m³	569 lb / 258 kg
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	0.68 yd³ / 0.52 m³	609 lb / 276 kg
1576 mm (62 in), Base Edge	62 in / 1576 mm	0.56 yd³ / 0.43 m³	463 lb / 210 kg
1730 mm (68 in), Base Edge	68.1 in / 1730 mm	0.63 yd³ / 0.48 m³	496 lb / 225 kg
1883 mm (74 in), Base Edge	74.1 in / 1883 mm	0.68 yd³ / 0.52 m³	526.9 lb / 239 kg

Light Material Buckets

High volume bucket designed for handling light material like snow, grain, fertilizer, or mulch.

Model	Width	Capacity	Weight
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	0.9 yd³ / 0.69 m³	666 lb / 302 kg
2036 mm (80 in), Bolt-On Cutting Edge	80.2 in / 2036 mm	0.98 yd³ / 0.75 m³	706 lb / 320 kg
2185 mm (86 in), Bolt-On Cutting Edge	86 in / 2185 mm	1.1 yd³ / 0.84 m³	747 lb / 339 kg
2490 mm (98 in), Bolt-On Cutting Edge	98 in / 2490 mm	1.22 yd³ / 0.93 m³	822 lb / 373 kg
1883 mm (74 in), Base Edge	74.1 in / 1883 mm	0.9 yd³ / 0.69 m³	586.4 lb / 266 kg
2036 mm (80 in), Base Edge	80.2 in / 2036 mm	0.98 yd³ / 0.75 m³	619.5 lb / 281 kg

Mulchers

High-performance cutting and mulching of vegetation and overgrowth.

Model	Overall Width	Working Width	Length
HM115	69 in / 1758 mm	58 in / 1480 mm	48 in / 1219 mm
HM316	74 in / 1882 mm	62 in / 1582 mm	53 in / 1355 mm
HM416	74 in / 1882 mm	62 in / 1582 mm	53 in / 1355 mm
HM418	84 in / 2122 mm	72 in / 1822 mm	53 in / 1355 mm

Industrial Grapple Rakes

Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.

Model	Width	Height	Weight
1829 mm (72 in) Straight Tine	72 in / 1829 mm	33 in / 837 mm	1101.9 lb / 499.8 kg

Industrial Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Weight	Height - Grapples Closed
1586 mm (62 in), Bolt-On Cutting Edge	62 in / 1586 mm	1177.3 lb / 534 kg	32.8 in / 833 mm
1740 mm (68 in), Bolt-On Cutting Edge	68 in / 1740 mm	1219.2 lb / 553 kg	32.8 in / 833 mm
1893 mm (74 in), Bolt-On Cutting Edge	74 in / 1893 mm	1263.2 lb / 573 kg	32.8 in / 833 mm

Material Handling Arms

Designed for lifting and placing objects and equipment around the jobsite.

Model	Overall Width	Maximum Load Rating	Maximum Horizontal Reach
Material Handling Arm, Skid Steer Coupler	51.8 in / 1316 mm	1999.6 lb / 907 kg	84 in / 2134 mm

Stump Grinders

Designed to remove stumps in residential, commercial and agricultural settings.

Model	Required Hydraulics	Cutting Wheel Diameter - With Teeth	Cutting Depth - Below Ground
SG36	High Flow XPS	21.5 in / 547 mm	20.5 in / 521 mm

Utility Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1730 mm (68 in)	68.1 in / 1730 mm	29.1 in / 739 mm	35.5 in / 902 mm
1883 mm (74 in)	74.1 in / 1883 mm	29.1 in / 739 mm	35.5 in / 902 mm

Utility Grapple Forks

Cat® Utility Grapple Forks are designed to handle a wide variety of materials in a variety of operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1676 mm (66 in)	66 in / 1676 mm	30.3 in / 770 mm	34.5 in / 876 mm
1829 mm (72 in)	72 in / 1829 mm	30.3 in / 770 mm	34.5 in / 876 mm

Utility Forks

Cat® Utility Forks are designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Height	Weight
1676 mm (66 in)	66 in / 1676 mm	22.9 in / 581 mm	436.5 lb / 198 kg
1829 mm (72 in)	72 in / 1829 mm	22.9 in / 581 mm	485 lb / 220 kg

Angle Blades - Compact Products

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Model	Blade Width	Width - Fully Angled	Maximum Blade Angle - Right/Left of Center
1829 mm (72 in)	72 in / 1829 mm	66.3 in / 1685 mm	30 degrees
2134 mm (84 in)	84 in / 2134 mm	76.7 in / 1949 mm	30 degrees

Nursery Forks

Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.

Model	Overall Length	Overall Width	Weight
Manual Nursery Fork	98.1 in / 2491 mm	52.2 in / 1327 mm	754 lb / 342 kg
Hydraulic Nursery Fork	98.1 in / 2491 mm	52.2 in / 1327 mm	798 lb / 362 kg

Mobile Scrap & Demolition Shears

Cat® Scrap and Demolition Shears are industry leaders in steel processing. Power and performance in a reliable package, backed by the best dealer network in the world.

Model	Tip Force	Rotation	Jaw Opening
S308	43.3 Sh Ton / 385 kN	360 Degrees	9.4 in / 240 mm

Wheel Saws

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Model	Maximum Cutting Depth	Wheel Width	Weight
SW345, 80 mm (3 in)	17.7 in / 450 mm	3.1 in / 80 mm	2482.4 lb / 1126 kg
SW345, 130 mm (5 in)	17.7 in / 450 mm	5.1 in / 130 mm	2239.9 lb / 1016 kg
SW360, 100 mm (4 in)	23.6 in / 600 mm	3.9 in / 100 mm	2943.2 lb / 1335 kg
SW360, 130 mm (5 in)	23.6 in / 600 mm	5.1 in / 130 mm	3009.3 lb / 1365 kg
SW360, 160 mm (6 in)	23.6 in / 600 mm	6.3 in / 160 mm	2899.1 lb / 1315 kg
SW360, 200 mm (8 in)	23.6 in / 600 mm	7.9 in / 200 mm	2921.1 lb / 1325 kg
SW360, 80 mm (3 in)	23.6 in / 600 mm	3.1 in / 80 mm	3174.7 lb / 1440 kg
SW380, 250 mm (10 in)	31.5 in / 800 mm	9.8 in / 250 mm	3196.7 lb / 1450 kg
SW460, 160 mm (6 in)	23.6 in / 600 mm	6.3 in / 160 mm	2899.1 lb / 1315 kg
SW460, 200 mm (8 in)	23.6 in / 600 mm	7.9 in / 200 mm	2921.1 lb / 1325 kg
SW460, 80 mm (3 in)	23.6 in / 600 mm	3.1 in / 80 mm	3174.7 lb / 1440 kg
SW480, 250 mm (10 in)	31.5 in / 800 mm	9.8 in / 250 mm	3196.7 lb / 1450 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP115C	78.3 in / 1990 mm	60 in / 1524 mm	26 in / 660 mm
BP118C	90.4 in / 2295 mm	72 in / 1829 mm	26 in / 660 mm
