275 XE
- Gross Power - SAE J1995
- 122 hp / 91 kW
- Rated Operating Capacities - 35% Tipping Load
- 4205 lb / 1280 kg
- Operating Weight
- 12705 lb / 5763 kg

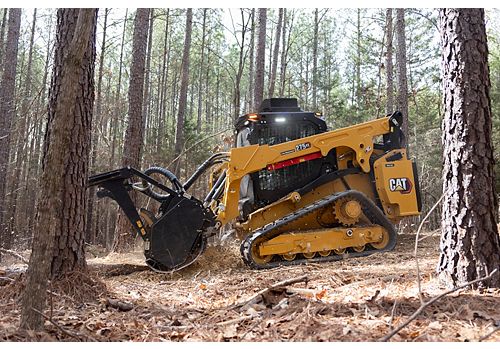

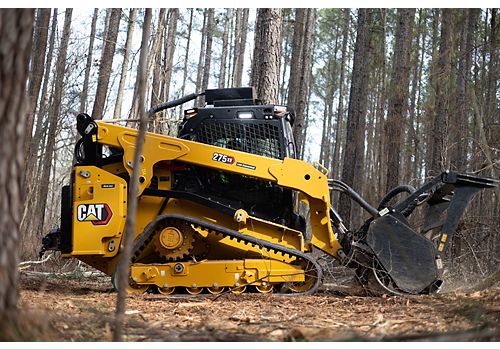

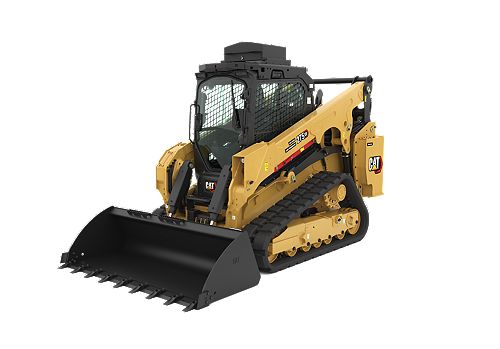

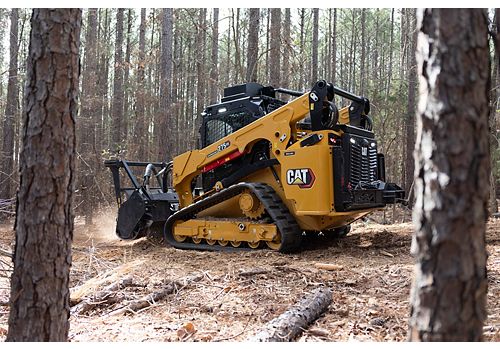

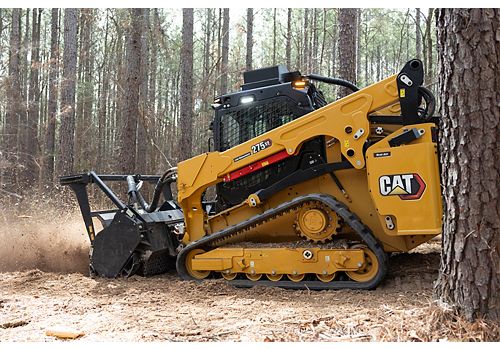

The Cat® 275 XE Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
| Engine | |
|---|---|
| Gross Power - SAE J1995 | 122 hp / 91 kW |
| Bore | 4.7 in / 120 mm |
| Displacement | 221 in² / 3.6 l |
| Net Power - ISO 9249 | 120 hp / 89 kW |
| Net Power - SAE 1349 | 82 hp / 111 kW |
| Peak Torque at 1,360 rpm SAE J1995 | 370 lb/ft / 501 N·m |
| Peak Torque - 1,500 rpm - SAE J1995 | 406 lb/ft / 551 N·m |
| Engine Model | Cat® C3.6 TA (turbocharged after-cooled) |
| Stroke | 3.9 in / 98 mm |
| Hydraulic System | |
|---|---|
| Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure | 4496 psi / 31000 kPa |
| Hydraulic Flow - High Flow - Loader Hydraulic Flow | 34 gal/min / 129 l/min |
| Hydraulic Flow - XE - Maximum Loader Hydraulic Flow* | 40 gal/min / 150 l/min |
| Hydraulic Flow - High Flow - Loader Hydraulic Pressure | 3500 psi / 24130 kPa |
| Hydraulic Flow - XE - Hydraulic Power (calculated) | 103.9 hp / 77.5 kW |
| Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) | 80.7 hp / 60.2 kW |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow | 23 gal/min / 86 l/min |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure | 4061 psi / 2800 kPa |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 46.4 hp / 34.6 kW |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 23 gal/min / 86 l/min |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 3500 psi / 24130 kPa |
| Weights* | |
|---|---|
| Operating Weight | 12705 lb / 5763 kg |
| Counterweight Adds to Operating Weight | 428 lb / 194 kg |
| Counterweight Adds to Operating Weight - ROC (35%) | 279 lb / 126 kg |
| Counterweight Adds to Operating Weight - Tip Load | 796 lb / 361 kg |
| Enclosed Cab Adds to Operating Weight | 218 lb / 99 kg |
| Enclosed Cab Adds to Operating Weight - ROC (35%) | 105 lb / 48 kg |
| Enclosed Cab Adds to Operating Weight - Tip Load | 214 lb / 136 kg |
| Operating Weight - ROC (35%) | 4205 lb / 1908 kg |
| Operating Weight - ROC (50%) | 6008 lb / 2725 kg |
| Operating Weight - Tip Load | 12015 lb / 5450 kg |
| Note | * Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed (variable), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idler, XE (H6) hydraulics with rear auxiliary, enclosed cab with glass door, side windows, heater, air ride suspension seat, advanced monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Service Refill Capacities | |
|---|---|
| Cooling System | 4.6 gal (US) / 17.5 l |
| Engine Crankcase | 2.4 gal (US) / 9 l |
| Fuel Tank | 36.9 gal (US) / 136.1 l |
| Hydraulic System | 10.8 gal (US) / 41 l |
| Hydraulic Tank | 6.9 gal (US) / 26 l |
| Diesel Exhaust Fluid (DEF) Tank | 2.9 gal (US) / 11 l |
| Operating Specifications | |
|---|---|
| Rated Operating Capacities - 35% Tipping Load | 4205 lb / 1280 kg |
| Breakout Force - Lift Cylinder | 6422 lb / 2913 kg |
| Breakout Force - Tilt Cylinder | 9963 lb / 4519 kg |
| Ground Contact Area - With 450 mm/17.7 in Track | 2808 in² / 1.81 m² |
| Ground Pressure - With 450 mm/17.7 in Track | 4.5 psi / 31.3 kPa |
| Rated Operating Capacities - 50% Tipping Load | 4033 lb / 1829 kg |
| Rated Operating Capacity with Optional Counterweight | 2996 lb / 1359 kg |
| Tipping Load | 12015 lb / 5450 kg |
| Dimensions | |
|---|---|
| Bucket Pin Height - Carry Position | 8.1 in / 205 mm |
| Bucket Pin Height - Maximum Lift | 134.4 in / 3415 mm |
| Bucket Pin Reach - Maximum Lift | 16.3 in / 415 mm |
| Clearance at Maximum Lift and Dump | 106.1 in / 2694 mm |
| Departure Angle | 29.5° |
| Ground Clearance | 11 in / 280 mm |
| Height - Top of Cab | 87.8 in / 2230 mm |
| Length - Track on Ground | 72.3 in / 1836 mm |
| Length - With Bucket on Ground | 152.8 in / 3880 mm |
| Length - Without Bucket | 128 in / 3250 mm |
| Maximum Overall Height | 165.1 in / 4193 mm |
| Maximum Reach - With Arms Parallel to Ground | 46.1 in / 1171 mm |
| Overall Length - Track | 92.2 in / 2341 mm |
| Rack Back Angle - Maximum Height | 86.7° |
| Reach at Maximum Lift/Dump | 32 in / 814 mm |
| Roll Back Angle | 27.3° |
| Turning Radius from Center - Bucket (racked) | 91.3 in / 2320 mm |
| Turning Radius from Center - Coupler | 60.3 in / 1531 mm |
| Turning Radius from Center - Machine Rear | 76 in / 1931 mm |
| Vehicle Width (450 mm/17.7 in tracks) | 77.8 in / 1976 mm |
| Maximum Dump Angle | 44.7° |
| Cab | |
|---|---|
| FOPS | ISO 3449:2005 Level I |
| ROPS | ISO 3471:2008 |
| FOPS Level II | ISO 3449:2005 Level II (Optional) |
| Power Train | |
|---|---|
| Travel Speed - Forward or Reverse - One Speed | 5.2 mile/h / 8.4 km/h |
| Travel Speed - Forward or Reverse - Two Speed | 7.8 mile/h / 12.5 km/h |
| Dimensions* | |
|---|---|
| Vehicle Width (400 mm/15.7 in tracks) | 75.8 in / 1926 mm |
