725C2

Heavy Equipment

725C2

Rated Payload
26.5 ton (US) / 24 ton (US)
Heaped (SAE 2:1)
19.6 yd³ / 15 m³
Bore
4.53 in / 115 mm

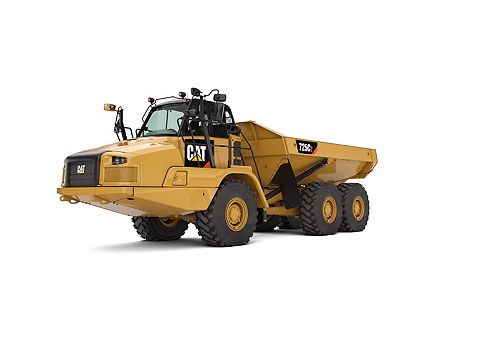

The Cat 725C2, with a 15 m3 (19.6 yd3) 24 tonnes (26.5 tons) capacity, offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. Updating the 725C to include all axle enclosed wet brakes and Automatic Traction Control makes the 725C2 the best option for our customers. Class leading levels of performance and operator comfort make for a productive machine all day long.

Engine
Engine Model Cat C9.3 ACERT
Bore 4.53 in / 115 mm
Stroke 5.87 in / 149 mm
Displacement 567 in³ / 9.3 l
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV Cat® C9.3 ACERT™
Gross Power - SAE J1995 320 HP / 239 kW
Net Power - ISO 14396 316 HP / 236 kW
Net Power - SAE J1349 314 HP / 234 kW
No Engine De-rating Below 7500 ft / 2290 m
Peak Engine Torque Gross (SAE J1995) 1275 ft·lbf / 1729 N·m
Peak Engine Torque Net (SAE J1349) 1262 ft·lbf / 1712 N·m
Peak Engine Torque Speed 1200 r/min
Emissions The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards.
Note (1) The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Note (2) The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note (3) Net power when the fan is at maximum speed is 214 kW (287 hp) per the SAE reference conditions.
Note (4) DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
Weights
Rated Payload 26.5 ton (US) / 24 ton (US)
Body Capacities
Heaped (SAE 2:1) 19.6 yd³ / 15 m³
Struck 14.4 yd³ / 11 m³
Tailgate Heaped SAE 2:1 20.4 yd³ / 15.6 m³
Tailgate Struck 14.5 yd³ / 11.1 m³
Transmission
Forward - 1 5 mT/hr / 8 km/h
Forward - 2 9 mT/hr / 15 km/h
Forward - 3 14 mT/hr / 22 km/h
Forward - 4 21 mT/hr / 34 km/h
Forward - 5 29 mT/hr / 47 km/h
Forward - 6 36 mT/hr / 55 km/h
Reverse - 1 6 mT/hr / 9 km/h
Sound Levels
Interior Cab 76 dB(A)
Note (1) The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Operating Weights
Center Axle - Empty 9755 lb / 4425 kg
Center Axle - Loaded 33455 lb / 15175 kg
Center Axle - Rated Load 23700 lb / 10750 kg
Front Axle - Empty 31835 lb / 14440 kg
Front Axle - Loaded 37374 lb / 16940 kg
Front Axle - Rated Load 5512 lb / 2500 kg
Rear Axle - Empty 9205 lb / 4175 kg
Rear Axle - Loaded 32905 lb / 14925 kg
Rear Axle - Rated Load 23700 lb / 10750 kg
Total - Empty 50795 lb / 23040 kg
Total - Loaded 103707 lb / 47040 kg
Total - Rated Load 52912 lb / 24000 kg
Service Refill Capacities
Fuel Tank 108.8 gal (US) / 412 l
Cooling System 21.9 gal (US) / 83 l
Hydraulic System 29.1 gal (US) / 110 l
Engine Crankcase 10 gal (US) / 38 l
Transmission 12.4 gal (US) / 47 l
Final Drives/Differential 33 gal (US) / 125 l
Output Transfer Gear Box 6.3 gal (US) / 24 l
DEF Tank 5.3 gal (US) / 20 l
Body Hoist
Raise Time 10 s
Lower Time 8 s
Steering
Lock to Lock 4.75 seconds @ 60 rpm
Standards
Brakes ISO 3450 – 2011
Cab - FOPS ISO 3449 Level II – 2005
Cab - ROPS ISO 3471 – 2008
Steering ISO 5010 – 2007
Body Plate
Type High strength Brinell HB450 wear resistant steel
Turning Circle
Note Dimensions are for machines equipped with 23.5R25 tires.
Turning Dimensions - Aisle Width 210 in / 5332 mm
Turning Dimensions - Clearance Radius 318 in / 8075 mm
Turning Dimensions - Inside Radius 153 in / 3879 mm
Turning Dimensions - SAE Turning Radius 294 in / 7470 mm
Turning Dimensions - Steer Angle - Left/Right 45°

Standard Equipment

  • Dashboard Liquid Crystal Display (LCD):
    • Alert indicator, selected gear and direction, speed or auto shift, review Operation and Maintenance Manual (OMM), primary steering failure, seat belt warning, secondary steering failure, Machine Security System (MSS), secondary steering energy source engaged, hour meter and retarder active
  • Machine Operation Monitoring System includes:
    • Action lamp, engine oil pressure, primary steering system, left turn signal, high beam, coolant temperature, tachometer, parking brake, fuel level, right turn signal, transmission oil temperature, brake system, transmission hold, hoist control, hydraulic system, charging system, retarder, transmission fault, traction control system, check engine lamp
