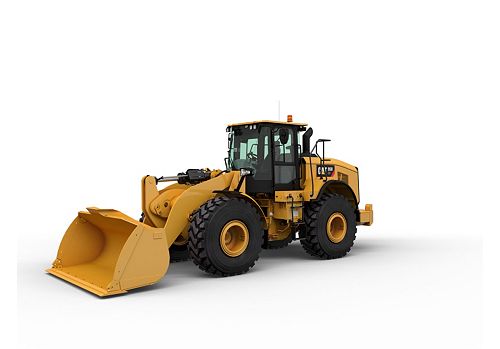

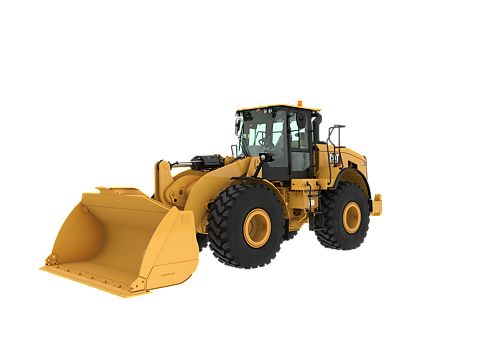

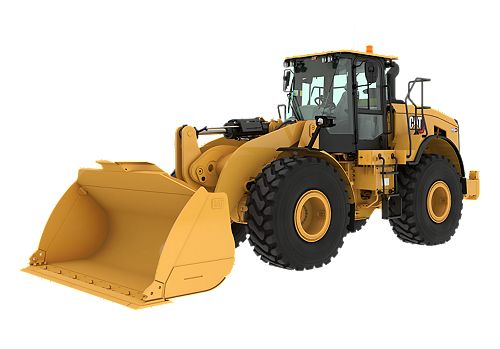

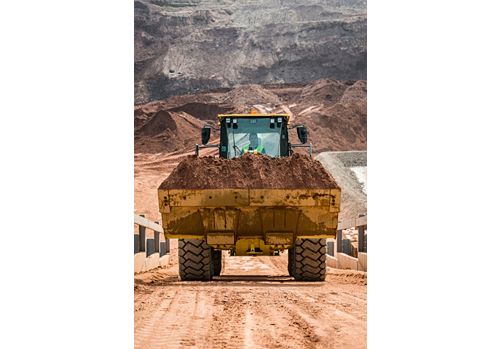

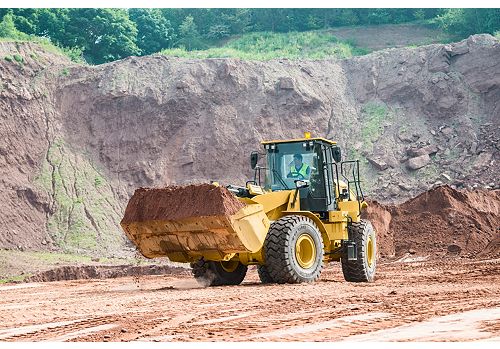

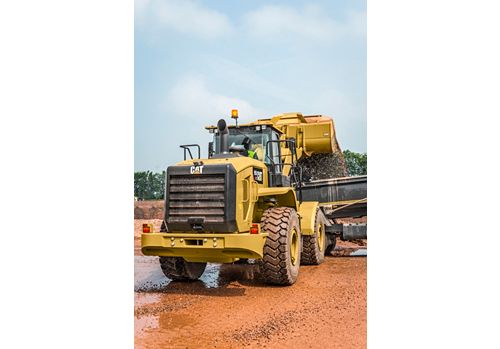

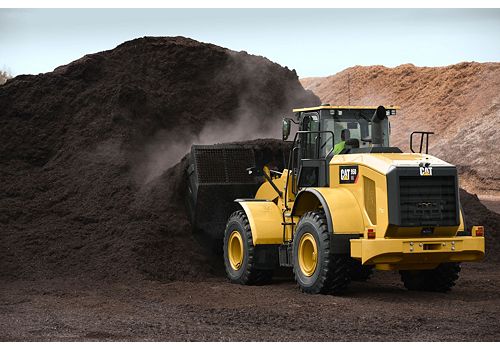

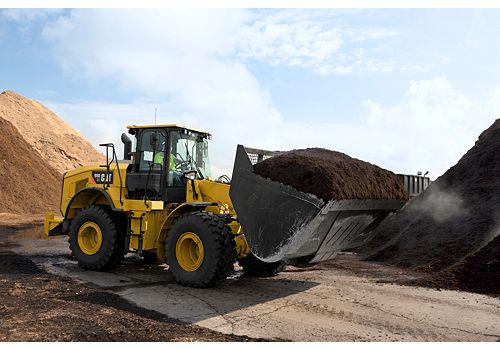

950 GC

Net Power - ISO 9249: 225 hp / 168 kW
Operating Weight: 41554 lb / 18849 kg
Displacement: 428 in³ / 7.01 l

The Cat® 950 GC wheel loader is designed specifically to handle all the jobs on your worksite from material handling and truck loading to general construction and stockpiling. Great machine performance combined with the low owning and operating costs makes the 950 GC the right choice for your business.

Loan Calculator Credit Application

Build & Quote

950 GC Product Brochure 950 GC Key Features and Benefits 950 GC Technical Specifications Medium Wheel Loaders - Rigout Catalog

Specifications
Equipment
Related Products

Engine
Net Power - ISO 9249	225 hp / 168 kW
Emissions	Tier 4/Stage V
Displacement	428 in³ / 7.01 l
Maximum Net Power - 1,700 rpm - ISO 9249 - Metric	228 hp / 168 kW
Maximum Power - 1,700 rpm - ISO 14396	240 hp / 179 kW
Maximum Power - 1,700 rpm - ISO 14396 - Metric	243 hp / 179 kW
Peak Gross Torque - 1,400 rpm - SAE J1995	811 ft·lbf / 1099 N·m
Peak Gross Torque - 1,400 rpm - ISO 14396	805 ft·lbf / 1092 N·m
Engine Model	Cat C7.1
Maximum Net Power - 1,700 rpm - ISO 9249	225 hp / 168 kW
Maximum Net Power - 1,700 rpm - SAE J1349	225 hp / 168 kW
Maximum Power - 1,700 rpm - SAE J1995	241 hp / 180 kW
Note	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).
Bore	4.13 in / 105 mm
Stroke	5.31 in / 135 mm

Weights
Operating Weight	41554 lb / 18849 kg

Buckets
Bucket Capacities	2.9-4.4 m³ (3.75-5.75 yd³)

Transmission
Reverse - 3	14.2 mile/h / 22.8 km/h
Forward - 3	14.2 mile/h / 22.8 km/h
Forward - 1	4.5 mile/h / 7.3 km/h
Forward - 2	8 mile/h / 12.8 km/h
Forward - 4	22.4 mile/h / 36 km/h
Reverse - 2	8 mile/h / 12.8 km/h
Reverse - 1	4.5 mile/h / 7.3 km/h
Note	Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.

Hydraulic System
Hydraulic Cycle Time - Total Cycle Time	9.4 s
Steering System - Pump Type	Piston
Implement System - Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min)	4047 psi / 27900 kPa
Implement System - Maximum Pump Output at 2,390 rpm	68 gal/min / 256 l/min

Service Refill Capacities
DEF Tank	4.2 gal (US) / 16 l
Transmission	11.9 gal (US) / 45 l
Fuel Tank Size	76.6 gal (US) / 290 l
Cooling System	13.2 gal (US) / 50 l
Differential - Final Drives - Rear	10 gal (US) / 38 l
Differential - Final Drives - Front	10.6 gal (US) / 40 l
Crankcase	4.8 gal (US) / 18 l
Hydraulic Tank	29.6 gal (US) / 112 l

Sound
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)	73 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)	109 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)	76 dB(A)*
Note (1)	*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value: Note (2)	European Union Directive "2000/14/EC" as amended by "2005/88/EC."
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**	73 dB(A)
With Cooling Fan Speed at 70% of Maximum Value: Note (1)	For machines in European Union countries and in countries that adopt the EU Directives
With Cooling Fan Speed at Maximum Value - Note	Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**	107 LWA***
Note (3)	***European Union Directive "2000/14/EC" as amended by "2005/88/EC."
Note (2)	**For machines in European Union countries and in countries that adopt the "EU Directives."

Dimensions
Rack Back - Ground	40 degrees
Height - Top of Exhaust Pipe	11.17 ft / 3416 mm
Centerline of Rear Axle to Hitch	5.42 ft / 1650 mm
Lift Arm Clearance	12 ft / 3649 mm
B-Pin Height	13.75 ft / 4188 mm
Centerline of Rear Axle to Edge of Counterweight	6.75 ft / 2055 mm
Ground Clearance	1.5 ft / 460 mm
Rack Back - Maximum Lift	60 degrees
Height - Top of Hood	8.75 ft / 2673 mm
Wheel Base	10.83 ft / 3300 mm
Height - Top of ROPS	11.33 ft / 3458 mm
Rack Back - Carry	45 degrees
Note	All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.

Weights and Operating Specifications
Note (2)	*Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Tipping Load - Full Turn - Rigid Tires**	25875 lb / 11737 kg
Breakout Force	34638 lbf / 154 kN
Tipping Load - Full Turn - ISO 14397-1*	24264 lb / 11006 kg
Note (3)	**Compliance to ISO (2007) 14397-1 Sections 1 thru 5.
Operating Weight	41554 lb / 18849 kg
Note (1)	For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound suppression.

Engine - Tier 4 Final/Stage IV
Emissions	Tier 4/Stage IV

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Engine - Cat C7.1 meets Tier 4 Final/Stage IV emissions standards
- Torque converter
- Transmission, automatic, power shift (4F/3R), kick-down function, overspeed protection
- Brakes, full hydraulic enclosed wet-disc
- EIMS (Engine Idle Management System)
- EIS (Auto Idle Shutdown)
- Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
- Filter, fuel primary-water separator/secondary
- Radiator, unit core (9.5 fpi) with ATAAC
- Starting aid, glow plugs
- Switch, transmission neutralizer lockout
HYDRAULICS
- Load sensing implement system pilot operated
- Dedicated load sensing steering pump
- Dedicated brake and fan gear pump
ELECTRICAL
- Alarm, back-up/main disconnect switch
- Alternator (145-amp, brush type)
- Batteries (2), maintenance free
- Ignition key; start/stop switch
- Lighting system, halogen (6 total) - Four (4) halogen work lights; Two (2) halogen road lights
- Starting and charging system (24-volt)
- Starter, electric (heavy duty)

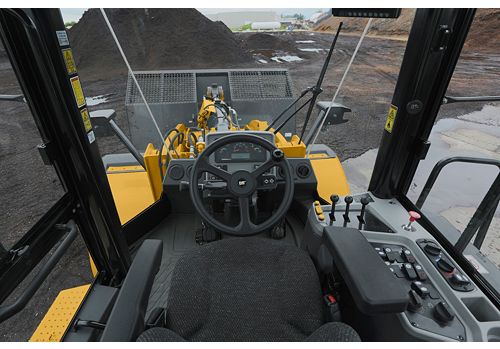

OPERATOR ENVIRONMENT
- Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
- Bucket/work tool function lockout
- Cab, pressurized and sound suppressed
- Hydroformed (ROPS/FOPS) structure
- 12V power port (10A)
- Coat hook
- Radio ready
- Rear vision camera and display
- Pilot hydraulic controls, lift and tilt function
- Computerized monitoring system
- Gauges - Engine coolant temperatures/fluid level; Hydraulic/transmission oil temperature; Tachometer/DEF level
- Digital indicators - Gear indicator; Speedometer; Service meter units; Fault codes
- Warning indicators - Air inlet heater; Electrical malfunction; Engine inlet manifold temperature; Engine oil pressure, fuel level; Fuel pressure high/low; Hydraulic oil level, parking brake; Primary steering oil pressure; Service brake oil pressure; Action light, engine malfunction; Transmission filter bypass
- Heater and defroster
- Horn
- Cup holders and personal tray on right console
- Storage tray behind seat
- Mirrors, rearview external
- Seat, Cat Comfort (clotch) suspension
- Seat belt
- Steering column, adjustable angle
- Wipers/washers (front and rear)
- Window, sliding (left and right side)
TIRES, RIMS, AND WHEELS
- Tires are available from Triangle, Maxam and Bridgestone
- Offerings vary by region. Consult your local Cat dealer for further details
FLUIDS
- Premixed 50% concentration of extended life coolant with freeze protection to -34° C (-29° F)
OTHER STANDARD EQUIPMENT
- Lift and bucket return-to-dig kick outs (Electro-Magnetic), mechanical adjustment
- Couplings, Cat O-ring face seal
- Doors, service access (locking)
- Front fender, steel
- Grill, airborne debris
- Hitch, drawbar with pin
- Hood, wing doors
- Hoses, Cat XT
- Counterweight
- Linkage, Z-bar, fabricated crosstube/tilt lever
- S•O•S oil sampling valves
- Sight gauges - Engine coolant, hydraulic oil; Transmission oil level
- Diagnostic pressure taps
- Product Link Ready

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPTIONAL EQUIPMENT
- Cold weather starting (jacket water heater, electric and ether starting aid)
- Third hydraulic function, additional dedicated single axis level
- Quick coupler control
- Limited slip differentials
- Ride control
- Air suspended seat
- Secondary steering, electrical
- Reversing cooling fan (auto/manual controlled)
- Toolbox
- Sun visor, rear
- High capacity converted 12V/15A
- Warning beacon
- Extra working lights (4), Halogen or LED
- Radio
- Fender extensions/roading

Detect

On the surface, operators in the cabs of large mining equipment often cannot see if another machine or vehicle is too close for safe operation. Detect helps alleviate this potential safety hazard and can also be configured to provide valuable information about site conditions and other assets working in the area. Underground, continuous equipment movement on a longwall face can pose risks to those in the working area.

Model
Rear Object Detection for Wheel Loaders

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
Cat Inspect
Cat Product Link

Fusion™ Coupler - Loader

The heart of Fusion™ is a unique design that pulls the load inward, toward the machine.

Model	Weight
950/962 Fusion Coupler	1248 lb / 566 kg
