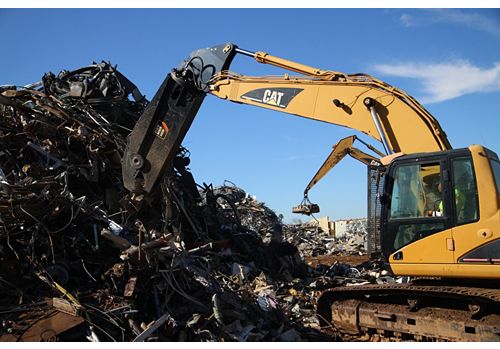

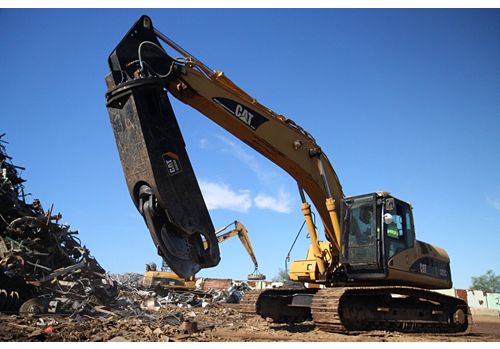

S3070 Rotating Scrap & Demolition Shear
- Weight - Boom Mount
- 15578 lb / 7065 kg
- Weight - Stick Mount
- 15259 lb / 6920 kg
- Length
- 193 in / 4890 mm
Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.
| Product Specifications | |
|---|---|
| Weight - Boom Mount | 15578 lb / 7065 kg |
| Weight - Stick Mount | 15259 lb / 6920 kg |
| Length | 193 in / 4890 mm |
| Height | 66 in / 1685 mm |
| Width | 46 in / 1160 mm |
| Jaw Width - Fixed | 21 in / 546 mm |
| Jaw Width - Moving | 6 in / 158 mm |
| Jaw Opening | 32.2 in / 819 mm |
| Jaw Depth | 30 in / 755 mm |
| Throat Force | 1016 ton-f / 9037 kN |
| Apex Force | 436 ton-f / 3880 kN |
| Tip Force | 237 ton-f / 2110 kN |
| Cutting Circuit - Maximum Relief Pressure | 5075 psi / 35000 kPa |
| Cutting Circuit - Maximum Flow | 140 gpm / 530 L/min |
| Rotation Circuit - Maximum Relief Pressure | 2030 psi / 14000 kPa |
| Rotation Circuit - Maximum Flow | 21 gpm / 80 L/min |
| Stick Mounted - Maximum | 92 tons |
| Stick Mounted - Minimum | 70 tons |
| Boom Mounted - Minimum | 30 tons |
| Boom Mounted - Maximum | 54 tons |
| Cycle Time - Close | 3.4 Seconds |
Demolition Excavators
| Model | Engine Model | Stroke | Net Flywheel Power |
|---|---|---|---|
| 336F L Straight Boom (2017) | Cat C9.3 ACERT | 5.87 in / 149 mm | 306 hp / 228 kW |
Large Excavators
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 395 | 542 hp / 404 kW | 207400 lb / 94000 kg | 31.9 ft / 9670 mm |
