725

Rated Payload: 26.5 ton (US) / 24 t
Heaped (SAE 2:1): 19.6 yd³ / 15 m³
Bore: 4.5 in / 115 mm

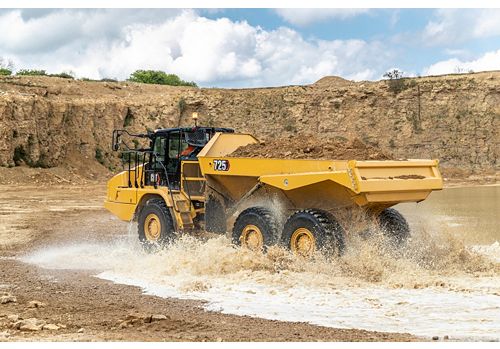

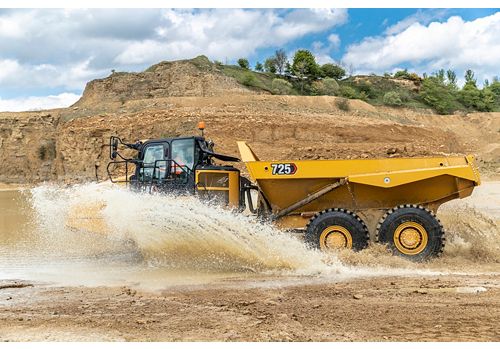

The Cat® 725 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, automatic retarder control, stability-assist machine rollover warning system, and a fuel saving ECO mode.

Loan Calculator Credit Application

Build & Quote

725 Key Features 725 Product Brochure 725 Technical Specifications

Specifications
Equipment
Related Products

Engine
Engine Model	Cat C9.3
Bore	4.5 in / 115 mm
Stroke	45.2 in / 1149 mm
Displacement	567.5 in³ / 9.3 l
Peak Engine Torque Gross (SAE J1995)	1275 ft·lbf / 1729 N·m
Gross Power - SAE J1995:2014	342 hp / 255 kW
Net Power - ISO 14396	338 hp / 252 kW
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV	Cat® C9.3
No Engine De-rating Below	3000 ft / 914 m
Peak Engine Torque Net (SAE J1349)	1263 ft·lbf / 1712 N·m
Net Power - SAE J1349:2011	334 hp / 249 kW
Peak Engine Torque Speed	1200 r/min
Note (1)	The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard.
Emissions	The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards.
Note (3)	Net power when the fan is at maximum speed is 249 kW (334 hp) per the SAE reference conditions.
Note (2)	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note (4)	DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.

Weights
Rated Payload	26.5 ton (US) / 24 t

Body Capacities
Heaped (SAE 2:1)	19.6 yd³ / 15 m³
Struck	14.4 yd³ / 11 m³
Tailgate Heaped SAE 2:1	20.4 yd³ / 15.6 m³
Tailgate Struck	14.5 yd³ / 11.1 m³

Transmission
Forward - 1	5 mT/hr / 8.1 km/h
Forward - 2	9.4 mT/hr / 15.2 km/h
Forward - 3	14.4 mT/hr / 23.2 km/h
Forward - 4	22.1 mT/hr / 35.5 km/h
Forward - 5	30.7 mT/hr / 49.4 km/h
Forward - 6	36.3 mT/hr / 58.4 km/h
Reverse - 1	5.5 mT/hr / 8.9 km/h

Sound Levels
Interior Cab	69 dB(A)
Note (1)	The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Operating Weights
Total - Loaded	103886 lb / 47122 kg
Rear Axle - Rated Load	23699 lb / 10750 kg
Total - Empty	50975 lb / 23122 kg
Total - Rated Load	52910 lb / 24000 kg
Center Axle - Loaded	33944 lb / 15397 kg
Front Axle - Rated Load	5511 lb / 2500 kg
Center Axle - Rated Load	23699 lb / 10750 kg
Center Axle - Empty	10242 lb / 4646 kg
Rear Axle - Loaded	33457 lb / 15176 kg
Front Axle - Loaded	36484 lb / 16549 kg
Rear Axle - Empty	9757 lb / 4426 kg
Front Axle - Empty	30974 lb / 14050 kg

Body Plate Thickness
Side Plates	0.43 in / 11 mm
Front Plate	0.28 in / 7 mm
Base Plate	0.51 in / 13 mm

Service Refill Capacities
Fuel Tank	91 gal (US) / 412 l
Cooling System	18 gal (US) / 83 l
Hydraulic System	29.1 gal (US) / 110 l
Engine Crankcase	8 gal (US) / 38 l
Transmission	10 gal (US) / 47 l
Final Drives/Differential	33 gal (US) / 125 l
Output Transfer Gear Box	5 gal (US) / 24 l
DEF Tank	4 gal (US) / 20 l
Steering/Hoist Hydraulic System	24 gal (US) / 110 l
Final Drive - Each	1.6 gal (US) / 7.5 l

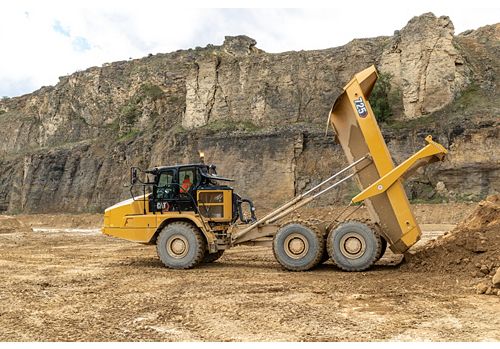

Body Hoist
Raise Time	10 s
Lower Time	8 s

Steering
Lock to Lock	4.75 seconds @ 60 rpm

Standards
Brakes	ISO 3450 – 2011
Cab - FOPS	ISO 3449 Level II – 2008
Cab - ROPS	ISO 3471 – 2008
Steering	ISO 5010 – 2007

Body Plate
Type	High strength Brinell HB450 wear resistant steel

Turning Circle
Turning Dimensions - Inside Radius	153 in / 3879 mm
Turning Dimensions - Aisle Width	210 in / 5332 mm
Turning Dimensions - SAE Turning Radius	294 in / 7470 mm
Turning Dimensions - Clearance Radius	318 in / 8075 mm
Turning Dimensions - Steer Angle - Left/Right	45°
Note	Dimensions are for machines equipped with 23.5R25 tires.

Optimal Loader/Truck Pass Matching
Wheel Loader: 950M - Passes	5
Wheel Loader: 962M - Passes	4-5
Wheel Loaders: 966M/966M XE - Passes	4
Hydraulic Excavators: 336F/336F XE - Passes	5-6
Wheel Loaders: 972M/972M XE - Passes	3-4
Hydraulic Excavators: 349F/349F XE - Passes	4-5

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Air conditioning with R134A refrigerant
- Machine operation monitoring system includes:
  – Action lamp
  – Engine oil pressure
  – Primary steering system
  – Left and right turn signal
  – High beam
  – Coolant temperature
  – Tachometer
  – Parking brake
  – Fuel level
  – Transmission oil temperature
  – Brake system
  – Transmission hold
  – Hoist control
  – Hydraulic system
  – Charging system
  – Retarder
  – Transmission fault
  – Traction control system
  – Check engine lamp
- Windows opening both sides, tinted
- Storage:
  – Cup holder
  – Flask receptacle
  – Under seat storage
  – Door pocket
  – Behind operator seat storage
  – Coat hook
- Glass windows:
  – Front, laminated and tinted
  – Sides and rear, toughened and tinted
- Seats:
  – Operator: fully adjustable, air suspension
  – Trainer: padded with lap belt
- Tilt and telescopic steering wheel
- Retractable belt: Operator seat and second seat
- Adjustable air vents
- Heater and defroster with four-speed fan
- Sun visor
- Touchscreen display incorporating the rearview camera video feed
- Windshield wiper and washer, two speed, intermittent (front)
- Combined gear selection and hoist control lever
- Windshield wiper and washer, two speed (rear)
- Liquid Crystal Display (LCD):
  – Alert indicator
  – Selected gear and direction
  – Speed or auto shift
  – Review Operation and Maintenance Manual (OMM)
  – Primary steering failure warning
  – Seat belt warning
  – Secondary steering failure warning
  – Diesel Particulate Filter (DPF) regeneration filter
  – Machine Security System (MSS) ready
  – Secondary steering energy source engaged
  – Hour meter
  – Retarder active
- Secondary steering – electro hydraulic
- Mirrors: extensive arrangement for improved visibility
CAT TECHNOLOGIES
- Product Link
- Cat Detect with Stability Assist
ELECTRICAL AND LIGHTING
- Electrical system: 24-volt, 5A 24- to 12-volt converter
- Lighting systems:
  – Cab interior
  – Two head lamps
  – Two width marker
  – Two reversing
  – Work light/cab access light
  – Two stop/tail lights
  – Front and rear direction indicators
- Main disconnect switch
- Horn
- Batteries (two) maintenance free
- Remote starting receptacle (cables not included)
POWER TRAIN
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Cat C9.3 engine
- Three axle, six-wheel drive
- Retarder: engine compression brake
- Dual circuit oil immersed, enclosed brakes – all wheels
- Auto shift six-speed forward and single speed reverse transmission
SAFETY
- Reverse alarm
- Rearview camera
- ROPS/FOPS cab
GUARDS
- Front dump body spill guard, integral part of fabricated body
- Crankcase
- Axle
- Rear window
- Radiator
OTHER STANDARD EQUIPMENT
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Sound suppression (only standard in Europe)
- S·O·S sampling valves
- Tires, six 23.5R25

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPTIONAL EQUIPMENT
- Cold weather coolant –51° C (–60° F)
- Infrared glass – high ambient cab
- Auto lube installation for automatic greasing of bearings
- Cold weather start attachment
- Bare chassis (no body) standard wheel base
- Roof mounted High Intensity Discharge (HID) work lights
- Product Link Elite: PLE641 (cellular). Product Link is optional.
- Heated/cooled seat
- Exhaust heated body
- Fuel additive – anti-waxing
- Flashing LED beacon
- Body liners
- Ether start
- Four-point seat belt
- Machine Security System (MSS)
- Cat Production Measurement payload monitoring system
- Sound suppression (only standard in Europe)
- Fast fuel fill
- Wheel chocks
- Engine block heater
- Heated rearview motorized mirrors
- Window blinds
- Bluetooth radio stereo system
- Scissor tailgate
