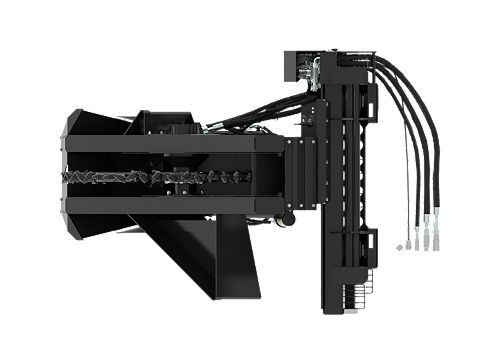

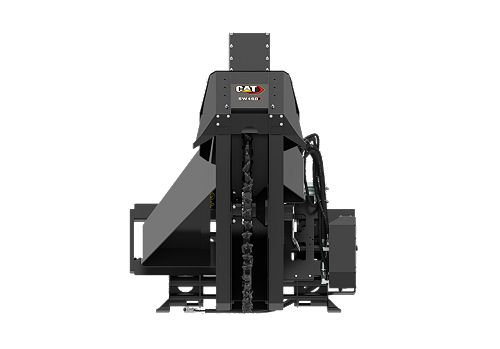

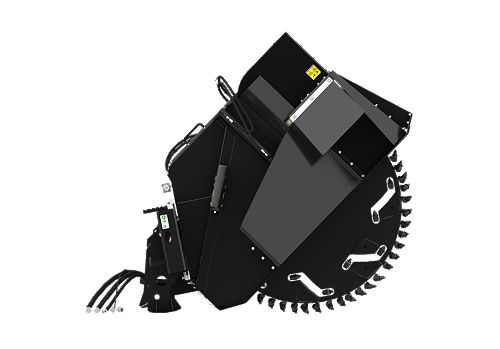

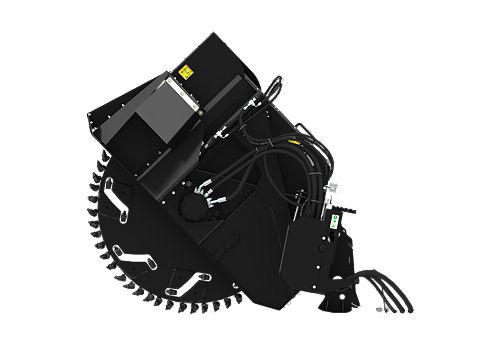

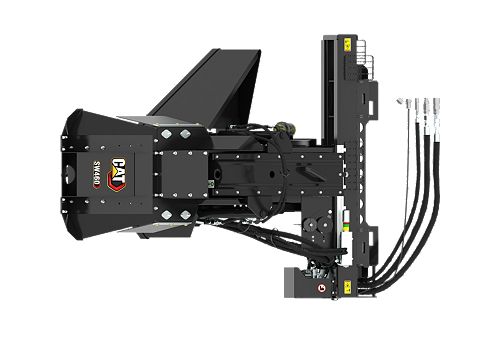

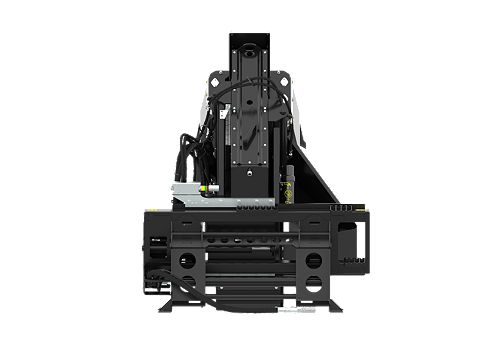

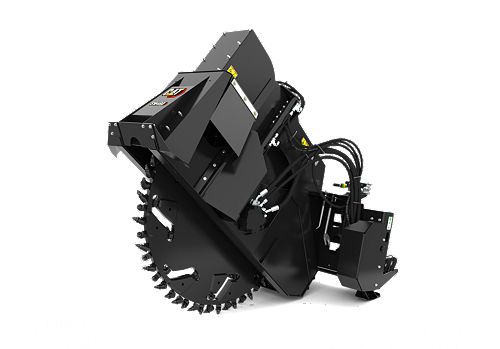

SW460, 80 mm (3 in)
- Maximum Cutting Depth
- 23.6 in / 600 mm
- Wheel Width
- 3.1 in / 80 mm
- Weight
- 3174.7 lb / 1440 kg
Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.
Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.
| Product Specifications | |
|---|---|
| Maximum Cutting Depth | 23.6 in / 600 mm |
| Wheel Width | 3.1 in / 80 mm |
| Weight | 3174.7 lb / 1440 kg |
| Overall Width | 65.2 in / 1655 mm |
| Overall Height | 69.5 in / 1765 mm |
| Length | 95.2 in / 2417 mm |
| Required Hydraulics | XHP / XE |
| Optimal Hydraulic Flow | 136-150 L/min (36-40 gpm) |
| Optimal Hydraulic Pressure | 250-280 bar (3630-4000 psi) |
| Motor Displacement | 102.9 in³/rev / 1686 cm³/rev |
| Wheel Torque at Maximum Pressure | 5538.4 lb/ft / 7509 N·m |
| Wheel Speed at Maximum Flow | 89 RPM |
| Bit Speed at Maximum Flow | 1410.8 ft/min / 430 m/min |
| Conical Bits - Per Wheel | 70 |
| Standard Bit Type | Concrete |
| Optional Bit Type | All Purpose |
| Side Shift Travel | 21.7 in / 550 mm |
| Trench Cleaning Device | No |
| Drive Method | Direct Drive |
| Interface Type | Skid Steer Coupler |
| Model | Gross Power - SAE J1995 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 299D3 XE | 110 HP / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 HP / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
