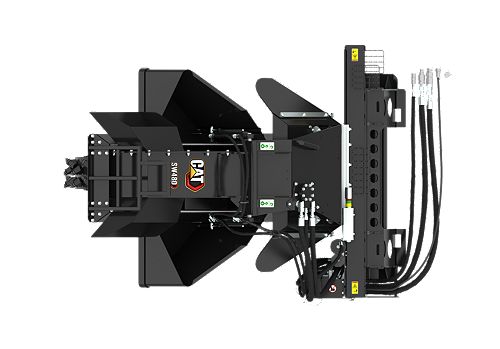

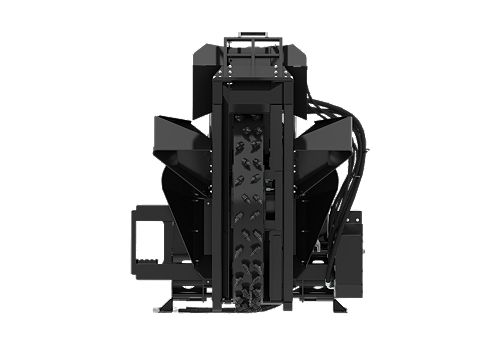

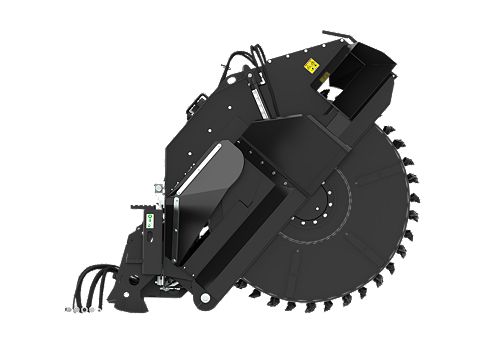

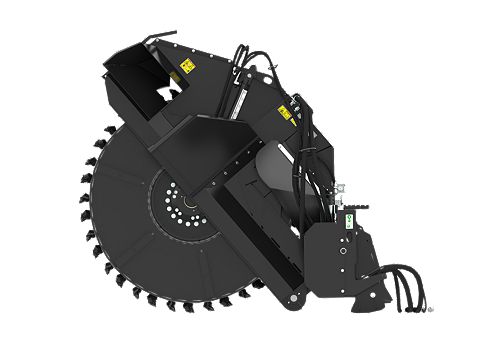

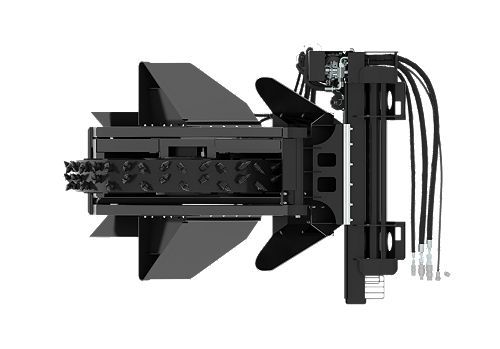

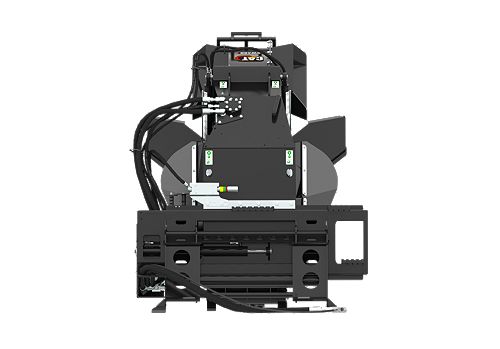

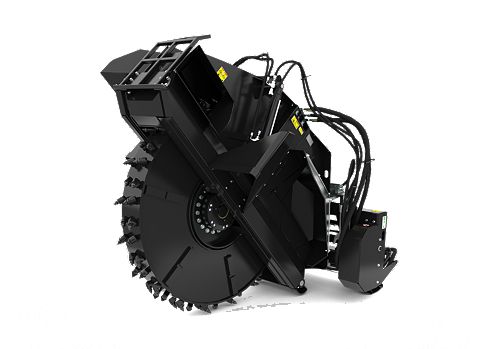

SW480, 250 mm (10 in)

Maximum Cutting Depth
31.5 in / 800 mm
Wheel Width
9.8 in / 250 mm
Weight
3196.7 lb / 1450 kg

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Product Specifications
Maximum Cutting Depth 31.5 in / 800 mm
Wheel Width 9.8 in / 250 mm
Weight 3196.7 lb / 1450 kg
Overall Width 65.2 in / 1655 mm
Overall Height 73.2 in / 1860 mm
Length 102.4 in / 2600 mm
Required Hydraulics High Flow XHP / XE
Optimal Hydraulic Flow 136-150 L/min (36-40 gpm)
Optimal Hydraulic Pressure 250-280 bar (3630-4000 psi)
Motor Displacement 102.9 in³/rev / 1686 cm³/rev
Wheel Torque at Maximum Pressure 5538.4 lb/ft / 7509 N·m
Wheel Speed at Maximum Flow 89 RPM
Bit Speed at Maximum Flow 1456.7 ft/min / 444 m/min
Conical Bits - Per Wheel 72
Standard Bit Type Concrete
Optional Bit Type All Purpose
Side Shift Travel 21.7 in / 550 mm
Trench Cleaning Device No
Drive Method Direct Drive
Interface Type Skid Steer Coupler
