140 GC / 140 GC AWD - Tier 4 / Stage 5
- Engine Power (ISO 14396)
- 196 hp / 147 kW
- Operating Weight - Typically Equipped
- 38912 lb / 17650 kg
- Blade Width
- 12 ft / 3.7 m

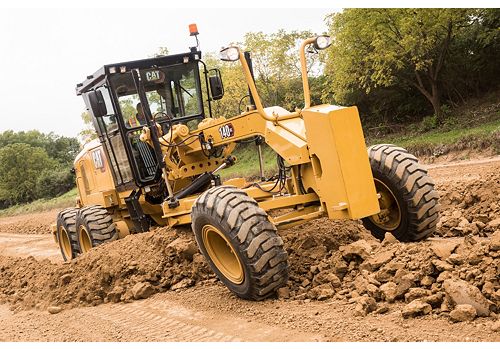

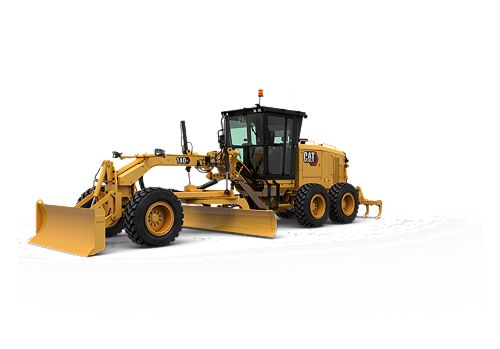

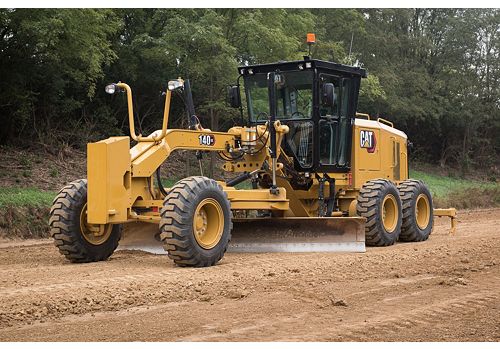

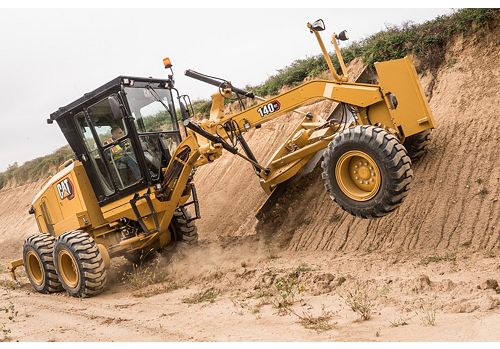

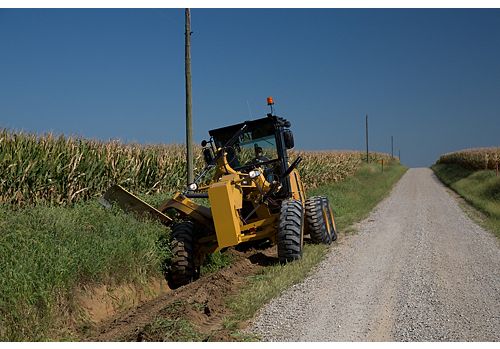

The Cat® 140 GC motor grader combines performance with cost efficient owning and operating. Servicing the machine is easy with grouped filter locations. Comfort options, including a heating/cooling system or air suspension seat, keep you productive throughout the day.
| Engine | |
|---|---|
| Engine Power (ISO 14396) | 196 hp / 147 kW |
| Bore | 4.1 in / 105 mm |
| Derating Altitude | 9842 ft / 3000 m |
| Displacement | 427.8 in³ / 7.01 l |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V |
| Engine Model | Cat 7.1 |
| Engine RPM | 2,200 |
| Standard Capability | 109 °F / 43 °C |
| High - Ambient Capability | 122 °F / 50 °C |
| Maximum Torque - ISO 9249 | 616 lb/ft / 835 N·m |
| Stroke | 5.3 in / 135 mm |
| Torque Rise - ISO 9294 | 40% |
| Number of Cylinders | 6 |
| Note (1) | Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. |
| Note (2) | Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. |
| Note (3) | Power as declared per ISO 14396 |
| Engine Power AWD (ISO 14396) | 196 hp / 147 kW |
| Weights | |
|---|---|
| Operating Weight - Typically Equipped | 38912 lb / 17650 kg |
| Note | * Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, rear ripper, tires on multi-piece rims (*17.5-25 Bias/**17.5R-25), and other equipment. |
| Air Conditioning System | |
|---|---|
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430).The system contains 2.0 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes. |
| Moldboard | |
|---|---|
| Blade Width | 12 ft / 3.7 m |
| Arc Radius | 16.3 in / 413 mm |
| Blade Height | 24 in / 610 mm |
| Cutting Edge Width | 6 in / 152 mm |
| End Bit | 6 in / 152 mm |
| Throat Clearance | 4.4 in / 112 mm |
| Weight | |
|---|---|
| Weight (Tier 4 Final)** | 40488 lb / 18365 kg |
| All-wheel Drive Weight (AWD) (Tier 4 Final)** | 42119 lb / 19105 kg |
| All-Wheel Drive Weight (AWD) (Stage V)* | 40543 lb / 18390 kg |
| Weight (Stage V)* | 38912 lb / 17650 kg |
| Dimensions | |
|---|---|
| Width All Wheel Drive (AWD) | 99.3 in / 2523 mm |
| Length of Machine* | 406.7 in / 10322 mm |
| Maximum Height | 132.4 in / 3363 mm |
| Width | 95.6 in / 2428 mm |
| Note | *Typically equipped with push block and ripper. |
| Blade Range | |
|---|---|
| Circle Center Shift Left | 29.6 in / 752 mm |
| Circle Center Shift Right | 28.7 in / 728 mm |
| Maximum Depth of Cut | 28.1 in / 715 mm |
| Maximum Lift Above Ground | 18.7 in / 475 mm |
| Maximum Shoulder Reach Left | 74.3 in / 1886 mm |
| Maximum Shoulder Reach Right | 71.3 in / 1812 mm |
| Moldboard Side Shift Left | 25.6 in / 649 mm |
| Moldboard Side Shift Right | 20.7 in / 526 mm |
| Blade Tip Range Backward | 5 |
| Blade Tip Range Forward | 40 |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 78 gal (US) / 295 l |
| Circle Drive with Slip Clutch | 2 gal (US) / 7.5 l |
| Circle Drive without Slip Clutch | 0.5 gal (US) / 2 l |
| Cooling System | 40 l / 10.6 gal (US) |
| Engine Crankcase | 5.5 gal (US) / 21 l |
| Diesel Exhaust Fluid Tank (Tier 4 Only) | 4.2 gal (US) / 16 l |
| Hydraulic System | 11.9 gal (US) / 45 l |
| Transmission | 4.8 gal (US) / 18 l |
