RM400

Heavy Equipment

RM400

Maximum Operating Weight
58863 lb / 26700 kg
Cutting/Mixing Width
96 in / 2438 mm
Gross Power
415.7 HP / 310 kW

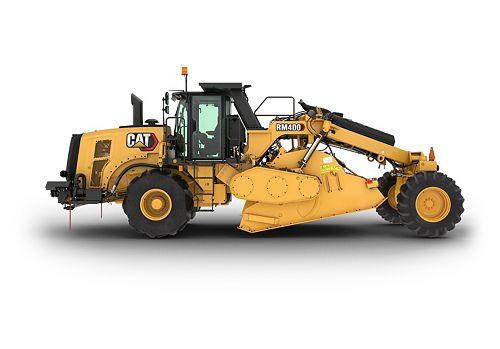

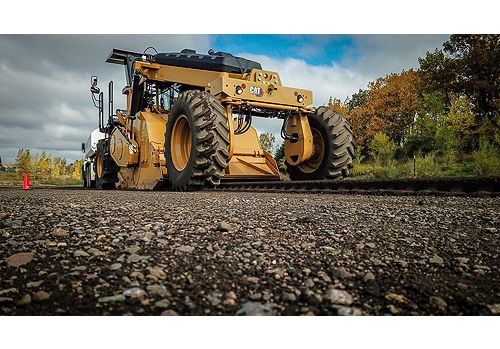

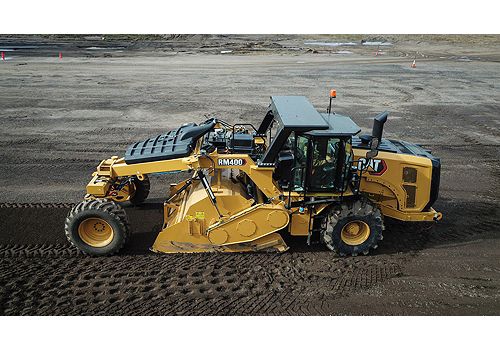

The RM400 Road Reclaimer is designed for full-depth reclamation and soil stabilization projects. It delivers excellent material gradation, outstanding maneuverability, and simple operation with superb visibility for excellent overall job site performance.

Weights
Maximum Operating Weight 58863 lb / 26700 kg
Operating Specifications
Cutting/Mixing Width 96 in / 2438 mm
Maximum Cutting/Mixing Depth 20 in / 508 mm
Operating Speed 2.97 mile/h / 4.8 km/h
Maximum Travel Speed 6.8 mile/h / 11 km/h
Rotor Options Universal, Combination, Spade
Rotor Speed - First (at 2100 Engine rpm) 108 r/min
Rotor Speed - Second (at 2100 Engine rpm) 134 r/min
Rotor Speed - Third (at 2100 Engine rpm) 159 r/min
Engine
Gross Power 415.7 HP / 310 kW
Engine Model Cat C9.3B
Dimensions
Length 31.4 ft / 9.56 m
Width 9.8 ft / 3 m
Maximum Height 11.5 ft / 3.5 m
Wheel Base 20.7 ft / 6.32 m
Ground Clearance 19.7 in / 500 mm
Service Refill Capacities
Fuel Tank Capacity 279 gal (US) / 1056 l

Standard Equipment

  • OPERATING ENVIRONMENT
    • Adjustable armrests
    • Air-ride, heated suspension seat
    • Audio-ready with speakers
    • Full width sliding cab with heat and air conditioning
    • Push button start
    • Illuminated dual-side access ladders
    • High visibility retractable seat belt
    • Mini-wheel steering control
    • Multifunction propel lever
    • Steering guides
    • Color touch screen operator interface
  • POWERTRAIN
    • Air to Air Aftercooler (ATAAC)
    • Dual element air cleaner with pre-cleaner
    • Extended life coolant with protection to -37 degrees C (-35 degrees F)
    • On-demand fan with auto-reversing function
    • Four steering modes
    • All-Wheel Drive
    • Electronic differential
    • Oil-bath brake system
    • Powertrain guard
  • ELECTRICAL SYSTEM
    • 150 amp alternator
    • 24-volt charging system
    • Automotive-type fuse system
    • Remote start/charge receptacle
    • Two 1365 CCA maintenance-free batteries
  • ROTOR DRIVE SYSTEM
    • Maintenance-free drive shafts
    • Self-lubricating roller and bearings
    • Shear disk driveline protection
    • Automatic depth control
    • Hydraulically-controlled dry clutch
    • Three rotor speeds
    • Variable volume mixing chamber
  • SERVICE AND MAINTENANCE
    • Grouped filters with ground level access
    • Cat Product Link™
    • Remote Flash
    • Remote access drains
    • Ports for Scheduled Oil Sampling (S·O·S)
    • Fluid level sight gauges
    • Service light receptacles
  • SAFETY
    • Back-up alarm (front and rear)
    • Front and rear facing cameras
    • Ground level emergency shutdown switches (3)
    • Horn (front and rear)
    • ROPS
    • Platform handrails and guardrails
    • Mirrors
    • Working lights (halogen or LED)

Optional Equipment

  • OPERATING ENVIRONMENT
    • Additional color touch screen
  • POWERTRAIN
    • Bio-friendly hydraulic oil
  • SPRAY SYSTEMS
    • Water spray system
    • Emulsion spray system
    • Push bar
  • ROTOR DRIVE SYSTEM
    • Torque limiter driveline protection
    • Rotor - Universal
    • Rotor - Combination
    • Rotor - Spade
    • Material sizing breaker bar
  • SERVICE AND MAINTENANCE
    • Air compressor
    • Pneumatic bit removal tool
  • SAFETY
    • LED roading lights
    • Folding LED safety beacon
    • Folding side view cameras (2)
    • Front and rear rotor chamber door cameras
