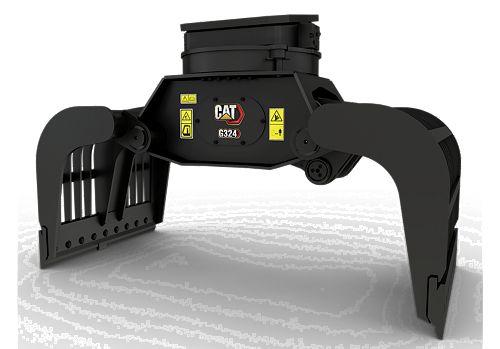

G324 Demolition & Sorting Grapple: 587-8977

Grapple Area
0.98 yd³ / 750 l
Weight
3940 lb / 1787 kg
Overall Width (Jaws Open)
86.61 in / 2200 mm

Cat® Demolition & Sorting Grapples are designed for fast, productive material handling. Capable of high-volume, production loading and precise sorting, to enhance the productivity and efficiency of your operation. The grapples can handle anything from primary and secondary demolition to recycling to get the job done.

Loan Calculator Credit Application
Build & Quote
alt 1
Demolition & Sorting Grapples Key Features and Benefits Demolition & Sorting Grapples for Tracked Excavators Technical Specifications Demolition & Sorting Grapples for Wheeled Excavators Technical Specifications Demolition & Sorting Grapples for Material Handlers Technical Specifications Demolition & Sorting Grapple Product Brochure
Product Specifications
Grapple Area 0.98 yd³ / 750 l
Weight 3940 lb / 1787 kg
Machine Class 23-30 Ton Excavators
Overall Width (Jaws Open) 86.61 in / 2200 mm
Overall Width (Jaws Closed) 60.63 in / 1540 mm
Overall Height (Jaws Open) 58.43 in / 1484 mm
Overall Height (Jaws Closed) 62.36 in / 1584 mm
Shell Type Options Skeleton

Demolition Excavators

Cat® demolition excavators deliver the high reach, exceptional stability, and precision customers require with the comfort and control operators expect. Engineered for demanding teardowns, they feature powerful hydraulics, reinforced structures, and advanced technology for safe, efficient operation. Spacious cabs, intuitive controls, and versatile attachments keep operators productive on jobs of any scale, anywhere in the world.

Model Operating Weight Maximum Pin Height at Stick Nose Maximum Weight at Stick Nose
330 UHD 101400 lb / 46000 kg 66.8 ft / 20350 mm 7300 lb / 3300 kg
340 UHD 122600 lb / 55600 kg 72.2 ft / 22 m 8160 lb / 3700 kg

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
323 172 hp / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
326 201 hp / 149.8 kW 56400 lb / 25600 kg 22.4 ft / 6820 mm
330 273 hp / 203.7 kW 69200 lb / 31400 kg 23.9 ft / 7240 mm
335 273 hp / 203.7 kW 77000 lb / 34900 kg 22.9 ft / 6990 mm
