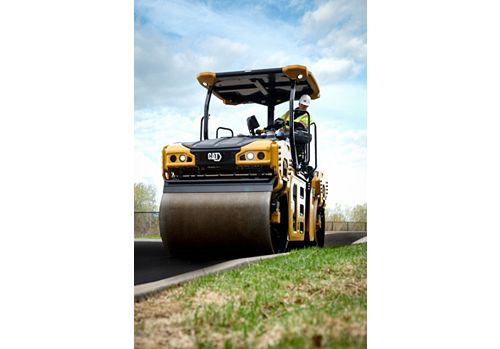

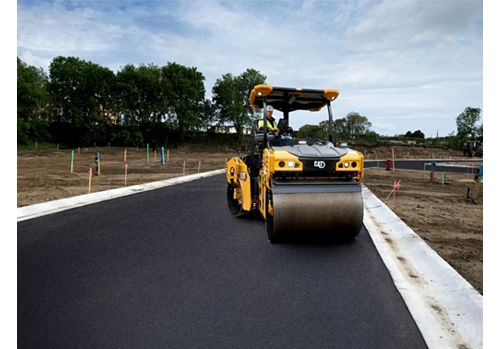

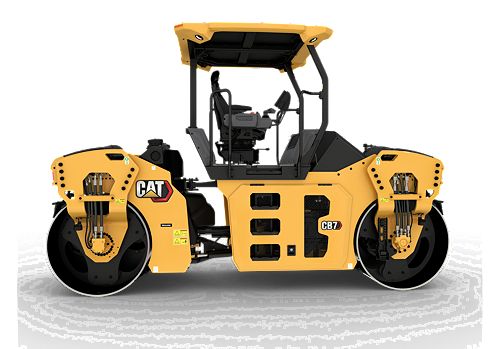

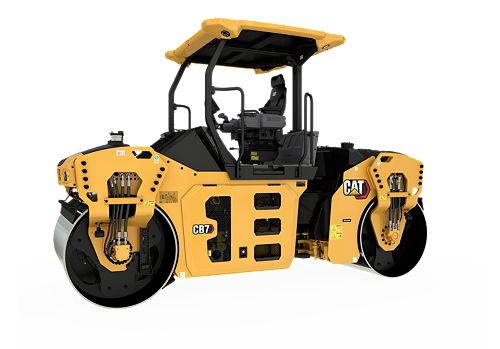

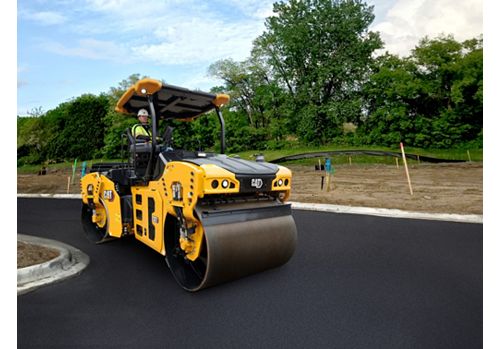

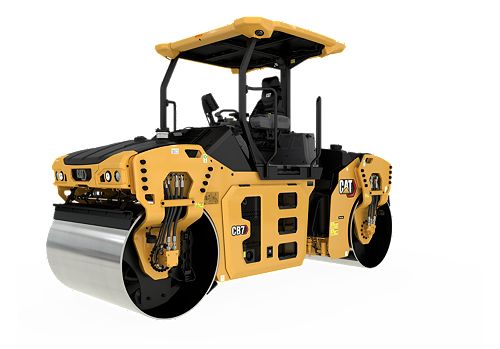

CB7

Weights
Standard Operating Weight with ROPS	19015 lb / 8625 kg
Maximum Operating Weight with ROPS	19224 lb / 8720 kg

Operating Specifications
Standard Compaction Width	59 in / 1500 mm
Maximum Compaction Width	65 in / 1670 mm
Travel Speed - Maximum	7 mile/h / 11 km/h
Static Linear Load	161 lb/in / 28.6 kg/cm

Engine
Engine Model	Cat? C3.6
Gross Power	100 HP / 74.4 kW

Dimensions
Height - With ROPS/FOPS	118 in / 2984 mm
Wheel Base	130 in / 3300 mm
Drum Diameter	44 in / 1108 mm
Overall Length	179 in / 4558 mm
Overall Width	78 in / 1977 mm

Vibratory System
Drum Width	59 in / 1500 mm
Centrifugal Force per Drum - Maximum	17602 lb / 78.3 kN
Centrifugal Force per Drum - Minimum	11982 lb / 53.3 kN
Nominal Amplitude - High	0.026 in / 0.65 mm
Nominal Amplitude - Low	0.012 in / 0.31 mm
Vibration Selection	Independent per drum, front only, rear only, both

Service Refill Capacities
Fuel Tank Capacity	36 gal (US) / 137 l
Water Spray Tank Capacity	195 gal (US) / 740 l

Standard Equipment

Operating Environment
- 180° seat positioning w/ sliding station
- Adjustable armrests
- Platform ROPS/FOPS
- Propel lever w/ 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- Seatbelt - 76 mm (3 in) high visibility
- Full-color display with touchscreen operation
- Vandalism protection
Technology
- Product Link™ PLE743
- Remote flash
- Remote troubleshooting
Powertrain
- C3.6 4-cylinder
Electrical System
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Batteries - maintenance free
- Cat® Electronic Technician (Cat ET)
- Remote start / charge receptacle
Vibratory System
- Two amplitude/two frequency - both drums
Service and Maintenance
- Maintenance-free hitch
- 3 year/3000 hour conventional vibratory system service interval
- 2 year/2000 hour oscillatory vibration system service interval
- Grouped filters with ground level access
- Remote access drains
- Sampling ports for Scheduled Oil Sampling (S•O•S?)
- Sight gauges - engine coolant and hydraulic oil
Safety
- Alarm, back up
- Horn, warning (front and rear)
- LED working lights
- Warning, LED safety beacons
- Steps, front drum fuel refill

Optional Equipment

Operating Environment
- 360° seat positioning w/sliding station
- Steering wheel - elevated position, left side
- Suspension seat - with heat
- Seat headrest
Technology
- Infrared asphalt temperature sensors
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Machine to Machine Communications
- Product Link PLE783
Powertrain
- Hitch - offset
- Hydraulic oil - biodegradeable
Vibratory System
- Two amplitude/two frequency w/ oscillation
- Mats - cocoa
- Mats - water distribution
- Freeze protection - water spray system
- Rear drum oscillation kit - field installed drum
Safety
- LED working lights
- LED auxiliary lighting - 1000/2000 lumin
- Mirror package
- Steps, rear drum water spray refill

Compact

Cat® Compact technologies combine advanced compaction measurement, in-cab guidance and reporting capabilities to help you consistently meet compaction targets faster, more uniformly, and in fewer passes—saving on fuel and reducing rework and material costs in both soil and asphalt applications.

Model
Cat Compact with Temperature Indication
Cat Compact with Compaction Meter Value (CMV)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
