CB2.5

Standard Operating Weight with ROPS
5546 lb / 2521 kg
Compaction Width
39.4 in / 1000 mm
Gross Power
48.2 hp / 36 kW

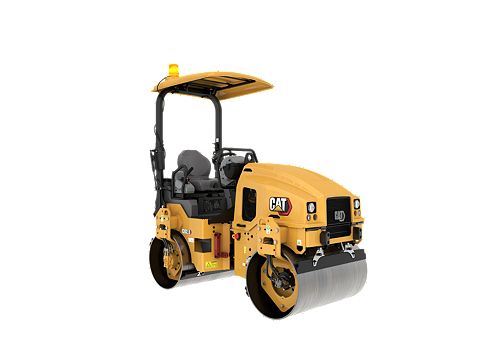

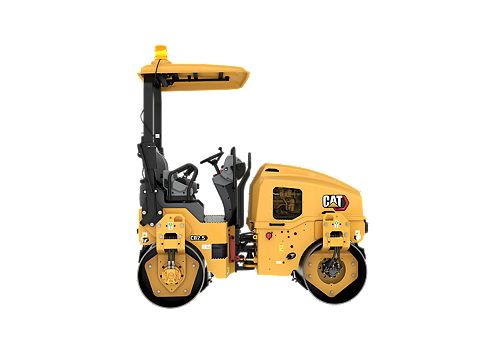

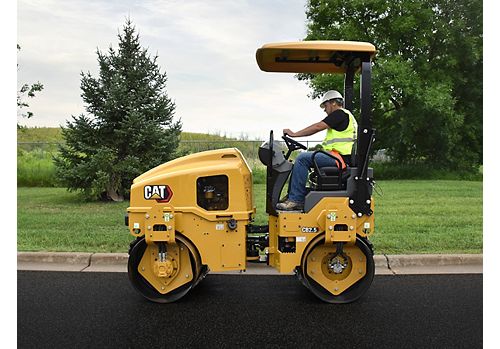

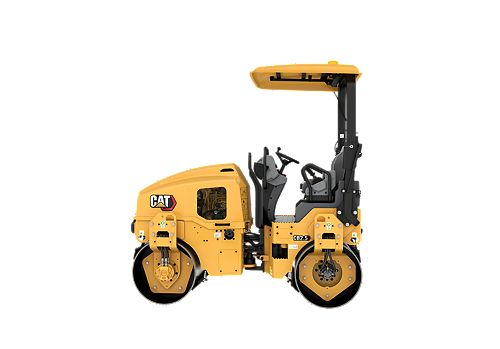

The CB2.5 is a 2.5 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.

Loan Calculator Credit Application
Build & Quote
alt 1
Key Features Compaction Control Technologies Paving Product Line Brochure Paving Application Guides and eBooks
Weights
Standard Operating Weight with ROPS 5546 lb / 2521 kg
Maximum Operating Weight with Cab 5546 lb / 2521 kg
Static Linear Load 66.2 lb/in / 11.85 kg/cm
Maximum Operating Weight with ROPS 6646 lb / 3021 kg
Maximum Weight at Front Drum 2607 lb / 1185 kg
Maximum Weight at Rear Drum 2939 lb / 1336 kg
Dimensions
Compaction Width 39.4 in / 1000 mm
Overall Width 43.8 in / 1112 mm
Drum Diameter 28.3 in / 720 mm
Overall Length 99.2 in / 2520 mm
Drum Width 39.4 in / 1000 mm
Wheel Base 70.9 in / 1800 mm
Height - ROPS 106 in / 2700 mm
Operating Specifications
Travel Speed - Maximum 7.5 mile/h / 12 km/h
Turning Radius - Inside Drum Edge 103.9 in / 2640 mm
Ground Clearance 11.2 in / 285 mm
Static Linear Load 66.2 lb/in / 11.85 kg/cm
Static Linear Load - With Cab 74.7 lb/in / 13.36 kg/cm
Turning Radius - Outside Drum Edge 143.3 in / 3640 mm
Curb Clearance 17.8 in / 453 mm
Drum Offset 2 in / 50 mm
Engine
Gross Power 48.2 hp / 36 kW
Engine Model C1.7T
Net Power - ISO 9249 47.6 hp / 35.5 kW
Vibratory System
Nominal Amplitude - High 0.02 in / 0.51 mm
Centrifugal Force - Maximum 6697 lb / 30 kN
Frequency 64 Hz / 3840 V/mm
Service Refill Capacities
Fuel Tank Capacity 14.37 gal (US) / 55 l
Water Spray Tank Capacity 52.8 gal (US) / 200 l

Standard Equipment

  • OPERATOR ENVIRONMENT
    • Adjustable Suspension Seat with Operator Presense Switch
    • ROPS Folding
    • Seat Belt - 75 mm (3 in) high visibility orange
    • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • COMPACTON SYSTEM
    • Folding Scrapers
    • Vibe Selection - front, rear, or both
    • Pressurized, Triple-Filtration Spray System with Test Mode
  • POWERTRAIN
    • Auto Engine Off and Auto Warmup
    • Air Cleaner, Dual Element
    • Engine Belt Guard
  • TECHNOLOGY
    • Telematics
  • ELECTRICAL
    • LED Working Lights
  • OTHER
    • Vandal Protection - lockable hood, fuel fill, and controls cover
    • Machine Life and Tiedowns
    • Offsets Hitch

Optional Equipment

  • OPERATOR ENVIRONMENT
    • ROPS Fixed
    • Sun Canopy
    • Seat - Side Shift
    • Dual Propel Levers
  • COMPACTON SYSTEM
    • Fixed Scrapers
    • Cocoa Mats
    • Edge Cutter Ready
    • Water Sprayer Antifreeze Kit
    • Ballast Kit - 200 kg (440 lb)
    • Ballast Kit - 400 kg (880 lb)
  • POWERTRAIN
    • Traction Control
  • TECHNOLOGY
    • Remote Flash / Troubleshoot
    • CMV - Compaction Measurement Value
  • ELECTRICAL
    • Battery Disconnect
    • LED Roading Lights
    • Rotating Amber Beacon
  • OTHER
    • Biodegradeable Hydraulic Oil
    • Bumpers
    • Single Point Lift
    • Custom Paint
