CB2.7
- Standard Operating Weight with ROPS
- 5936 lb / 2698 kg
- Compaction Width
- 47.2 in / 1200 mm
- Gross Power
- 48.2 hp / 36 kW

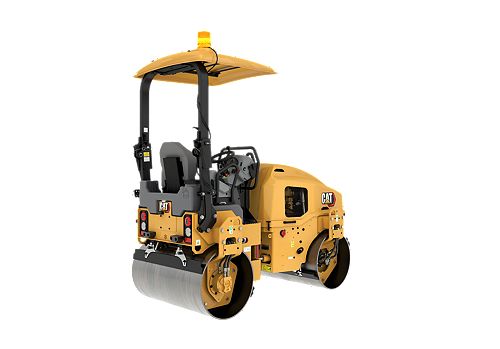

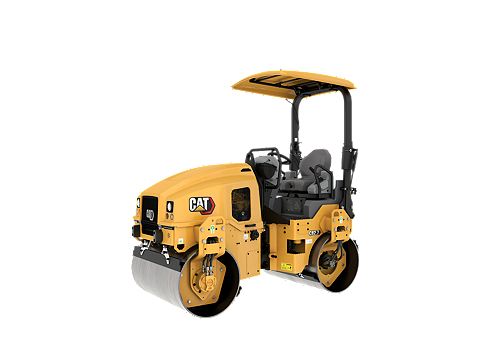

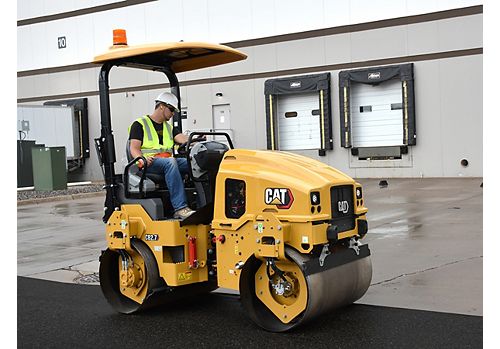

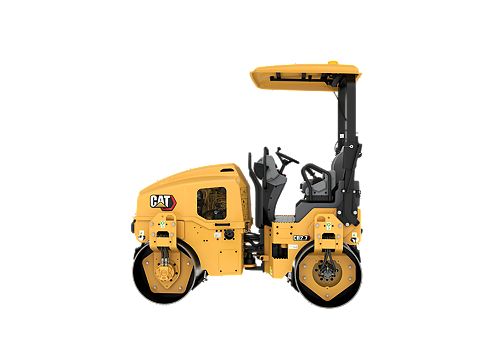

The CB2.7 is a 2.7 to 3 metric ton compactor with 1200 mm (47 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
| Weights | |
|---|---|
| Standard Operating Weight with ROPS | 5936 lb / 2698 kg |
| Maximum Weight at Front Drum | 2861 lb / 1301 kg |
| Maximum Operating Weight with ROPS | 5936 lb / 2698 kg |
| Maximum Weight at Rear Drum | 1398 lb / 3075 kg |
| Static Linear Load | 60.6 lb/in / 13 kg/cm |
| Dimensions | |
|---|---|
| Compaction Width | 47.2 in / 1200 mm |
| Drum Diameter | 28.3 in / 720 mm |
| Overall Width | 51.7 in / 1312 mm |
| Height - ROPS | 70.8 in / 1799 mm |
| Overall Length | 99.2 in / 2520 mm |
| Drum Width | 47.2 in / 1200 mm |
| Wheel Base | 70.9 in / 1800 mm |
| Operating Specifications | |
|---|---|
| Turning Radius - Outside Drum Edge | 3740 mm / 147.2 in |
| Drum Offset | 2 in / 50 mm |
| Travel Speed - Maximum | 7.5 mile/h / 12 km/h |
| Static Linear Load | 70.6 lb/in / 12.6 kg/cm |
| Turning Radius - Inside Drum Edge | 100 in / 2540 mm |
| Curb Clearance | 17.8 in / 453 mm |
| Ground Clearance | 11.2 in / 285 mm |
| Engine | |
|---|---|
| Gross Power | 48.2 hp / 36 kW |
| Net Power - ISO 9249 | 47.6 hp / 35.5 kW |
| Engine Model | C1.7T |
| Vibratory System | |
|---|---|
| Frequency | 64/53 Hz (3840/3180 vpm) |
| Frequency | 3840 V/mm / 64 Hz |
| Centrifugal Force - Maximum | 7929 lb / 35 kN |
| Nominal Amplitude - High | 0.02 in / 0.52 mm |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 14.37 gal (US) / 55 l |
| Water Spray Tank Capacity | 52.8 gal (US) / 200 l |
