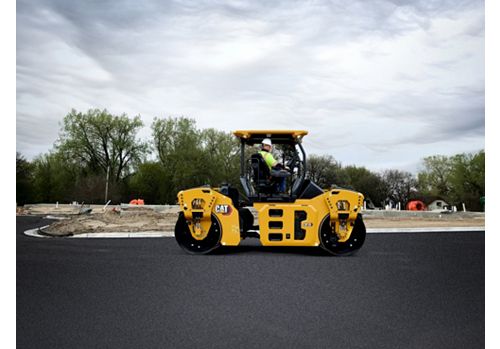

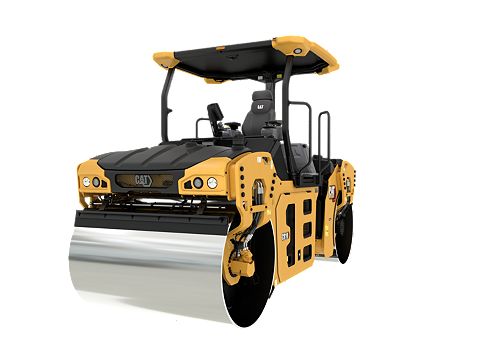

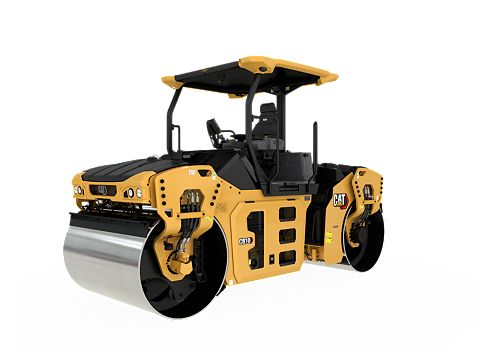

CB10

Weights
Standard Operating Weight with ROPS	21638 lb / 9815 kg

Operating Specifications
Standard Compaction Width	67 in / 1700 mm
Maximum Compaction Width	73 in / 1870 mm
Travel Speed - Maximum	7 mile/h / 11 km/h
Static Linear Load	169 lb/in / 30 kg/cm

Engine
Engine Model	Cat? C3.6
Engine Power (1)	120 HP / 90 kW

Dimensions
Wheel Base	139 in / 3540 mm
Drum Diameter	47 in / 1198 mm
Height - With ROPS/FOPS	118 in / 2984 mm
Overall Length	186 in / 4740 mm
Overall Width	85 in / 2176 mm

Vibratory System
Drum Width	67 in / 1700 mm
Centrifugal Force per Drum - Maximum	19490 lb / 86.7 kN
Centrifugal Force per Drum - Minimum	13084 lb / 58.2 kN
Nominal Amplitude - High	0.034 in / 0.86 mm
Nominal Amplitude - Low	0.01 in / 0.26 mm
Vibration Selection	Independent per drum, front only, rear only, both

Service Refill Capacities
Fuel Tank Capacity	36.5 gal (US) / 138 l
Water Spray Tank Capacity	225 gal (US) / 855 l

Standard Equipment

Operating Environment
- 180° seat positioning w/ sliding station
- Adjustable armrests
- Platform ROPS/FOPS
- Propel lever w/ 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- Seatbelt - 76 mm (3 in) high visibility
- Full-color display with touchscreen operation
- Vandalism protection
Technology
- Product Link™ PLE743
- Remote flash
- Remote troubleshooting
Powertrain
- C3.6 4-cylinder
Electrical System
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Batteries - maintenance free
- Cat® Electronic Technician (Cat ET)
- Remote start / charge receptacle
Vibratory System
- Two amplitude/two frequency - both drums
Service and Maintenance
- Maintenance-free hitch
- 3 year/3000 hour conventional vibratory system service interval
- 2 year/2000 hour oscillatory vibration system service interval
- Grouped filters with ground level access
- Remote access drains
- Sampling ports for Scheduled Oil Sampling (S•O•S?)
- Sight gauges - engine coolant and hydraulic oil
Safety
- Alarm, back up
- Horn, warning (front and rear)
- LED working lights
- Warning, LED safety beacons
- Steps, front drum fuel refill

Optional Equipment

Operating Environment
- 360° seat positioning w/sliding station
- Steering wheel - elevated position, left side
- Suspension seat - with heat
- Seat headrest
Technology
- Infrared asphalt temperature sensors
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Machine to Machine Communications
- Product Link PLE783
Powertrain
- Hitch - offset
- Hydraulic oil - biodegradeable
Vibratory System
- Versa VibeTM - both drums
- Two amplitude/two frequency w/ oscillation
- Versa Vibe w/ oscillation
- Mats - cocoa
- Mats - water distribution
- Freeze protection - water spray system
- Rear drum oscillation kit - field installed drum
Safety
- LED auxiliary lighting - 1000/2000 lumin
- LED working lights w/ turn signal
- Mirror package
- Steps, rear drum water spray refill

Compact

Cat® Compact technologies combine advanced compaction measurement, in-cab guidance and reporting capabilities to help you consistently meet compaction targets faster, more uniformly, and in fewer passes—saving on fuel and reducing rework and material costs in both soil and asphalt applications.

Model
Cat Compact with Temperature Indication
Cat Compact with Compaction Meter Value (CMV)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
