816

Gross Power (SAE J1995:2014)
284 hp / 212 kW
Net Power (SAE J1349:2011)
249 hp / 186 kW
Net Power (ISO 9249:2007)
249 hp / 186 kW

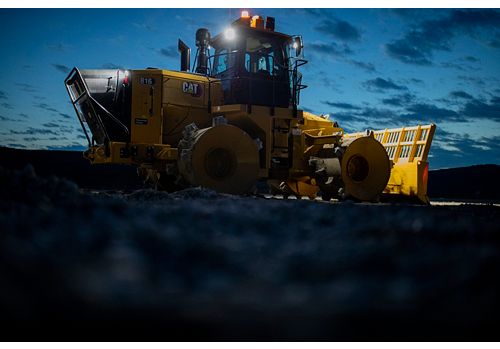

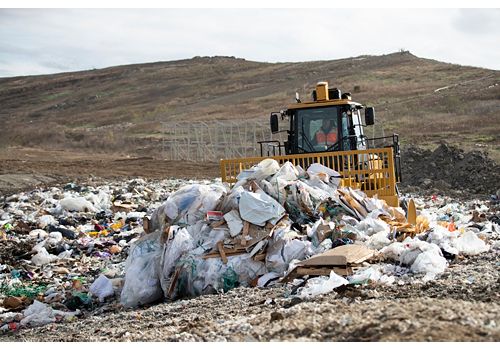

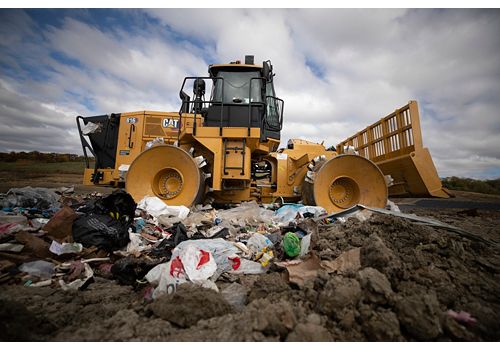

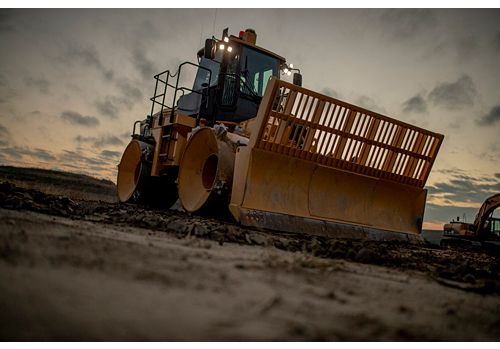

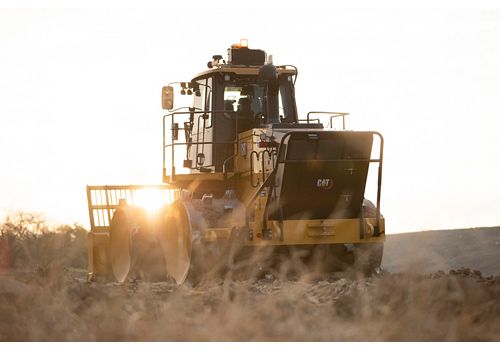

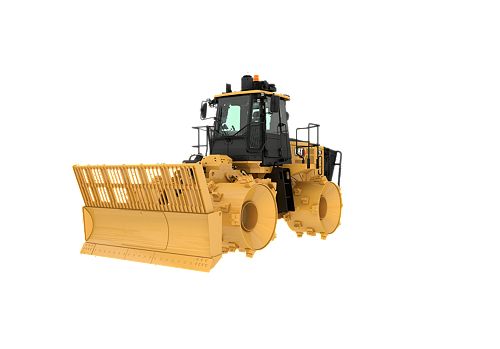

Purpose-built for landfill operation, the Cat 816 delivers features, performance and efficiency that come from over 45-plus years of industry leadership. Field-proven protection and integrated technologies provide peak availability and optimized landfill performance.

Loan Calculator Credit Application
Build & Quote
alt 1
816 Product Brochure (Global) 816 Compactor Key Features (Global) 816 Technical Specifications (Aus-NZ, Eur, Japan, Korea, N Am)
Engine - Tier 4 Final/EU Stage V
Gross Power (SAE J1995:2014) 284 hp / 212 kW
Net Power (SAE J1349:2011) 249 hp / 186 kW
Net Power (ISO 9249:2007) 249 hp / 186 kW
Engine Model Cat C7.1
Emissions Meets U.S. EPA Tier 4 Final/ EU Stage V/Japan 2014/ Korea Tier 4 Final emission standards
Rated Speed 2200 r/min
Engine Power (ISO 14396:2002) 275 hp / 205 kW
Peak Torque - 1,400 rpm 902 ft-lb / 1223 N·m
Torque Rise 52%
Bore 4.1 in / 105 mm
Stroke 5.3 in / 135 mm
Displacement 427.8 in³ / 7.01 l
High Idle Speed 2270 r/min
Low Idle Speed 800 r/min
Maximum Altitude without Derating 9842.5 ft / 3000 m
Note *Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA
Engine Model Cat C7.1
Emissions Brazil MAR-1 and China Nonroad Stage III, equivalent to Tier 3/EU Stage IIIA
Rated Speed 2200 r/min
Net Power (SAE J1349:2011) 249 hp / 186 kW
Gross Power (SAE J1995:2014) 286 hp / 213 kW
Engine Power (ISO 14396:2002) 275 hp / 205 kW
Peak Torque - 1,400 rpm 749 ft-lb / 1016 N·m
Torque Rise 26%
Bore 4.1 in / 105 mm
Stroke 5.3 in / 135 mm
Displacement 427.8 in³ / 7.01 l
High Idle Speed 2270 r/min
Low Idle Speed 800 r/min
Maximum Altitude without Derating 9842.5 ft / 3000 m
Note *Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Operating Specifications - Tier 4 Final/EU Stage V
Operating Weight 57345 lb / 26052 kg
Operating Specifications - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA
Operating Weight 56793 lb / 25760 kg
Transmission
Transmission Type Cat Planetary Power Shift
Travel Speeds - Forward - First 4.1 mile/h / 6.7 km/h
Travel Speeds - Forward - Second 7.5 mile/h / 12 km/h
Travel Speeds - Reverse - First 4.8 mile/h / 7.7 km/h
Travel Speeds - Reverse - Second 8.5 mile/h / 12 km/h
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit Pilot operated LS valve with EH
Lift/Tilt System Variable displacement piston
Maximum Flow at 2,200 rpm 23.5 gal/min / 89 l/min
Relief Valve Setting - Lift/Tilt 3190 psi / 22000 kPa
Pilot System Open center, fixed displacement gear
Pilot Relief Valve Setting 3046 psi / 21000 kPa
Hydraulic System - Steering
Steering System - Circuit Pilot, Load Sensing
Steering System - Pump Piston – Variable Displacement
Maximum Flow at 2,200 rpm 38.8 gal/min / 147 l/min
Relief Valve Setting - Steering 4003 psi / 27600 kPa
Total Steering Angle 84
Steering Cycle Times - High Idle 3 s
Steering Cycle Times - Low Idle 8.2 s
Service Refill Capacities
Fuel Tank 132.1 gal (US) / 500 l
Diesel Exhaust Fluid Tank* 4.2 gal (US) / 16 l
Cooling Systems - Tier 4 Final/EU Stage V 21.4 gal (US) / 81 l
Cooling System - Tier 3/Stage IIIA Equivalent 19.3 gal (US) / 73 l
Engine Crankcase 5.3 gal (US) / 20 l
Transmission 14.8 gal (US) / 56 l
Differential - Final Drives - Front 11.4 gal (US) / 43 l
Differential - Final Drives - Rear 11.4 gal (US) / 43 l
Hydraulic System - Implement/Steering 46.2 gal (US) / 175 l
Hydraulic Tank Only 19.8 gal (US) / 75 l
Note All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for the EPA, 10 ppm for the EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1.
Axles
Front Planetary – Fixed
Rear Planetary – Oscillating
Oscillation Angle ±6°
Braking System
Service Brakes Single Disc Wet (Enclosed) 2 WHL
Parking Brake Drum and Shoe, Spring Applied, Hydraulic Released
Sound Performance - Tier 4 Final/EU Stage V - Standard
Operator Sound Level (ISO 6396) 70 dB(A)
Machine Sound Level (ISO 6395) 111 dB(A)
Sound Performance - Tier 4 Final/EU Stage V - Suppression
Operator Sound Level (ISO 6396) 70 dB(A)
Machine Sound Level (ISO 6395) 109 dB(A)
Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Standard
Operator Sound Level (ISO 6396) 70 dB(A)
Machine Sound Level (ISO 6395) 112 dB(A)
Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Suppression
Operator Sound Level (ISO 6396) 70 dB(A)
Dimensions (Approximate)
Height - Top of Beacon 14.3 ft / 4368 mm
Height to Top of Air Conditioning Condenser 13.7 ft / 4161 mm
Height - Cab Roof 12.7 ft / 3878 mm
Height - Top of Exhaust Pipe 11.6 ft / 3547 mm
Height - Top of Hood 9.1 ft / 2770 mm
Height to Top of Rear Compactor Guard 8.2 ft / 2499 mm
Ground Clearance to Hitch 1.7 ft / 519 mm
Ground Clearance to Bottom of Bumper 2.7 ft / 818 mm
Centerline of Rear Axle to Bumper 6.5 ft / 1990 mm
Centerline of Rear Axle to Rear Compactor Guard 8.6 ft / 2614 mm
Hitch to Centerline of Front Axle 5.5 ft / 1675 mm
Wheel Base 11 ft / 3350 mm
Width over Front Striker Bars 9.8 ft / 3000 mm
Width over Rear Striker Bars 10 ft / 3036 mm
Width over Platform 10.3 ft / 3140 mm
Width over Drums 11 ft / 3338 mm
Overall Machine Length with Straight Blade 25.6 ft / 7806 mm
Straight Blade
Capacity 13.08 yd³ / 10 m³
Height 6.4 ft / 1961 mm
Height of Cutting Edge 3.2 ft / 990 mm
Turning Radius - Inside Corner of Blade 9.5 ft / 2910 mm
Wheels
Combination Tips (Weight Group) 13554 lb / 6148 kg
Plus Tips - Weight (Group) 13982 lb / 6342 kg
Paddle Tips - Weight (Group) 13126 lb / 5954 kg
Chopper Tips (Weight Group) 12639 lb / 5733 kg
Outside Diameter 67.6 in / 1717 mm
Drum Diameter 55.1 in / 1400 mm
Drum Width 40 in / 1016 mm
Feet Per Row 5
Feet Per Wheel 20
Replaceable Weld On
Width Over Drums 131.4 in / 3338 mm
Tip Height 6.25 in / 159 mm

Standard Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • POWER TRAIN
    • Advanced Productivity Electronic Control Shifting (APECS)
    • Air to air aftercooler
    • Brakes, full hydraulic, enclosed, wet multiple disc service brakes
    • Cat clean emission module (Tier 4 Final/Stage V only)
    • Electro-hydraulic parking brake
    • Electronic Clutch Pressure Control (ECPC)
    • Engine, Cat C7.1 (configured for two emissions options): – Tier 4 Final/Stage V – Tier 3/EU Stage IIIA equivalent
    • Engine driven cooling fan (suction)
    • Fuel priming pump (electric)
    • Fuel to air cooler
    • Ground level engine shutoff
    • Muffler (under hood) (Tier 3/Stage IIIA equivalent only)
    • Radiator, unit core
    • Starting aid (ether)
    • Throttle lock
    • Transmission, planetary with 2F/2R speed range control
    • Torque converter
  • ELECTRICAL
    • Alarm, back-up
    • Alternator (150 amp)
    • Batteries, maintenance free
    • Electrical system (24 volt)
    • Ground level lockable master disconnect switch
    • Light, warning unswitched (LED strobe)
    • Lighting system (front and rear)
    • Starter, electric
    • Starting receptacle for emergency start
  • OPERATOR ENVIRONMENT
    • 12-volt power port for mobile phone or laptop connection
    • AccuGrade™ mapping (ready)
    • Air conditioner with roof mounted condenser
    • Cab, sound-suppressed pressurized
    • Camera, rear vision
    • Coat and hard hat hooks
    • Finger tip shifting controls
    • Flip-up armrest
    • Heater and defroster
    • Horn, electric
    • Hydraulic controls – floor mounted
    • Implement hydraulic lockout
    • Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage V only) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque convertor temperature
    • Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
    • Internal four-post rollover protective structure (ROPS/FOPS)
    • Light, (dome) cab
    • Lunch box and beverage holders
    • Mirror, internal (panoramic)
    • Mirrors, heated rearview (externally mounted)
    • Radio, CB ready
    • Radio ready for entertainment: – Antenna – Speakers – Converter (12-volt 10-15 amp)
    • Seat belt with minder, retractable, 76 mm (3") wide
    • STIC control system with lockout
    • Sun visor, front
    • Tinted glass
    • Transmission gear (indicator)
    • Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles – Event indicator light on rear grill
    • Wet-arm wipers/washers (front and rear): – Intermittent wipers (front and rear)
    • Seat, Cat Premium Plus (Leather)
  • GUARDS
    • Guards, axle (front and rear)
    • Guard, cab window
    • Guards, crankcase and power train, hinged
    • Guard, driveshaft
    • Guard, radiator
    • Striker bars
  • FLUIDS
    • Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
  • OTHER STANDARD EQUIPMENT
    • DEF tank fill gauge (Tier 4 Final/Stage V only)
    • Doors, service access (locking)
    • Ecology drains for engine, radiator, transmission, hydraulic tank
    • Engine, crankcase, 500 hour interval with CJ-4 oil
    • Emergency egress
    • Fire suppression ready
    • Fuel tank, 500 L (132 gal)
    • Hitch, drawbar with pin
    • Hoses, Cat XT™
    • Hydraulic, engine, and transmission oil coolers
    • Oil change system, high speed
    • Oil sampling valves
    • Steering, load sensing
    • Total hydraulic filtration system
    • Vandalism protection caplocks
    • Venturi stack
  • STANDARD ATTACHMENTS – OPERATOR ENVIRONMENT
    • Glass (window): – rubber-mounted glass
    • Horn group (standard)
    • Horn group (trumpet)
    • Lights – cab: – Standard or LED
    • Mirrors – cab: – Standard or heated
    • Precleaner – cab: – Standard or powered
    • Seat – cab: – Standard or heated and ventilated
  • STANDARD ATTACHMENTS – POWER TRAIN
    • Axles: – Axle arrangement (no spin front) – Axle arrangement (no spin rear) – Axle arrangement (no spin front and rear)
  • STANDARD ATTACHMENTS – SPECIAL ARRANGEMENTS
    • Engine precleaners: – Turbine or dual stage
  • STANDARD ATTACHMENTS – BLADES
    • Dozer Arrangement – Standard (No Blade)
    • Dozer Arrangement – Straight Blade
    • Dozer Arrangement – Tilt (No Blade)
  • STANDARD ATTACHMENTS – TECHNOLOGY PRODUCTS
    • Product Link: – GSM, satellite
  • STANDARD ATTACHMENTS – WHEELS AND CLEANER BARS
    • Wheels and tips: – Wheel arrangement (6.25" plus tip) – Wheel arrangement (6.25" paddle tip) – Wheel arrangement (6.25" plus and paddle) – Wheels, chopper
    • Bar group – cleaner (cleaner fingers and striker bar)

Optional Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • OPERATOR ENVIRONMENT
    • Radio, AM/FM/AUX/USB/BLUETOOTH
  • FLUIDS
    • Antifreeze, –50° C (–58° F)
  • SPECIAL ARRANGEMENTS
    • Engine: – Sound suppression
  • STARTING AIDS
    • Heater, engine coolant, 120V
    • Heater, engine coolant, 240V
  • MISCELLANEOUS
    • Film (ANSI) (Tier 4 Final/Stage V only)
    • EU certification (Tier 4 Final/Stage V only)
    • Plate – year of manufacture (Tier 3/EU Stage IIIA equivalent only)
