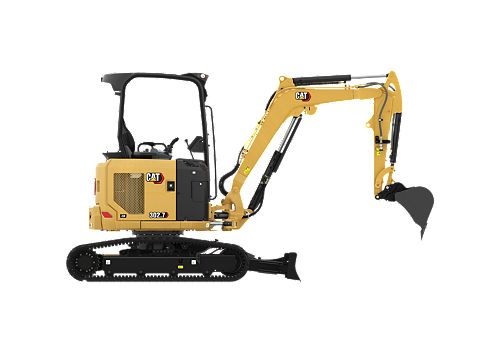

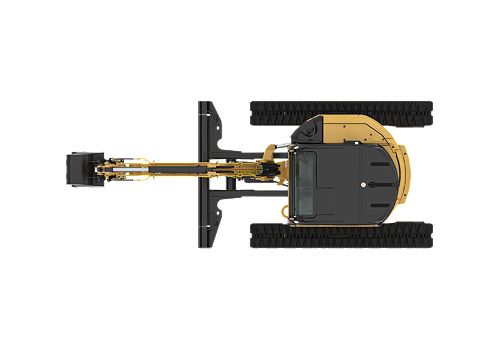

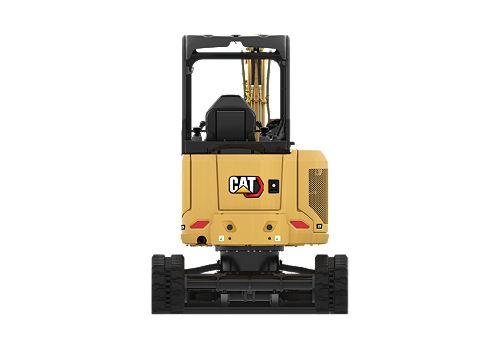

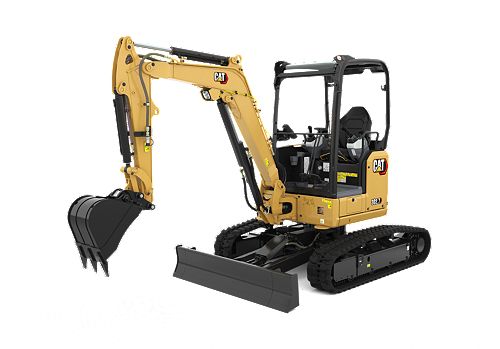

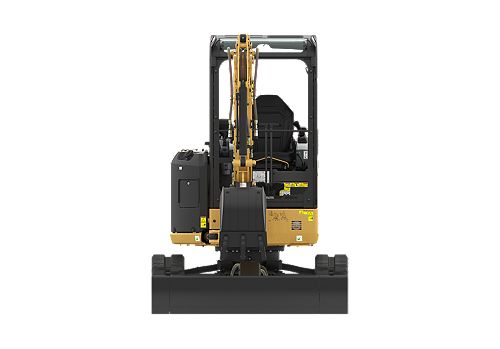

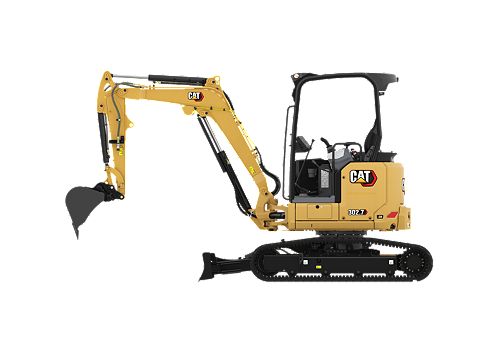

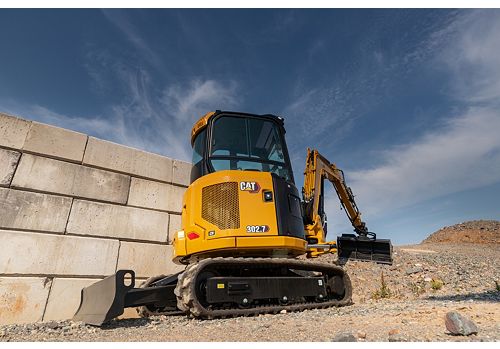

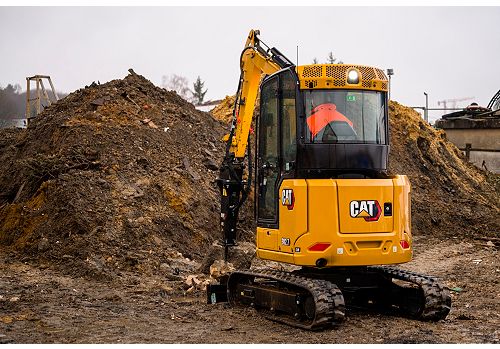

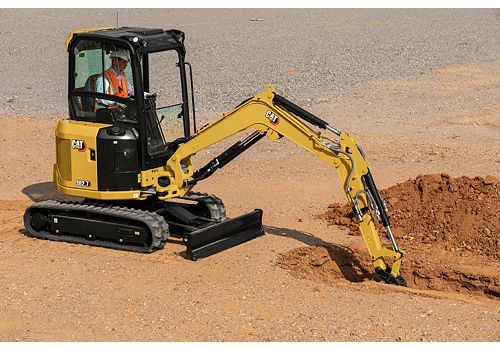

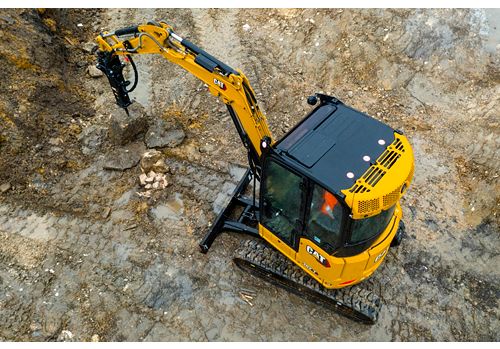

302.7 CR

Specifications
Equipment
Related Products

Engine
Net Power	23.6 HP / 17.6 kW
Engine Model	C1.1 Turbo
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	23.6 HP / 17.6 kW
Note	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Bore	3 in / 77 mm
Displacement	69 in³ / 1.1 l
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Stroke	3.2 in / 81 mm
Gross Power - 2,400 rpm - SAE J1995:2014	24.7 HP / 18.4 kW

Weights
Operating Weight	6725 lb / 3050 kg
Minimum Operating Weight with Canopy*	5645 lb / 2560 kg
Maximum Operating Weight with Canopy**	6450 lb / 2925 kg
Minimum Operating Weight with Cab*	5909 lb / 2680 kg
EU: CE Plate Weight with Canopy***	5942 lb / 2695 kg
EU: CE Plate Weight with Cab***	6174 lb / 2800 kg
Note (2)	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.
Note (1)	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
Maximum Operating Weight with Cab**	6725 lb / 3050 kg
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Weight Increase from Minimum Configuration
Long Stick	33 lb / 15 kg
Steel Tracks	221 lb / 100 kg
Cab	276 lb / 125 kg
Counterweight (extra)	551 lb / 250 kg
Counterweight (light)	221 lb / 100 kg

Travel System
Ground Pressure - Maximum Weight	4.2 psi / 29 kPa
Ground Pressure - Minimum Weight	3.5 psi / 24.2 kPa
Travel Speed - Low	1.6 mile/h / 2.6 km/h
Gradeability - Maximum	30 degrees
Maximum Traction Force - High Speed	3507 lbf / 15.6 kN
Travel Speed - High	2.8 mile/h / 4.5 km/h
Maximum Traction Force - Low Speed	6025 lbf / 26.8 kN

Service Refill Capacities
Hydraulic System	9.2 gal (US) / 35 l
Hydraulic Tank	4.8 gal (US) / 18 l
Fuel Tank	11.9 gal (US) / 45 l
Engine Oil	1.1 gal (US) / 4 l
Cooling System	1.1 gal (US) / 4 l

Hydraulic System
Digging Force - Stick - Standard	3102 lbf / 13.8 kN
Auxiliary Circuit - Primary - Pressure	3553 psi / 245 bar
Operating Pressure - Swing	2553 psi / 176 bar
Auxiliary Circuit - Secondary - Flow	7 gal/min / 25 l/min
Auxiliary Circuit - Primary - Flow	17 gal/min / 65 l/min
Auxiliary Circuit - Secondary - Pressure	3553 psi / 245 bar
Operating Pressure - Equipment	3553 psi / 245 bar
Digging Force - Stick - Long	2765 lbf / 12.3 kN
Digging Force - Bucket	5238 lbf / 23.3 kN
Operating Pressure - Travel	3553 psi / 245 bar
Pump Flow at 2,400 rpm	26 gal/min / 100 l/min
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Swing System
Machine Swing Speed	9 r/min
Boom Swing - Left	75 Degrees
Boom Swing - Right	50 Degrees

Blade
Height	12.6 in / 320 mm
Width	61.8 in / 1570 mm

Certification - Cab and Canopy
Top Guard	ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)	ISO 12117:1997
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008

Sound
Operator Sound Pressure (ISO 6396:2008)	78 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	94 dB(A)
Note	European Union Directive “2000/14/EC”

Dimensions - Standard Stick
Overall Shipping Length*	166.9 in / 4240 mm
Boom In Reach	67.3 in / 1710 mm
O/A Shipping Height	97.6 in / 2480 mm
Swing Bearing - Height	22 in / 560 mm
Stick Length	41.7 in / 1060 mm
Maximum Reach	183.5 in / 4660 mm
Maximum Dump Clearance	116.1 in / 2950 mm
Maximum Dig Height	168.1 in / 4270 mm
Tail Swing without Counterweight	30.5 in / 775 mm
Tail Swing with Extra Counterweight	35 in / 890 mm
Boom Swing - Right	32.7 in / 830 mm
O/A Undercarriage Length	79.1 in / 2010 mm
Vertical Wall	73.6 in / 1870 mm
Note	*Overall Shipping Length depends on blade position during shipment.
Maximum Reach - Ground Level	177.6 in / 4510 mm
Dig Depth	98.8 in / 2510 mm
Track Belt/Shoe Width	11.8 in / 300 mm
Maximum Blade Height	15.6 in / 395 mm
Maximum Blade Depth	20.3 in / 515 mm
Boom Swing - Left	23.8 in / 605 mm
Ground Clearance	12.2 in / 310 mm
Boom Height - Shipping Position	61.4 in / 1560 mm
Tail Swing - with Light Counterweight	33.3 in / 845 mm

Dimensions - Long Stick
Dig Depth	106.7 in / 2710 mm
Boom Height - Shipping Position	65 in / 1650 mm
Boom Swing - Right	32.7 in / 830 mm
Maximum Reach - Ground Level	185.4 in / 4710 mm
Maximum Blade Height	15.6 in / 395 mm
Maximum Reach	190.9 in / 4850 mm
Boom Swing - Left	23.8 in / 605 mm
Maximum Blade Depth	20.3 in / 515 mm
O/A Shipping Height	97.6 in / 2480 mm
Maximum Dig Height	172.8 in / 4390 mm
Stick Length	49.6 in / 1260 mm
Tail Swing without Counterweight	30.5 in / 775 mm
Boom In Reach	68.1 in / 1730 mm
Maximum Dump Clearance	120.9 in / 3070 mm
Swing Bearing - Height	22 in / 560 mm
Vertical Wall	80.7 in / 2050 mm
O/A Undercarriage Length	79.1 in / 2010 mm
Ground Clearance	12.2 in / 310 mm
Track Belt/Shoe Width	11.8 in / 300 mm
Overall Shipping Length*	168.5 in / 4280 mm
Note	*Overall Shipping Length depends on blade position during shipment.
Tail Swing - with Extra Counterweight	35 in / 890 mm
Track Width	61.8 in / 1570 mm
Tail Swing - with Light Counterweight	33.3 in / 845 mm

Sustainability
Recyclability	95%

Standard Equipment

ENGINE
- Cat® C1.1 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Two Speed Travel
- Fuel Water Separator
- Power on Demand (not available in all regions)
- Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
HYDRAULICS
- Smart Tech Electronic Pump
- Accumulator
- Automatic Swing Brake
- Auxiliary Hydraulic Lines
- One and Two Way Auxiliary Flow
- Continuous Auxiliary Flow
- Auxiliary Line Quick Disconnects
OPERATOR ENVIRONMENT
- Tilt-up Canopy or Tilt-Up Cab
- Top Guard ISO 10262:1998 Level I
- ROPS – ISO 12117-2:2008
- TOPS – ISO 12117:1997
- Stick Steer Mode
- Travel Cruise Control
- Control Pattern Changer (optional in some regions)
- Adjustable Wrist Rests
- Washable Floor Mat
- Travel Pedals and Hand Levers
- Machine Security
- Standard Key with Pass Code
- Fabric Suspension Seat (Cab only)
- Vinyl Suspension Seat (Canopy only)
- Hydraulic Lockout – All Controls
- Retractable High Visibility Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- Storage Pocket
- Skylight
- Mounting Bosses for Front
- Signaling/Warning Horn
- Interior Light (Cab only)
- Boom Light, Halogen (not available in all regions)
- Utility Space for Mobile Phone
- Next Generation Color LCD Monitor (IP66)
  – Fuel Level and Coolant Temperature Gauges
  – Maintenance and Machine Monitoring
  – Performance and Machine Adjustments
  – Numeric Security Code
  – Multiple Languages
  – Hour Meter with Wake Up Switch
  – Jog Dial (Cab only)
UNDERCARRIAGE
- Rubber Belt (300 mm/11.8 in wide)
- Dozer Blade
- Dozer Blade Float
- Tie Downs on Track Frame
BOOM, STICK AND LINKAGES
- One Piece Boom (2085 mm/82.1 in)
- Standard Stick (1060 mm/41.7 in)
- Front Shovel Capable
- Front Shovel Capable – Pin-On
- Thumb Ready (not available in all regions)
- Certified Lifting Eye (optional in some regions)
ELECTRICAL
- 12 Volt Battery
- Software (machine and monitor)
- Maintenance Free Battery
- Battery Disconnect
- Signaling/Warning Horn
- 12 Volt Power Socket

Optional Equipment

OPERATOR ENVIRONMENT
- Cab with Air Conditioning
- Cab with Heater
- No Travel Pedals and Hand Levers (optional in some regions)
- Push to Start with Key Fob/Pass Code
- Vinyl Non-Suspension Seat (Canopy only) (not available in all regions)
- LED Front Lights
- LED Front and Rear Lights
- LED Boom Light
- Mirrors Left and Right
- Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
- Next Generation Advanced Monitor
  – Touchscreen
  – Site Reference System
  – High Definition Camera Capable (IP68 and IP69K)
  – Numeric Security Code
UNDERCARRIAGE
- Steel Track (300 mm/11.8 in wide)
BOOM, STICK AND LINKAGES
- Long Stick (1260 mm/49.6 in)
- Front Shovel Capable – Dual Lock Manual Coupler
- Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
- 2nd Auxiliary Hydraulic Lines
- Bucket Divert Lines
- Boom Lowering Check Valve
- Stick Lowering Check Valve
- Hydraulic Quick Coupler Lines (not available in all regions)
ELECTRICAL
- Product Link PL243 (regulations apply)
- Product Link PLE643 (regulations apply)
- Travel Alarm (standard in some regions)
GUARDING
- Polycarbonate Half Height Front Guard (Canopy only)
- Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 P5A)
OTHER
- Bio Oil Capable
- Eco Drain
- Water Jacket Heater
- Light Counterweight (100 kg/221 lb)
- Extra Counterweight (250 kg/551 lb)

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A11	815 lb/ft / 1105 N·m	Gerotor Motor - Direct Drive	2 Ton Mini Excavator Pin On
A23	1699.3 lb/ft / 2304 N·m	Gerotor Motor - Direct Drive	2 Ton Mini Excavator Pin On

Digging Buckets - Mini Excavator

These buckets are ideal for digging in soft to moderate ground.

Model	Width	Capacity	Weight
260 mm (10 in)	10.2 in / 260 mm	1 ft³ / 27.5 l	103.4 lb / 46.9 kg
260 mm (10 in)	10.2 in / 260 mm	1.2 ft³ / 34 l	112.2 lb / 50.9 kg
300 mm (12 in)	11.8 in / 300 mm	1.4 ft³ / 39.59 l	111.3 lb / 50.5 kg
300 mm (12 in)	11.8 in / 300 mm	1.2 ft³ / 34.29 l	100.5 lb / 45.59 kg
400 mm (16 in)	15.7 in / 400 mm	1.9 ft³ / 53.79 l	121.3 lb / 55 kg
400 mm (16 in)	15.7 in / 400 m	1.6 ft³ / 45 l	111.1 lb / 50.4 kg
460 mm (18 in)	18.1 in / 460 mm	2.3 ft³ / 65.09 l	130.3 lb / 59.09 kg
460 mm (18 in)	18.1 in / 460 mm	1.9 ft³ / 53.5 l	118.8 lb / 53.9 kg
500 mm (20 in)	19.7 in / 500 mm	2.6 ft³ / 73.59 l	140.2 lb / 63.59 kg
500 mm (20 in)	19.7 in / 500 mm	2.1 ft³ / 59.7 l	129 lb / 58.5 kg
600 mm (24 in)	23.6 in / 600 mm	3.2 ft³ / 90.59 l	155.4 lb / 70.5 kg
600 mm (24 in)	23.6 in / 600 mm	2.7 ft³ / 76.19 l	142.6 lb / 64.69 kg
700 mm (28 in)	27.6 in / 700 mm	3.2 ft³ / 92 l	156.3 lb / 70.9 kg

Ditch Cleaning Buckets - Mini Excavator

Used in ditch cleaning, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
800 mm (32 in)	31.5 in / 800 mm	2.8 ft³ / 79.3 l	179.5 lb / 81.4 kg
1000 mm (39 in)	39.4 in / 1000 mm	3.6 ft³ / 101.9 l	172.4 lb / 78.19 kg
1200 mm (47 in)	47.2 in / 1200 mm	4.1 ft³ / 116.09 l	193.3 lb / 87.69 kg

Grading Buckets - Mini Excavator

For cleaning ditches, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
1000 mm (39 in)	39.4 in / 1000 mm	6.1 ft³ / 173 l	181.4 lb / 82.3 kg
