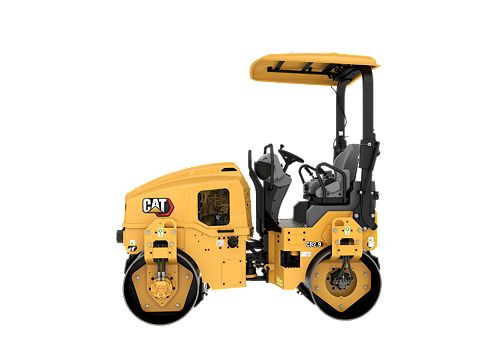

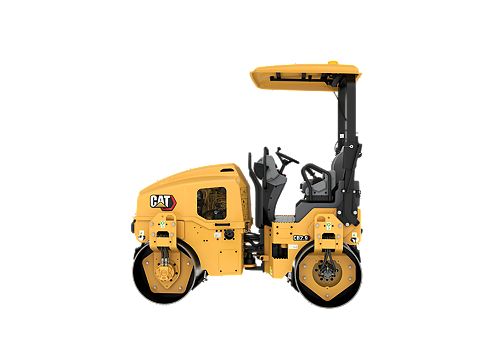

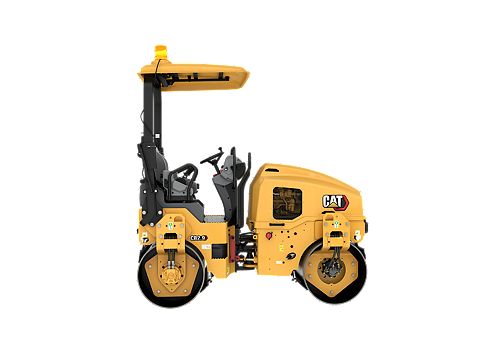

CB2.9

Standard Operating Weight with ROPS
6415 lb / 2916 kg
Compaction Width
51.2 in / 1300 mm
Gross Power
48.2 hp / 36 kW

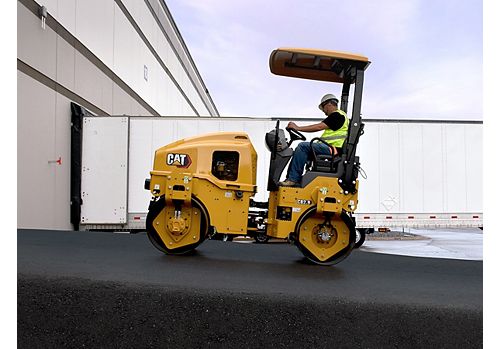

The CB2.9 is a 2.9 to 3 metric ton compactor with 1300 mm (51 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Loan Calculator Credit Application
Build & Quote
alt 1
Key Features Compaction Control Technologies Paving Product Line Brochure Paving Application Guides and eBooks
Weights
Standard Operating Weight with ROPS 6415 lb / 2916 kg
Maximum Weight at Front Drum 3060 lb / 1391 kg
Maximum Operating Weight with ROPS 6415 lb / 2916 kg
Maximum Operating Weight with Cab 6415 lb / 2916 kg
Maximum Weight at Rear Drum 3355 lb / 1525 kg
Static Linear Load 59.8 lb/in / 13.9 kg/cm
Dimensions
Compaction Width 51.2 in / 1300 mm
Drum Diameter 28.3 in / 720 mm
Overall Length 99.2 kg/cm / 2520 mm
Wheel Base 70.9 in / 1800 mm
Overall Width 55.6 in / 1412 mm
Height - ROPS 70.8 in / 1799 mm
Drum Width 51.2 in / 1300 mm
Operating Specifications
Static Linear Load 59.8 lb/in / 13.9 kg/cm
Turning Radius - Inside Drum Edge 98 in / 2490 mm
Travel Speed - Maximum 7.5 mile/h / 12 km/h
Ground Clearance 11.2 in / 285 mm
Turning Radius - Outside Drum Edge 149.2 in / 3790 mm
Curb Clearance 17.8 in / 453 mm
Drum Offset 2 in / 50 mm
Speed Range 12 km/hr 7.5 mph
Engine
Gross Power 48.2 hp / 36 kW
Net Power - ISO 9249 47.6 hp / 35.5 kW
Engine Model C1.7T
Vibratory System
Frequency 3840 VPM / 64 Hz
Nominal Amplitude - High 0.02 in / 0.5 mm
Centrifugal Force - Maximum 8109 lb/ft / 36 kN
Service Refill Capacities
Water Spray Tank Capacity 52.8 gal (US) / 200 l
Fuel Tank Capacity 14.37 gal (US) / 55 l

Standard Equipment

  • OPERATOR ENVIRONMENT
    • Adjustable Suspension Seat with Operator Presense Switch
    • ROPS Folding
    • Seat Belt - 75 mm (3 in) high visibility orange
    • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • COMPACTON SYSTEM
    • Folding Scrapers
    • Vibe Selection - front, rear, or both
    • Pressurized, Triple-Filtration Spray System with Test Mode
  • POWERTRAIN
    • Auto Engine Off and Auto Warmup
    • Air Cleaner, Dual Element
    • Engine Belt Guard
  • TECHNOLOGY
    • Telematics
  • ELECTRICAL
    • LED Working Lights
  • OTHER
    • Vandal Protection - lockable hood, fuel fill, and controls cover
    • Machine Life and Tiedowns
    • Offsets Hitch

Optional Equipment

  • OPERATOR ENVIRONMENT
    • ROPS Fixed
    • Sun Canopy
    • Seat - Side Shift
    • Dual Propel Levers
  • COMPACTON SYSTEM
    • Fixed Scrapers
    • Cocoa Mats
    • Edge Cutter Ready
    • Water Sprayer Antifreeze Kit
    • Ballast Kit - 200 kg (440 lb)
    • Ballast Kit - 400 kg (880 lb)
  • POWERTRAIN
    • Traction Control
  • TECHNOLOGY
    • Remote Flash / Troubleshoot
    • CMV - Compaction Measurement Value
  • ELECTRICAL
    • Battery Disconnect
    • LED Roading Lights
    • Rotating Amber Beacon
  • OTHER
    • Biodegradeable Hydraulic Oil
    • Bumpers
    • Single Point Lift
    • Custom Paint
