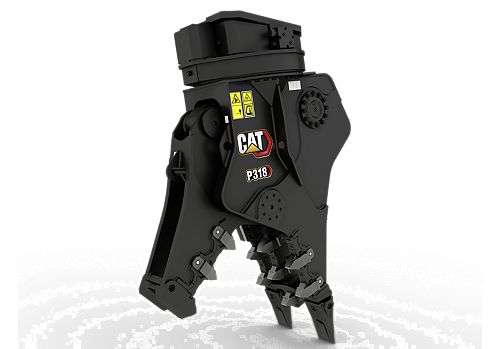

Cat P300 Series Primary Pulverizers are designed for applications such as cutting, breaking, and crushing concrete structures during demolition.
| Performance | |
|---|---|
| Cycle Time - Open | 1.6 s |
| Cycle Time - Close | 1 s |
| Crushing Force - Primary Cutter | 308 Sh Ton / 2740 kN |
| Crushing Force - Tip | 89 Sh Ton / 795 kN |
| Crushing Force - Primary Tooth | 126 Sh Ton / 1120 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 4786 psi / 33000 kPa |
| Jaw Circuit - Max. Oil Flow | 40 gal/min / 150 l/min |
| Rotation Circuit - Max. Oil Pressure | 2031 psi / 14000 kPa |
| Rotation Circuit - Max. Oil Flow | 11 gal/min / 40 l/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 26 in / 660 mm |
| Cutter Length | 5.9 in / 150 mm |
| Jaw Opening - Maximum | 42.7 in / 1085 mm |
| Jaw Width - Fixed | 24.4 in / 620 mm |
| Jaw Width - Moveable | 13.2 in / 335 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 83.7 in / 2125 mm |
| Height | 60 in / 1525 mm |
| Width | 31.1 in / 790 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 4586 lb / 2080 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 18000 kg (39700 lb) |
| Excavator Maximum | 25000 kg (55100 lb) |
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 320 GC - Tier 4 / Stage V | 146 HP / 109 kW | 48500 lb / 22000 kg | 22 ft / 6720 mm |
| 320 - Tier 4 / Stage V | 172 HP / 128.5 kW | 49800 lb / 22600 kg | 22 ft / 6720 mm |
| 323 - Tier 4 / Stage V | 172 HP / 128.5 kW | 55100 lb / 25000 kg | 22.1 ft / 6730 mm |
| 325 - Tier 4 / Stage V | 172 HP / 128.5 kW | 62800 lb / 28500 kg | 22 ft / 6700 mm |
| 326 - Tier 4 / Stage V | 201 HP / 149.8 kW | 56400 lb / 25600 kg | 22.4 ft / 6820 mm |
