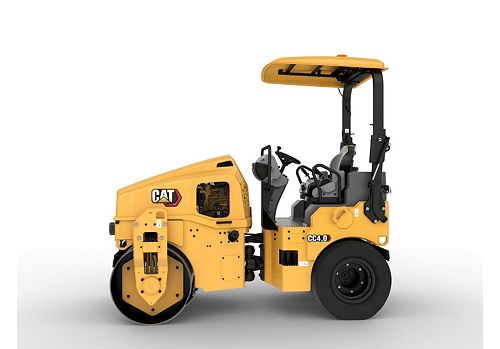

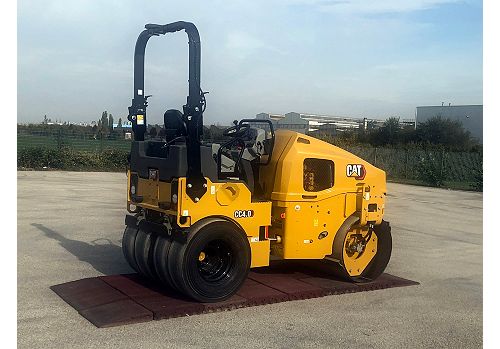

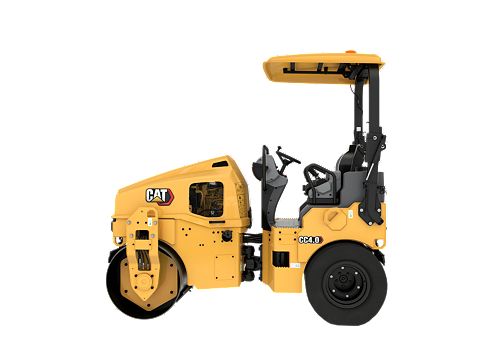

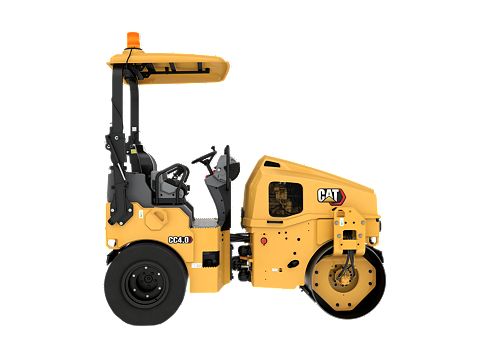

CC4.0

Standard Operating Weight with ROPS: 7889 lb / 3586 kg
Compaction Width: 51.2 in / 1300 mm
Gross Power: 48.2 hp / 36 kW

The CC4.0 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Loan Calculator Credit Application

Build & Quote

Key Features Nomenclature Changes Application Chart Compaction Control Technologies Paving Product Line Brochure

Specifications
Equipment
Related Products

Weights
Standard Operating Weight with ROPS	7889 lb / 3586 kg
Maximum Weight at Front Drum	3918 lb / 1781 kg
Maximum Weight at Rear Drum	3971 lb / 1805 kg
Maximum Operating Weight with ROPS	3936 lb / 8659 kg
Static Linear Load	76.6 lb/in / 13.7 kg/cm

Dimensions
Compaction Width	51.2 in / 1300 mm
Overall Length	112.3 in / 2853 mm
Overall Width	55.1 in / 1400 mm
Drum Width	51.2 in / 1300 mm
Drum Diameter	31.5 in / 800 mm
Wheel Base	80.7 in / 2050 mm
Height - ROPS	104.7 in / 2660 mm

Operating Specifications
Standard Compaction Width	51.2 in / 1300 mm
Drum Offset	2 in / 50 mm
Curb Clearance	19.6 in / 499 mm
Ground Clearance	11.2 in / 284 mm
Travel Speed - Maximum	7.5 mile/h / 12 km/h
Turning Radius - Inside Drum Edge	115.2 in / 2926 mm
Turning Radius - Outside Drum Edge	166.4 in / 4226 mm
Static Linear Load	59.8 lb/in / 13.9 kg/cm

Engine
Gross Power	48.2 hp / 36 kW
Engine Model	C1.7T
Net Power - ISO 9249	47.6 hp / 35.5 kW

Vibratory System
Frequency	55/45 Hz (3300/2700 vpm)
Frequency	3300 VPM / 55 Hz
Nominal Amplitude - High	0.02 in / 0.5 mm
Centrifugal Force - Maximum	7524 lb/ft / 33.47 kN

Service Refill Capacities
Fuel Tank Capacity	21.43 gal (US) / 81 l
Water Spray Tank Capacity	61 gal (US) / 230 l
Tire Spray Tank Capacity	9.2 gal (US) / 34.5 l

Standard Equipment

OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offset Hitch

Optional Equipment

OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint

Compact

Cat® Compact technologies combine advanced compaction measurement, in-cab guidance and reporting capabilities to help you consistently meet compaction targets faster, more uniformly, and in fewer passes—saving on fuel and reducing rework and material costs in both soil and asphalt applications.

Model
Cat Compact with Compaction Meter Value (CMV)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
Cat Inspect
Cat Product Link
