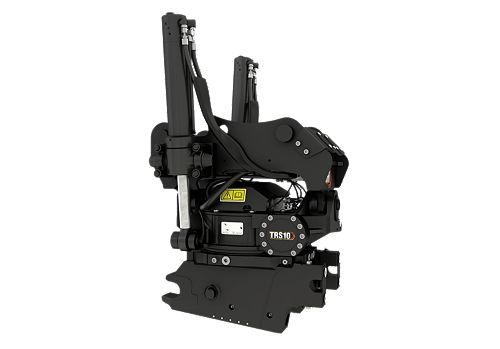

TRS10 Tiltrotator: 605-4732
- Maximum Bucket Capacity
- 1.05 yd³ / 0.8 m³
- Maximum Bucket Width
- 63 in / 1600 mm
- Maximum Operating Pressure
- 3626 psi / 25000 kPa
Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.
| Product Specifications | |
|---|---|
| Machine Class | 11-16 |
| Interface Options: Top-Bottom | HCS60 / HCS60 |
| Rotation Speed | 7 seconds, per 1 full rotation |
| Tilt Angle Range +/- | 40° Left/Right |
| Maximum Bucket Capacity | 1.05 yd³ / 0.8 m³ |
| Maximum Bucket Width | 63 in / 1600 mm |
| Optimal Hydraulic Flow | 91 L/min (24 gpm) |
| Maximum Operating Pressure | 3626 psi / 25000 kPa |
| Tilting Torque | 28470 lb/ft / 38600 N·m |
| Turning Torque | 5635 lb/ft / 7640 N·m |
