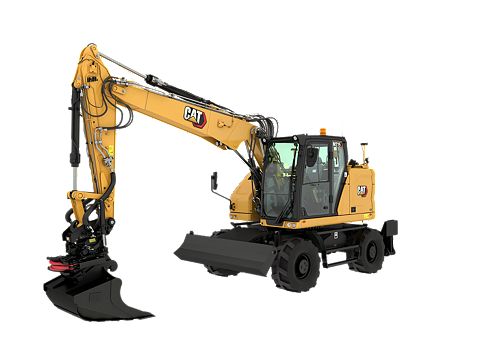

M315

Engine Power - ISO 14396
148 HP / 110 kW
Operating Weight Maximum
39680 lb / 18000 kg
Maximum Travel Speed
21.7 mile/h / 35 km/h

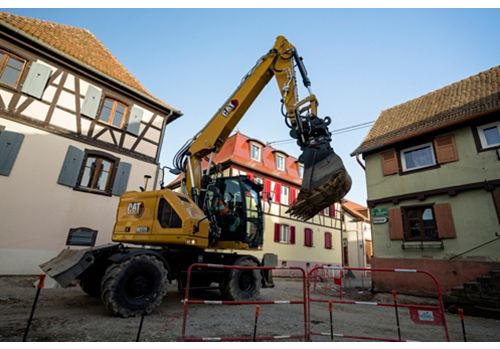

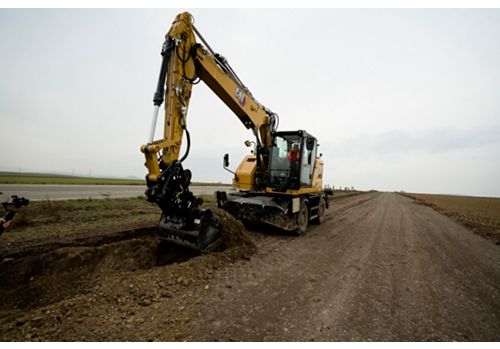

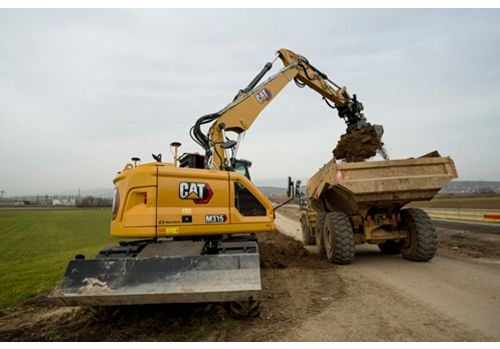

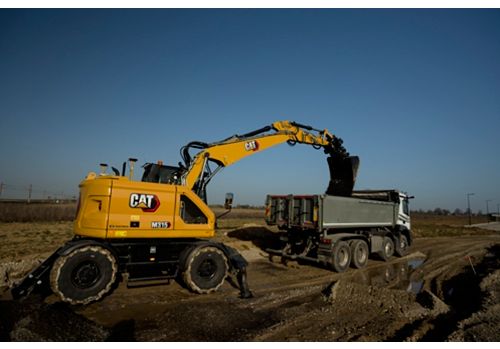

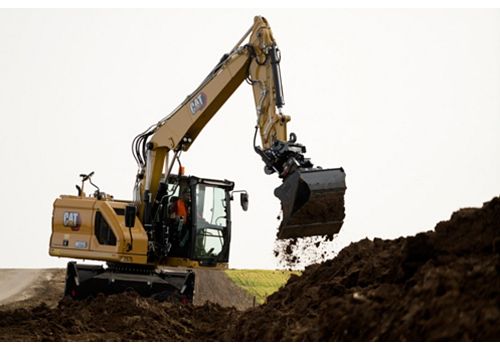

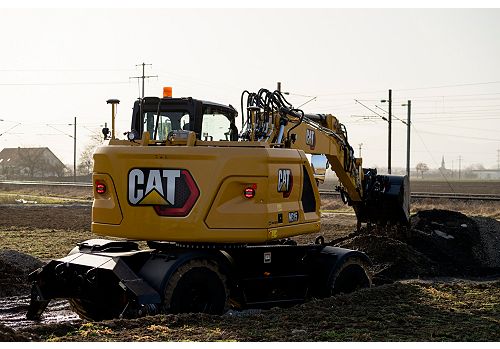

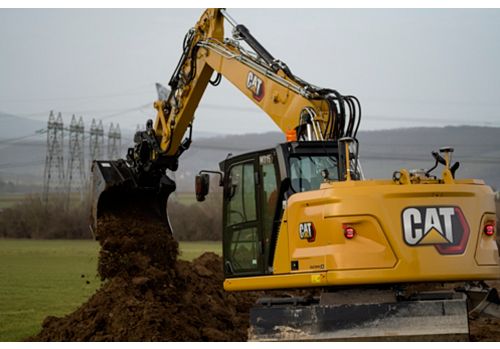

The Cat® M315 Wheeled Excavator provides top performance to get the job done faster. Save time and money with low maintenance costs, longer service intervals, and 100 percent daily ground level maintenance. The compact radius design makes it easy to work in space restricted environments. The M315 gives you the power to work longer while putting money in your pocket.

Loan Calculator Credit Application
Build & Quote
alt 1
M315 Product Brochure (Aus-NZ, Eur, N Am) M315 Technical Specifications (Aus-NZ, Eur, N Am)
Engine
Engine Power - ISO 14396 148 HP / 110 kW
Engine Power - ISO 14396 (DIN) 150 hp (metric)
Engine Model C4.4
Net Power - ISO 9249 145 HP / 108 kW
Net Power - ISO 9249 (DIN) 147 hp (metric)
Bore 4.1 in / 105 mm
Displacement 268.5 in³ / 4.4 l
Stroke 127 mm / 5 in
Biodiesel Capability Up to B20¹
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards.
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, CEM exhaust gas aftertreatment, alternator, and cooling fan with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Hydraulic System
Main System - Maximum Flow - Implement 73 gal/min / 275 l/min
Maximum Pressure - Implement Circuit - Heavy Lift 5366 psi / 37000 kPa
Maximum Pressure - Implement Circuit - Travel Circuit 5076 psi / 35000 kPa
Maximum Pressure - Implement Circuit - Normal 5076 psi / 35000 kPa
Swing Mechanism
Maximum Swing Torque 30340 ft·lbf / 41 kN·m
Swing Speed 9.1 r/min
Machine Weight
Operating Weight Maximum 39680 lb / 18000 kg
Operating Weight Minimum 34610 lb / 15700 kg
Service Refill Capacities
Fuel Tank 74 gal (US) / 280 l
Diesel Exhaust Fluid (DEF) 5.3 gal (US) / 20 l
Cooling System 24 l / 6.3 gal (US)
Hydraulic Tank 23.8 gal (US) / 90 l
Hydraulic System - Including Tank 58.1 gal (US) / 220 l
Transmission
Maximum Travel Speed 21.7 mile/h / 35 km/h
Forward/Reverse - 1st Gear 6.2 mile/h / 10 km/h
Forward/Reverse - 2nd Gear 21.7 mile/h / 35 km/h
Creeper Speed - 1st Gear 3.4 mile/h / 5.5 km/h
Creeper Speed - 2nd Gear 9.3 mile/h / 15 km/h
Drawbar Pull 23380 lbf / 104 kN
Dimensions
Boom VA 5.2 m (17'1")
Stick 2.5m (8'2")
Bucket GD 0.76 m³ (0.99 yd³ )
Shipping Height - Top of Cab 10.9 ft / 3280 mm
Support Point 10.1 ft / 3310 mm
Shipping Length 25.1 ft / 7880 mm
Tail Swing Radius 5.9 ft / 1750 mm
Counterweight Clearance 4.2 ft / 1260 mm
Ground Clearance 1.5 ft / 440 mm
Undercarriage Length 16 ft / 4870 mm
Wheel Base 8.4 ft / 2550 mm
Working Ranges and Forces
Boom Type VA 5.2 m (17'1")
Stick 2.5m (8'2")
Bucket GD 0.76 m³ (0.99 yd³ )
Dump Height 25.2 ft / 7680 mm
Digging Height 18.4 ft / 5580 mm
Reach at Ground Level 29.6 ft / 8980 mm
Vertical Wall Digging Depth 15 ft / 4580 mm
Stick Forces (ISO) 15961 lbf / 71 kN
Bucket Forces (ISO) 23830 lbf / 106 kN
working Ranges and Forces
Cutting Height 34.2 ft / 10410 mm
Air Conditioning System
Note The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 kg of refrigerant which has a CO2 equivalent of 1.144 metric tonnes.

Standard Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • CAB
    • ROPS, sound suppression
    • High-resolution 254 mm (10 in) LCD touchscreen monitor
  • BOOM AND STICKS
    • 5.2 m (17'1") variable adjustable boom
  • ELECTRICAL SYSTEM
    • LED lights on chassis (left-hand, right-hand) and counterweight
    • Programmable time-delay LED working lights
    • Roading and indicator lights, front and rear
    • Maintenance-free batteries
    • Centralized electrical disconnect switch
  • ENGINE
    • Cat C4.4 engine
    • Power mode selector
    • One-touch low idle with auto engine speed control
    • Auto engine idle shutdown
    • 52°C (125°F) high-ambient cooling capacity
    • -18°C (0°F) cold start capability
    • Sealed double element air filter with integrated precleaner
    • Electric fuel priming pump
  • HYDRAULIC SYSTEM
    • Automatic swing brake
    • Auto hydraulic oil warm up
    • Electronic main control valve
    • Boom, stick, and bucket drift reduction valves
    • 1-slider joystick
    • Heavy lift mode
    • Separate dedicated swing pump
    • Adjustable hydraulic aggressiveness
    • Electronic pattern changer
    • Auxiliary high pressure circuit
  • SAFETY AND SECURITY
    • Rear- and right-side-view cameras
    • Wide angle mirrors
    • Ground-level engine shutoff switch
    • Anti-skid plate and countersunk bolts on service platform
  • SERVICE AND MAINTENANCE
    • Sampling ports for Scheduled Oil Sampling (S•O•S)
    • Integrated vehicle health management system
  • TECHNOLOGY
    • VisionLink
    • Remote Flash
    • Remote Troubleshoot
  • UNDERCARRIAGE AND STRUCTURES
    • Creeper speed
    • Electronic swing and travel lock
    • Heavy-duty axles, advanced disc brake system and travel motor, adjustable braking force
    • Oscillating front axle, lockable, with remote greasing point
    • Automatic brake/axle lock
    • 4000 kg (8,820 lb) counterweight
    • All wheel drive

Optional Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • CAB
    • Deluxe cab
    • Premium cab
  • BOOM AND STICKS
    • 2.2 m (7'3") stick
    • 2.5 m (8'2") stick
  • ELECTRICAL SYSTEM
    • Electrical refueling pump
  • HYDRAULIC SYSTEM
    • 2-slider joystick
    • Second high-pressure auxiliary circuit (one/ two-way high-pressure flow)
    • Medium pressure auxiliary circuit (one/two-way medium-pressure flow)
    • Quick coupler circuit
    • SmartBoom™
    • Ride control
    • Cat tiltrotator support
    • Joystick steering
  • SAFETY AND SECURITY
    • 360° visibility
    • Cat asset tracker
    • Signaling/warning horn
  • SERVICE AND MAINTENANCE
    • Automatic lubrication system for implement and swing system
  • TECHNOLOGY
    • Cat Grade Connectivity
    • Cat Grade 2D
    • Cat Grade with Attachment Ready Option (ARO)
    • Cat Grade 3D dual GNSS
    • Laser catcher
    • Grade Assist
    • Cat Payload
    • Cat Tilt Rotator (TRS) Integration
  • UNDERCARRIAGE AND STRUCTURES
    • 10.00-20 16 PR, dual tires
    • 315/70R22.5, no gap dual tires
    • 445/70R 19.5, single tires
    • 300-80-22.5 dual pneumatic, spacerless tire

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with 2D for Excavators
Cat Grade with 3D for Excavators

Detect

On the surface, operators in the cabs of large mining equipment often cannot see if another machine or vehicle is too close for safe operation. Detect helps alleviate this potential safety hazard and can also be configured to provide valuable information about site conditions and other assets working in the area. Underground, continuous equipment movement on a longwall face can pose risks to those in the working area.

Model
Cat 2D E-fence for Excavators

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
Cat Inspect
Cat Product Link
Cat Remote Troubleshooting

Payload

Cat® Payload technologies provide on-the-go load weighing to assist operators with hitting precise load targets every time, helping to reduce load times, optimize loading efficiency and increase jobsite productivity. Operators can track daily productivity from the cab, with quick access to information such as truck target weights, loads and cycle counts, material movement and daily totals. When combined with Cat Link technologies, detailed data can be accessed remotely to manage overall operations and keep production targets on track.

Model
Cat Payload for Excavators

Performance Hammers

Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs. Cat Hammers are high performance breakers, designed to help you get the most from your Cat excavators.

Model Impact Energy Class Blows per Minute Minimum Operating Weight
H110 S 2000 ft·lbf / 2712 J 450-1000 2095 lb / 950 kg
H115 S 3000 ft·lbf / 4067 J 370-800 2359 lb / 1070 kg

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model Machine Class Interface Options: Top-Bottom Rotation Speed
TRS10 Tiltrotator: 605-4735 11-16 HCS60 / S60 7 seconds, per 1 full rotation
TRS10 Tiltrotator: 605-4740 11-16 Pin-on / HCS60 7 seconds, per 1 full rotation
TRS10 Tiltrotator: 605-4732 11-16 HCS60 / HCS60 7 seconds, per 1 full rotation
TRS10 Tiltrotator: 605-4746 11-16 Pin-on High Flow / HCS60 7 seconds, per 1 full rotation
TRS10 Tiltrotator: 605-4738 11-16 Pin-on / HCS60 7 seconds, per 1 full rotation
TRS10 Tiltrotator: 605-4744 11-16 Pin-on High Flow / HCS60 7 seconds, per 1 full rotation

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
VisionLink® Productivity

Vibratory Plate Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model Impulse Force Cycles/Minimum Base Plate Width
CVP75 16508 lb / 74 kN 2200 29 in / 737 mm
