CVP75

Impulse Force
16508 lb / 74 kN
Base Plate Width
29 in / 737 mm
Compaction Area
8.6 ft² / 0.8 m²

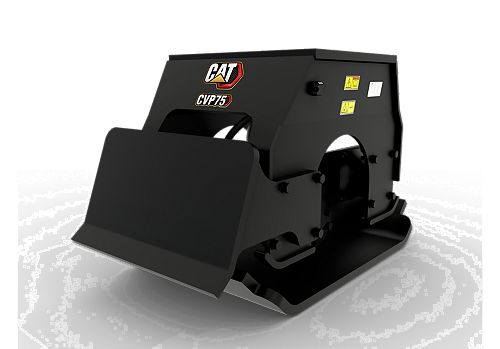

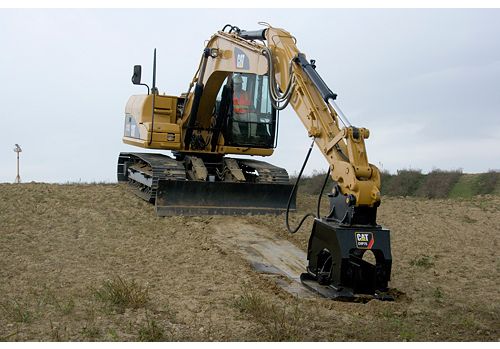

CVP75 Vibratory Plate Compactor - for 311-M318 HEX

Loan Calculator Credit Application
Build & Quote
alt 1
Compactors Brochure
Product Specifications
Impulse Force 16508 lb / 74 kN
Cycles/Minimum 2200
Base Plate Width 29 in / 737 mm
Compaction Area 8.6 ft² / 0.8 m²
Base Plate Pressure 13.33 psi / 91.91 kPa
Base Plate Length 43 in / 109 mm
Minimum Hydraulic Flow 28 gal/min / 106 l/min
Minimum Operating Pressure 2000 psi / 13790 kPa
Weight 1765 lb / 801 kg

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model Engine Power - ISO 14396:2002 Operating Weight Maximum Maximum Travel Speed
M315 148 hp / 110 kW 39680 lb / 18000 kg 21.7 mile/h / 35 km/h

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model Machine Class Interface Options: Top-Bottom
TRS10 Tiltrotator: 516-6765 11-16 ton Excavators S60 / S60
TRS10 Tiltrotator: 555-1563 11-16 ton Excavators Pin-on / S60
TRS10 Tiltrotator: 516-6766 11-16 ton Excavators Pin-on / S60
TRS10 Tiltrotator: 605-4735 11-16 HCS60 / S60
TRS10 Tiltrotator: 605-4740 11-16 Pin-on / HCS60
TRS10 Tiltrotator: 605-4732 11-16 HCS60 / HCS60
TRS10 Tiltrotator: 605-4746 11-16 Pin-on High Flow / HCS60
TRS10 Tiltrotator: 605-4738 11-16 Pin-on / HCS60
TRS10 Tiltrotator: 605-4744 11-16 Pin-on High Flow / HCS60
TRS14 Tiltrotator: 516-6769 14-19 ton Excavators S60 / S60
TRS14 Tiltrotator: 516-6772 14-19 ton Excavators Pin-on / S60
TRS14 Tiltrotator: 555-1567 14-19 ton Excavators Pin-on / S60
TRS14 Tiltrotator: 605-4751 14-19 HCS60 / S60
TRS14 Tiltrotator: 605-4748 14-19 HCS60 / HCS60
TRS14 Tiltrotator: 605-4754 14-19 Pin-on / HCS60
TRS14 Tiltrotator: 605-4753 14-19 Pin-on / HCS60
TRS14 Tiltrotator: 605-4755 14-19 Pin-on High Flow / HCS60
TRS14 Tiltrotator: 605-4756 14-19 Pin-on High Flow / HCS60
TRS14 Tiltrotator: 605-4766 14-19 Pin-on / HCS65
TRS14 Tiltrotator: 605-4768 14-19 Pin-on / HCS65
TRS14 Tiltrotator: 605-4770 14-19 Pin-on High Flow / HCS65
TRS14 Tiltrotator: 605-4769 14-19 Pin-on High Flow / HCS65
TRS14 Tiltrotator: 605-4763 14-19 HCS65 / S65
TRS14 Tiltrotator: 605-4757 14-19 HCS65 / HCS65
TRS18 Tiltrotator: 516-6779 18-24 ton Excavators S70 / S70
TRS18 Tiltrotator: 516-6780 18-24 ton Excavators Pin-on / S70
TRS18 Tiltrotator: 605-4773 18-25 Pin-on / HCS70
TRS18 Tiltrotator: 605-4774 18-25 Pin-on High Flow / HCS70
TRS18 Tiltrotator: 605-4772 18-25 HCS70 / S70
TRS18 Tiltrotator: 605-4771 18-25 HCS70 / HCS70
TRS18 Tiltrotator: 605-4777 18-25 Pin-on / HCS70/55
TRS18 Tiltrotator: 605-4778 18-25 Pin-on High Flow / HCS70/55
TRS18 Tiltrotator: 605-4776 18-25 HCS70/55 / S70/55
TRS18 Tiltrotator: 605-4775 18-25 HCS70/55 / HCS70/55
TRS23 Tiltrotator: 558-8925 23-30 ton Excavators S70 / S70
TRS23 Tiltrotator: 567-6085 23-30 ton Excavators Pin-on / S70
TRS23 Tiltrotator: 600-0915 23-35 HCS70 / S70
TRS23 Tiltrotator: 600-0914 23-35 HCS70 / HCS70
TRS23 Tiltrotator: 558-8926 23-30 ton Excavators S80 / S80
TRS23 Tiltrotator: 567-6086 23-30 ton Excavators Pin-on / S80
TRS23 Tiltrotator: 605-4780 23-35 HCS70/55 / S70/55
TRS23 Tiltrotator: 605-4779 23-35 HCS70/55 / HCS70/55
TRS23 Tiltrotator: 605-4782 23-35 HCS80 / S80
TRS23 Tiltrotator: 605-4781 23-35 HCS80 / HCS80

Small Excavators

Cat small excavators are perfect for smaller jobs and applications with space constraints. Powered by fuel-efficient engines and advanced hydraulic systems, our small excavators offer exclusive Cat technology and a variety of matching Cat attachments to help you complete your work on time at a low cost per hour.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
313 GC - Tier 4 / Stage V 73 hp / 54.3 kW 30400 lb / 13800 kg 19.8 ft / 6040 mm
315 GC 98 hp / 73 kW 34000 lb / 15400 kg 19.6 ft / 5990 mm
315 108 hp / 80.9 kW 34000 lb / 15400 kg 19.6 ft / 5990 mm
317 133 hp / 98.9 kW 40200 lb / 18200 kg 21 ft / 6400 mm
317 GC 119 hp / 89 kW 38000 lb / 17200 kg 21 ft / 6400 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
320 - Tier 4 / Stage V 172 hp / 128.5 kW 49800 lb / 22600 kg 22 ft / 6720 mm
323 - Tier 4 / Stage V 172 hp / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
325 - Tier 4 / Stage V 172 hp / 128.5 kW 62800 lb / 28500 kg 22 ft / 6700 mm
