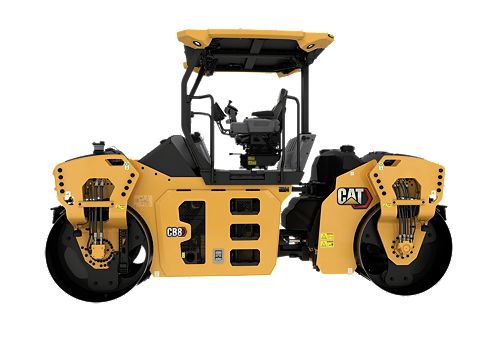

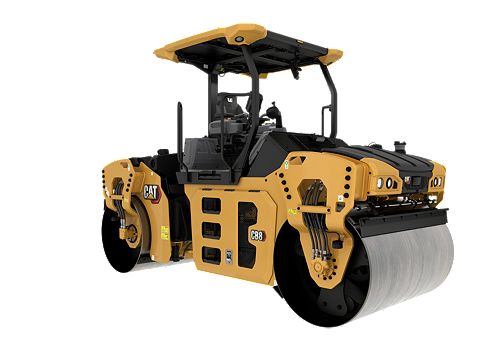

CB8

Weights
Standard Operating Weight with ROPS	20187 lb / 9155 kg
Maximum Operating Weight with ROPS	21003 lb / 9525 kg

Operating Specifications
Standard Compaction Width	67 in / 1700 mm
Maximum Compaction Width	73 in / 1870 mm
Travel Speed - Maximum	7 mile/h / 11 km/h
Static Linear Load	161 lb/in / 28.6 kg/cm

Engine
Engine Model	Cat C3.6
Gross Power	100 HP / 74.4 kW

Dimensions
Height - With ROPS/FOPS	118 in / 2984 mm
Wheel Base	130 in / 3300 mm
Drum Diameter	44 in / 1108 mm
Overall Length	179 in / 4558 mm
Overall Width	78 in / 1977 mm

Vibratory System
Drum Width	67 in / 1700 mm
Centrifugal Force per Drum - Maximum	17018 lb / 75.7 kN
Centrifugal Force per Drum - Minimum	11285 lb / 50.2 kN
Nominal Amplitude - High	0.026 in / 0.65 mm
Nominal Amplitude - Low	0.012 in / 0.31 mm
Vibration Selection	Independent per drum, front only, rear only, both
Maximum Frequency	3800 VPM / 63.3 Hz
Minimum Frequency	53.3 VPM / 3200 Hz

Service Refill Capacities
Fuel Tank Capacity	36 gal (US) / 137 l
Water Spray Tank Capacity	195 gal (US) / 740 l

Standard Equipment

Operating Environment
- 180° seat positioning w/ sliding station
- Adjustable armrests
- Platform ROPS/FOPS
- Propel lever w/ 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- Seatbelt - 76 mm (3 in) high visibility
- Full-color display with touchscreen operation
- Vandalism protection
Technology
- Product Link™ PLE743
- Remote flash
- Remote troubleshooting
Powertrain
- C3.6 4-cylinder
Electrical System
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Batteries - maintenance free
- Cat® Electronic Technician (Cat ET)
- Remote start / charge receptacle
Vibratory System
- Two amplitude/two frequency - both drums
Service and Maintenance
- Maintenance-free hitch
- 3 year/3000 hour conventional vibratory system service interval
- 2 year/2000 hour oscillatory vibration system service interval
- Grouped filters with ground level access
- Remote access drains
- Sampling ports for Scheduled Oil Sampling (S•O•S?)
- Sight gauges - engine coolant and hydraulic oil
Safety
- Alarm, back up
- Horn, warning (front and rear)
- LED working lights
- Warning, LED safety beacons
- Steps, front drum fuel refill

Optional Equipment

Operating Environment
- 360° seat positioning w/sliding station
- Steering wheel - elevated position, left side
- Suspension seat - with heat
- Seat headrest
Technology
- Infrared asphalt temperature sensors
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Machine to machine communications
- Product Link PLE783
Powertrain
- Hitch - offset
- Hydraulic oil - biodegradeable
Vibratory System
- Mats - cocoa
- Mats - water distribution
- Freeze protection - water spray system
Safety
- Cameras - 360° viewing ROPS mounted
- Cameras - front and rear bumper mounted
- LED working lights w/ turn signal
- LED auxiliary lighting - 1000/2000 lumin
- Mirror package
- Steps, rear drum water spray refill

Compact

Cat® Compact technologies combine advanced compaction measurement, in-cab guidance and reporting capabilities to help you consistently meet compaction targets faster, more uniformly, and in fewer passes—saving on fuel and reducing rework and material costs in both soil and asphalt applications.

Model
Cat Compact with Temperature Indication
Cat Compact with Compaction Meter Value (CMV)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
