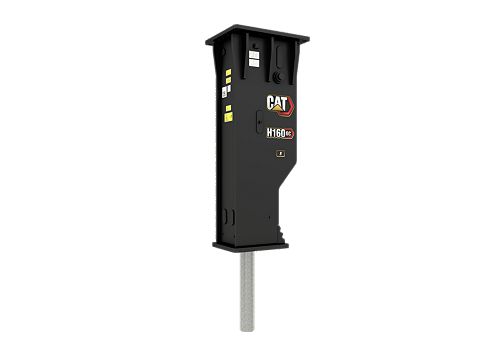

H160 GC S

Minimum Operating Weight: 6688 lb / 3034 kg
Rated Flow - Minimum: 50 gal/min / 190 l/min
Rated Flow - Maximum: 61 gal/min / 230 l/min

Cat® H160 GC S hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H160 GC S hammers help increase overall productivity and reduce maintenance costs. Cat H160 GC S hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application

Build & Quote

Cat GC S Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye) Cat GC S Hammer - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye)

Specifications
Related Products

Product Specifications
Blows per Minute	200 to 450
Minimum Operating Weight	6688 lb / 3034 kg
Rated Flow - Minimum	50 gal/min / 190 l/min
Rated Flow - Maximum	61 gal/min / 230 l/min
Minimum Operating Pressure	2320 psi / 16000 kPa
Maximum Operating Pressure	2610 psi / 18000 kPa
Tool Shaft Diameter	6.3 in / 160 mm
Minimum Carrier Weight	72700 lb / 33 t
Maximum Carrier Weight	99200 lb / 45 t

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
336 -Tier 4 / Stage V	300 hp / 223.5 kW	81100 lb / 36800 kg	26.11 ft / 8210 mm
340 - Tier 4 / Stage V	346 hp / 258.3 kW	83100 lb / 37700 kg	26.9 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
330 GC - Tier 4 / Stage V	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm
