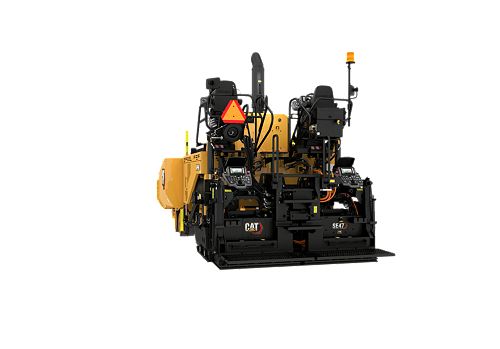

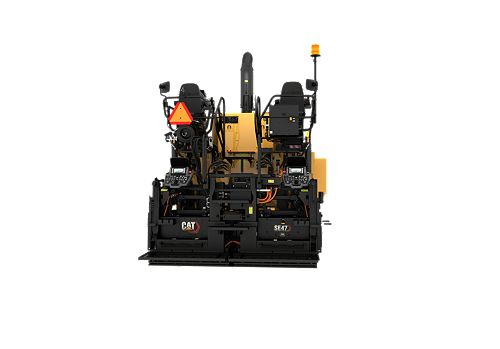

SE47 FM (411) Vibratory Screed

Standard Weight: 6200 lb / 2812 kg
Maximum Paving Width: 20.5 ft / 6.25 m
Maximum Paving Depth: 10 in / 250 mm

The Cat® SE47 FM screed provides application versatility, easy set-up, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other mid-sized applications. Front-mounted extenders easily navigate curbs, light poles, turnouts, and other obstacles.

Loan Calculator Credit Application

Build & Quote

Key Features Paving Product Line Brochure Paving Application Guides and eBooks

Specifications
Equipment
Related Products

Weights
Standard Weight	6200 lb / 2812 kg

Operating Specifications
Standard Paving Range	2.44 - 4.7 m (8' - 15' 6")
Maximum Paving Width	20.5 ft / 6.25 m
Maximum Paving Depth	10 in / 250 mm
Heating Time - Maximum Width	25 minutes
Heating Time - Standard Width	15 minutes
Crown Range	-5% to +10%
Vibratory Speed Range	0 to 3000 vpm
Extender Height Range	-41 mm to +6.5 mm
Extender Slope Range	0% to +9%

Dimensions
Minimum Width - Endgates Attached	118 in / 2982 mm
Transport Length - Tractor and Screed	20.9 ft / 6375 mm
Screed Plates Width, Front to Back, Main Screed	24 in / 616 mm
Screed Plates Width, Front to Back, Extenders	9 in / 228 mm
Length - Front to Back, Endgates Attached	86 in / 2191 mm
Length - Front to Back, Endgates Removed	59 in / 1509 mm

Standard Equipment

Material Delivery
- Thickness screws _ clockwise or counterclockwise
- End gate_manual
Operating Environment
- Level holder
- Lockable storage
- Shovel holder
Power Controls
- Crown
- Slope
- Extender height
Service and Repair
- Service repair kits
Safety
- Horn

Optional Equipment

Operating Environment
- Pendent control
- Visor _ LCD display
Technology
- Cat Grade Control
Safety
- Lights_roading
Material Delivery
- Berm attachments
- Cutoff shoe
- Drop arm stabilizer
- End gate_heated
- End gate shoe_safety edge
- ExtensionsExtension _ 100 mm (4") high angle of attack
- Extension _ 305 mm (12")
- Extension _ 457 mm (18")
- Extension _ 610 mm (24")
- Screed plate _ dove tail
- Tapered notch extension with 457 mm (18")
- Vibratory sled _ utilized with tapered notch

Track Asphalt Pavers

Track-equipped asphalt pavers offer superior traction for jobs that require wide pulls or large mix-delivery vehicles.

Model	Paving Range with SE47 FM	Operating weight with SE47 FM	Maximum Throughput Capacity
AP655	2.44 - 6.25 m (8' - 20' 6")	40560 lb / 18397 kg	1433 ton(US)/h / 1300 tonnes/hr

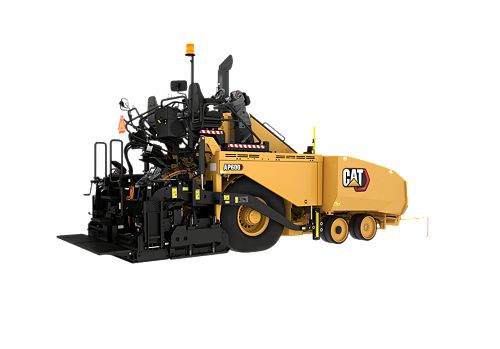

Wheel Asphalt Pavers

Wheel-equipped asphalt pavers offer superior jobsite mobility for applications that require a lot of paver movement and relocation.

Model	Paving Range with SE47 FM	Operating weight with SE47 FM	Maximum Throughput Capacity
AP600	2.44 m - 6.2 m (8' - 20' 6")	36716 lb / 16659 kg	1433 ton(US)/h / 1300 tonnes/hr

Technology Kits

Caterpillar provides solutions to help customers in any industry improve efficiency and enhance safety.

Model
Cat® Grade Connectivity for Grade with 3D
