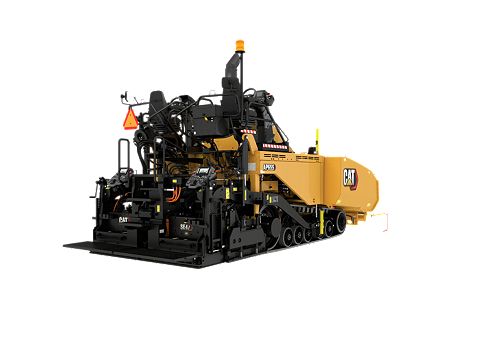

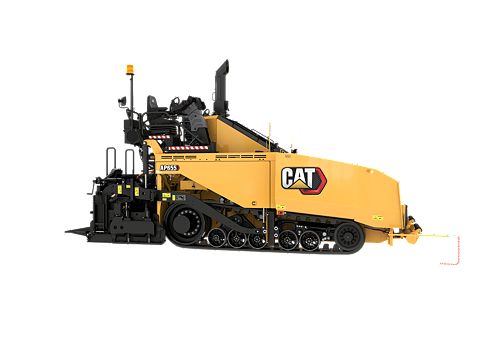

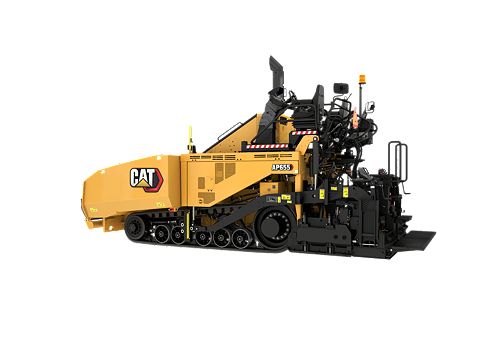

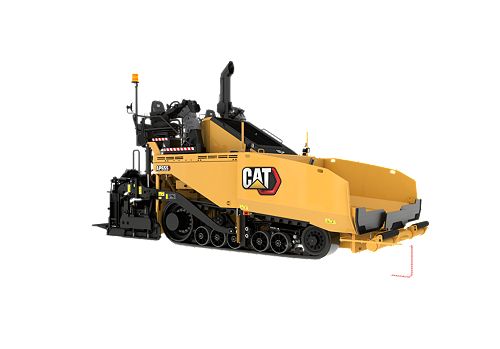

AP655

Dimensions
Paving Range with SE47 FM	2.44 - 6.25 m (8' - 20' 6")
Paving Range with SE50 V	2.55 - 6.5 m (8' 4" - 21' 4")
Paving Range with SE60 V	3.0 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 FM	3.0 m - 7.8 m (10' - 25' 6")
Operating Length	21.75 ft / 6.6 m
Operating Width	10.8 ft / 3.3 m
Overall Height	12.3 ft / 3.7 m
Transport Length	20.9 ft / 6.4 m
Transport Width	9.8 ft / 3 m
Transport Height	9.7 ft / 2.9 m

Engine
Engine Power (1)	173 HP / 129 kW
Engine Model (1)	Cat C4.4

Operating Specifications
Maximum Travel Speed	9 mile/h / 14.5 km/h
Maximum Paving Speed	210 ft/min / 64 m/min
Inside Turn Radius	1.5 ft / 0.5 m
Maximum Throughput Capacity	1433 ton(US)/h / 1300 tonnes/hr

Weights
Operating weight with SE47 FM	40560 lb / 18397 kg
Operating weight with SE50 V	41597 lb / 18868 kg
Operating weight with SE60 FM	42150 lb / 19119 kg
Operating weight with SE60 V	41890 lb / 19001 kg
Shipping Weight - Paver Only	33730 lb / 15292 kg

Service Refill Capacities
Fuel Tank Capacity	73 gal (US) / 278 l
DEF Tank	5 gal (US) / 19.1 l
Cooling System	8 gal (US) / 31 l
Hydraulic Oil Tank	58 gal (US) / 219 l
Washdown Tank	7.9 gal (US) / 30 l

Standard Equipment

Operating Environment
- Dual operating stations
- Steering guide
- Ventilation System
Technology
- Product Link™ Elite 641_cellular
Powertrain
- Automatic engine speed control
- Cat C4.4 Engine
- Variable speed cooling fan
- Eco-mode
- Extended life hydraulic oil
Electrical system
- 70 kW generator
- Cat Electronic Technician
- Machine security system
- Remote jump start receptacle
- Automotive type fuse system
- 12-volt power receptacle
- 100 amp alternator
- 1000 CCA batteries
Material Delivery
- Contact-type material feed sensors
- Adjustable push-roller
Service and Maintenance
- Extended-life coolant
- Remote access drains
- Scheduled Oil sampling ports
- Sight gauges
- Engine coolant heater
Safety
- Back-up alarm
- Horn
- Working lights
- Mirror package
- Vandal covers

Optional Equipment

Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Product Link™ Elite 631_satellite
- Thermal mapping
Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Friction steering
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
Powertrain
- Ballast_front weights
- Mobil-trac belt - smooth
- Mobil-trac belt - tread bar
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery
- Auger extension
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Sonic feed sensors
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits
Screed Choices
- SE47 FM Screed
- SE50 V Screed
- SE60 V Screed
- SE60 FM Screed
Grade References
- Rigid Ski, 9.15 m (30') and 12.2 m (40')
- Sonic Averaging Beam

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with Grade and Slope For Pavers
Cat Grade with Thermal Mapping For Pavers

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
Cat Inspect
Cat Remote Troubleshooting
