AP600
- Operating weight with SE47 FM
- 36716 lb / 16659 kg
- Maximum Throughput Capacity
- 1433 ton(US)/h / 1300 tonnes/hr
- Fuel Tank Capacity
- 73 gal (US) / 278 l

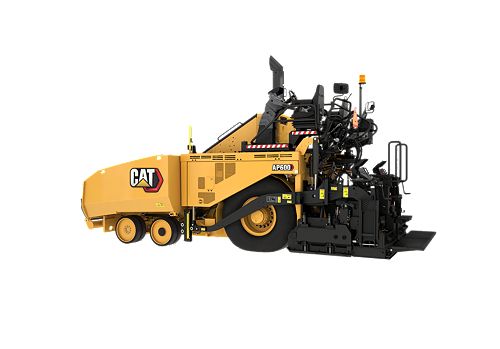

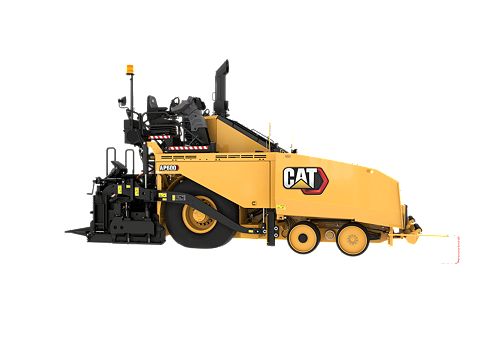

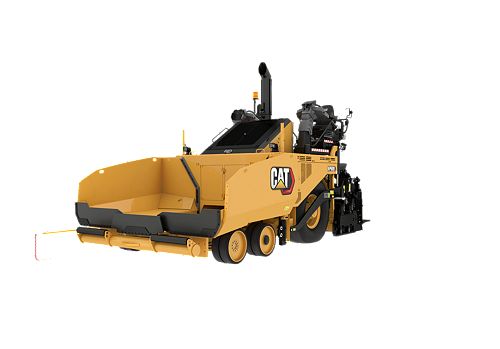

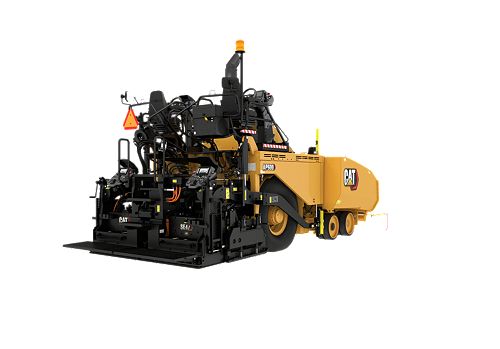

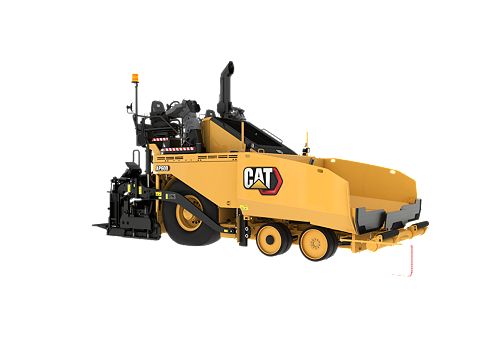

The AP600 is a mid to high production wheel paver that offers versatility for highways, rural roads, streets and other mid-sized projects. It can be equipped with either a front-mount extender screed or a rear-mount extender screed.
| Dimensions | |
|---|---|
| Paving Range with SE47 FM | 2.44 m - 6.2 m (8' - 20' 6") |
| Paving Range with SE50 V | 2.55 m - 6.5 m (8' 4" - 21' 4") |
| Paving Range with SE60 FM | 3.0 m - 7.8 m (10' - 25' 6") |
| Paving Range with SE60 V | 3.0 m - 7.5 m (9' 10" - 24' 6") |
| Operating Length | 21.75 ft / 6.6 m |
| Operating Width | 10.8 ft / 3.3 m |
| Overall Height | 12.5 ft / 3.8 m |
| Transport Length | 20.9 ft / 6.4 m |
| Transport Width | 9.8 ft / 2.9 m |
| Transport Height | 9.9 ft / 3.3 m |
| Engine | |
|---|---|
| Gross Power | 173 hp / 129 kW |
| Engine Model | Cat C4.4 |
| Operating Specifications | |
|---|---|
| Maximum Travel Speed | 10 mile/h / 16 km/h |
| Maximum Paving Speed | 250 ft/min / 76 m/min |
| Inside Turn Radius | 4.5 ft / 1.5 m |
| Maximum Throughput Capacity | 1433 ton(US)/h / 1300 tonnes/hr |
| Weights | |
|---|---|
| Operating weight with SE47 FM | 36716 lb / 16659 kg |
| Operating weight with SE50 V | 37754 lb / 17125 kg |
| Operating weight with SE60 FM | 38316 lb / 17380 kg |
| Operating weight with SE60 V | 38056 lb / 17262 kg |
| Shipping Weight - Paver Only | 29391 lb / 13556 kg |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 73 gal (US) / 278 l |
| DEF Tank | 5 gal (US) / 19.1 l |
| Cooling System - Total | 8 gal (US) / 31 l |
| Hydraulic Oil Tank | 58 gal (US) / 219 l |
| Washdown Spray Tank | 7.9 gal (US) / 30 l |
