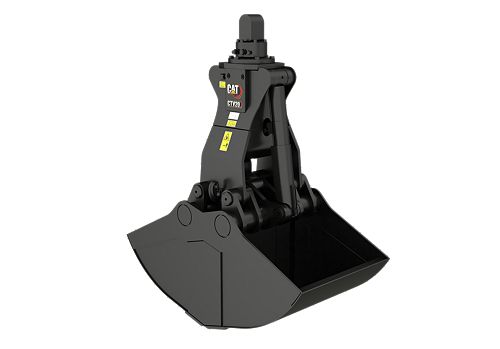

CTV20-1300 Clamshell Grapple

Capacity
1.75 yd³ / 1300 l
Operating Weight
3893 lb / 1766 kg
Recommended Weight Excavator Minimum
20 ton (US)

Cat® Clamshell Grapples help you get high production for transfer applications. Move more material with fast opening and closing for short cycle times. The heavy-duty construction and low maintenance of the tool keeps it working longer helping you to save time and money.

Loan Calculator Credit Application
Build & Quote
alt 1
Clamshell Grapples Key Features and Benefits (AME, Eur, N Am, S Am) Cat? Clamshell Grapples Technical Specifications (Afr-ME, CIS, Eur, N Am, S Am)
Product Specifications
Capacity 1.75 yd³ / 1300 l
Operating Weight 3893 lb / 1766 kg
Bolt-on Cutting Edge Included No
Recommended Weight Excavator Minimum 20 ton (US)
Recommended Weight Excavator Maximum 35 ton (US)
Recommended Weight Material Handler Minimum 30 ton (US)
Recommended Weight Material Handler Maximum 45 ton (US)

Demolition Excavators

Cat® demolition excavators deliver the high reach, exceptional stability, and precision customers require with the comfort and control operators expect. Engineered for demanding teardowns, they feature powerful hydraulics, reinforced structures, and advanced technology for safe, efficient operation. Spacious cabs, intuitive controls, and versatile attachments keep operators productive on jobs of any scale, anywhere in the world.

Model Operating Weight Maximum Pin Height at Stick Nose Maximum Weight at Stick Nose
330 UHD 101400 lb / 46000 kg 66.8 ft / 20350 mm 7300 lb / 3300 kg
340 UHD 122600 lb / 55600 kg 72.2 ft / 22 m 8160 lb / 3700 kg

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
326 201 hp / 149.8 kW 56400 lb / 25600 kg 22.4 ft / 6820 mm
330 273 hp / 203.7 kW 69200 lb / 31400 kg 23.9 ft / 7240 mm
330 GC 201 hp / 150 kW 68100 lb / 30900 kg 23.8 ft / 7260 mm
335 273 hp / 203.7 kW 77000 lb / 34900 kg 22.9 ft / 6990 mm
