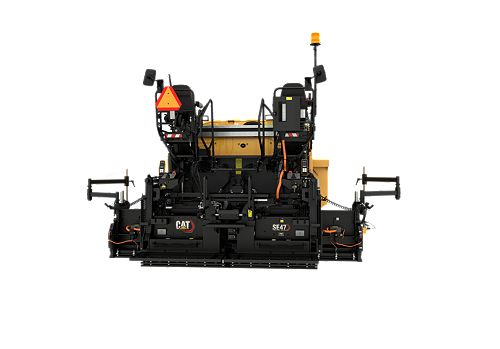

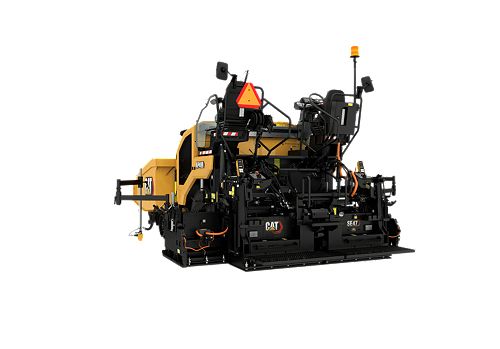

SE47 FM (4B5) Vibratory Screed

Standard Weight
6073 lb / 2755 kg
Maximum Paving Width
20.5 ft / 6.25 m
Maximum Paving Depth
10 in / 250 mm

The Cat® SE47 FM screed provides application versatility with mutiple berm options and a small foot print for starting next to curbs and obstacles. This screed is a perfect match for urban streets, parking lots, rural roads and many other variable width paving applications.

Loan Calculator Credit Application
Build & Quote
alt 1
Key Features Paving Product Line Brochure Paving Application Guides and eBooks
Weights
Standard Weight 6073 lb / 2755 kg
Operating Specifications
Standard Paving Range 2.4 - 4.7 m (8' - 15' 6")
Maximum Paving Width 20.5 ft / 6.25 m
Maximum Paving Depth 10 in / 250 mm
Heating Time - Maximum Width 25 minutes
Heating Time - Standard Width 15 minutes
Crown Range -5% to +10%
Vibratory Speed Range 0 to 3000 vpm
Extender Height Range -41 mm to +6.25 mm
Extender Slope Range 0% to 9%
Dimensions
Minimum Width - Endgates Attached 102 in / 2590 mm
Transport Length - Tractor and Screed 18.1 ft / 5505 mm
Screed Plates Width, Front to Back, Main Screed 24 in / 616 mm
Screed Plates Width, Front to Back, Extenders 9 in / 228 mm
Length - Front to Back, Endgates Attached 86 in / 2191 mm
Length - Front to Back, Endgates Removed 59 in / 1509 mm

Standard Equipment

  • Material Delivery
    • Thickness screws _ clockwise or counterclockwise
    • End gate_manual
  • Operating Environment
    • Level holder
    • Lockable storage
    • Shovel holder
  • Power Controls
    • Crown
    • Slope
    • Extender height
  • Service and Repair
    • Service repair kits
  • Safety
    • Horn

Optional Equipment

  • Operating Environment
    • Pendent control
    • Visor _ LCD display
  • Technology
    • Cat Grade Control
  • Safety
    • Lights_roading
  • Material Delivery
    • Berm attachments
    • Cutoff shoe
    • Drop arm spacer
    • End gate_heated
    • End gate shoe_safety edge
    • ExtensionsExtension _ 100 mm (4") high angle of attack
    • Extension _ 305 mm (12")
    • Extension _ 457 mm (18")
    • Extension _ 610 mm (24")
    • Screed plate _ dove tail
    • Tapered notch extension with 457 mm (18")
    • Vibratory sled _ utilized with tapered notch

Track Asphalt Pavers

Track-equipped asphalt pavers offer superior traction for jobs that require wide pulls or large mix-delivery vehicles.

Model Paving Range with SE47 FM Operating weight with SE47 FM Maximum Throughput Capacity
AP455 2.4 m - 5.9 m (8' - 19' 6") 31533 lb / 14303 kg 853 ton(US)/h / 774 tonnes/hr
AP555 2.4 m - 6.1 m (8' - 20') 33689 lb / 15281 kg 1100 ton(US)/h / 1000 tonnes/hr

Wheel Asphalt Pavers

Wheel-equipped asphalt pavers offer superior jobsite mobility for applications that require a lot of paver movement and relocation.

Model Paving Range with SE47 FM Operating weight with SE47 FM Maximum Throughput Capacity

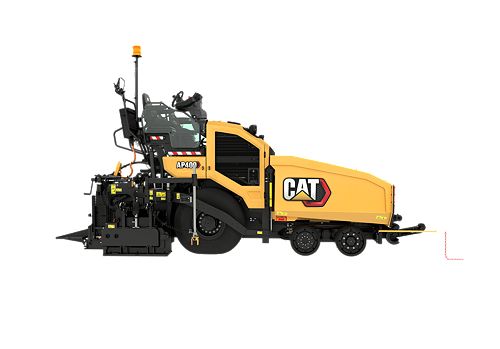

AP400 2.4 m - 5.9 m (8' - 19' 6") 30000 lb / 13618 kg 853 ton(US)/h / 774 tonnes/hr
AP500 2.4 m - 5.9 m (8' - 19' 6") 32012 lb / 14518 kg 1100 ton(US)/h / 1000 tonnes/hr
