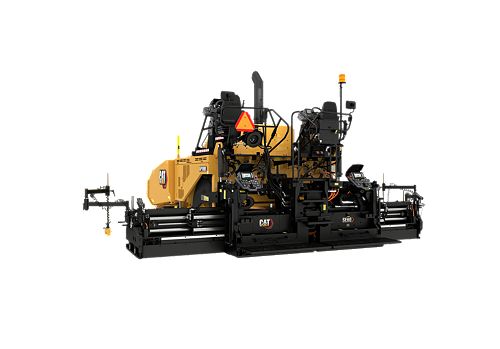

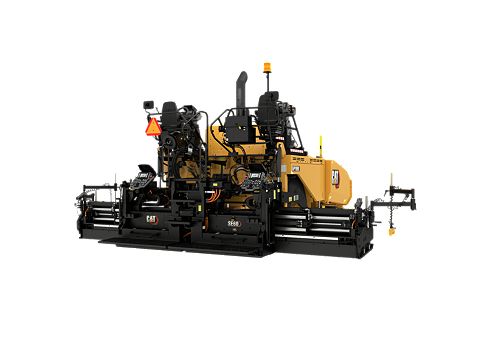

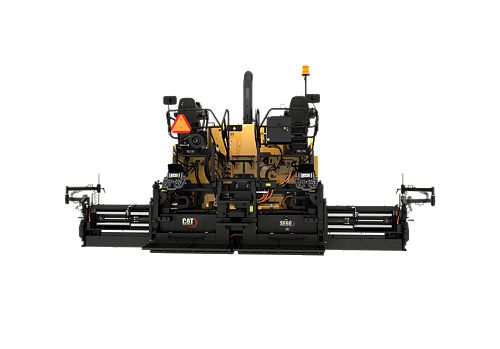

SE60 FM Vibratory Screed

Standard Weight
7800 lb / 3538 kg
Maximum Paving Width
25.5 ft / 7.77 m
Maximum Paving Depth
10 in / 250 mm

The Cat® SE60 FM screed provides application versatility, easy set-up, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other mid-sized applications. Front-mounted extenders easily navigate curbs, light poles, turnouts, and other obstacles.

Loan Calculator Credit Application
Build & Quote
alt 1
Key Features Paving Product Line Brochure Paving Application Guides and eBooks
Weights
Standard Weight 7800 lb / 3538 kg
Operating Specifications
Standard Paving Range 3.05 - 594 m (10' - 19' 6")
Maximum Paving Width 25.5 ft / 7.77 m
Maximum Paving Depth 10 in / 250 mm
Heating Time - Maximum Width 25 minutes
Heating Time - Standard Width 15 minutes
Crown Range -2.5% to 5%
Vibratory Speed Range 0 to 3000 vpm
Extender Height Range -41 mm to +6.5 mm
Extender Slope Range 0% to 9%
Dimensions
Minimum Width - Endgates Attached 132 in / 3353 mm
Transport Length - Tractor and Screed 21.75 ft / 6635 mm
Screed Plates Width, Front to Back, Main Screed 24 in / 616 mm
Screed Plates Width, Front to Back, Extenders 9 in / 228 mm
Length - Front to Back, Endgates Attached 86 in / 2194 mm
Length - Front to Back, Endgates Removed 59 in / 1509 mm

Standard Equipment

  • Operating Environment
    • Level holder
    • Lockable storage
    • Shovel holder
  • Power Controls
    • Crown
    • Slope
    • Extender height
  • Service and Repair
    • Service repair kits
  • Safety
    • Horn
  • Material Delivery
    • Thickness screws _ clockwise or counterclockwise
    • End gate_manual

Optional Equipment

  • Operating Environment
    • Pendent control
    • Visor _ LCD display
  • Technology
    • Cat Grade Control
  • Safety
    • Lights_roading
  • Material Delivery
    • Berm attachments
    • Cutoff shoe
    • Drop arm stabilizer
    • End gate_heated
    • End gate shoe_safety edge
    • ExtensionsExtension _ 100 mm (4") high angle of attack
    • Extension _ 305 mm (12")
    • Extension _ 457 mm (18")
    • Extension _ 610 mm (24")
    • Screed plate _ dove tail
    • Tapered notch extension with 457 mm (18")
    • Vibratory sled _ utilized with tapered notch
