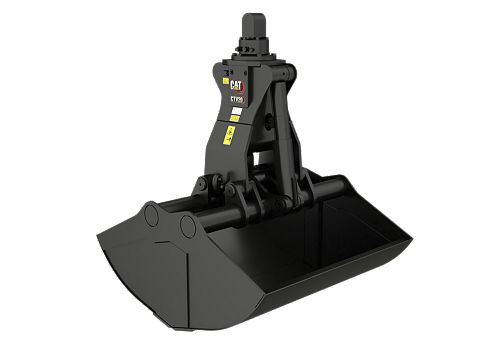

CTV20-2300 Clamshell Grapple

Capacity: 3 yd³ / 2300 l
Operating Weight: 4652 lb / 2110 kg
Recommended Weight Excavator Minimum: 20 ton (US)

Cat® Clamshell Grapples help you get high production for transfer applications. Move more material with fast opening and closing for short cycle times. The heavy-duty construction and low maintenance of the tool keeps it working longer helping you to save time and money.

Loan Calculator Credit Application

Build & Quote

Clamshell Grapples Key Features and Benefits (AME, Eur, N Am, S Am) Cat? Clamshell Grapples Technical Specifications (Afr-ME, CIS, Eur, N Am, S Am)

Specifications
Related Products

Product Specifications
Capacity	3 yd³ / 2300 l
Operating Weight	4652 lb / 2110 kg
Bolt-on Cutting Edge Included	No
Recommended Weight Excavator Minimum	20 ton (US)
Recommended Weight Excavator Maximum	35 ton (US)
Recommended Weight Material Handler Minimum	30 ton (US)
Recommended Weight Material Handler Maximum	45 ton (US)

Demolition Excavators

Cat® demolition excavators deliver the high reach, exceptional stability, and precision customers require with the comfort and control operators expect. Engineered for demanding teardowns, they feature powerful hydraulics, reinforced structures, and advanced technology for safe, efficient operation. Spacious cabs, intuitive controls, and versatile attachments keep operators productive on jobs of any scale, anywhere in the world.

Model	Operating Weight	Maximum Pin Height at Stick Nose	Maximum Weight at Stick Nose
330 UHD	101400 lb / 46000 kg	66.8 ft / 20350 mm	7300 lb / 3300 kg
340 UHD	122600 lb / 55600 kg	72.2 ft / 22 m	8160 lb / 3700 kg

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
330	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
330 GC	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
