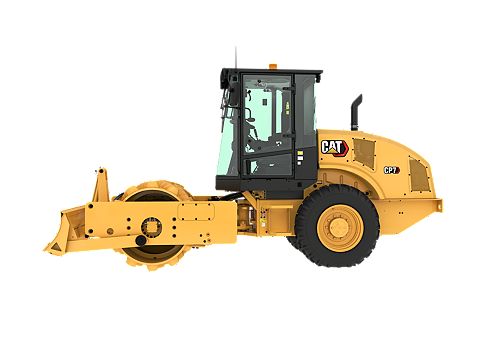

CP7
- Operating Weight - With Cab
- 16990 lb / 7707 kg
- Compaction Width
- 66 in / 1676 mm
- Gross Power
- 99.8 hp / 74.4 kW

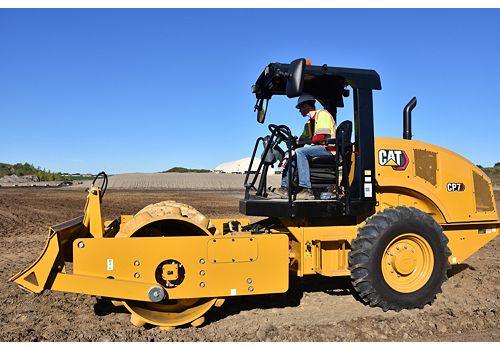

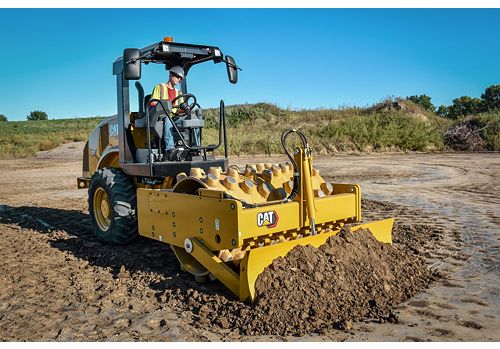

The CP7 Vibratory Soil Compactor is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.
| Weights | |
|---|---|
| Operating Weight - With Cab | 16990 lb / 7707 kg |
| Weight - Drum with ROPS/FOPS Canopy | 8139 lb / 3692 kg |
| Weight - Drum with Cab | 8293 lb / 3762 kg |
| Operating Weight - With ROPS/FOPS Canopy | 16541 lb / 7503 kg |
| Operating Specifications | |
|---|---|
| Compaction Width | 66 in / 1676 mm |
| Turning Radius - Inside Drum Edge | 10 ft / 3.1 m |
| Drum Width | 66 in / 1676 mm |
| Travel Speed - Maximum | 6.8 mile/h / 11 km/h |
| Curb Clearance | 14.6 in / 371 mm |
| Ground Clearance | 15.2 in / 387 mm |
| Engine | |
|---|---|
| Gross Power | 99.8 hp / 74.4 kW |
| Net Power - ISO 9249 | 92.7 hp / 69.1 kW |
| Engine Model | C3.6 |
| Stroke | 4.72 in / 120 mm |
| Net Power - SAE J1349:2011 | 91.7 hp / 68.4 kW |
| Bore | 3.9 in / 98 mm |
| Dimensions | |
|---|---|
| Drum Width | 66 in / 1676 mm |
| Overall Width | 5.9 ft / 1.8 m |
| Overall Length - With Blade Option | 18.4 ft / 5.6 m |
| Overall Length | 16.7 ft / 5.1 m |
| Maximum Height | 9.3 ft / 2.8 m |
| Wheel Base | 8.5 ft / 2.6 m |
| Drum Diameter - Over Pads | 48.1 in / 1222 mm |
| Overall Width - With Blade Option | 7 ft / 2.1 m |
| Vibratory System | |
|---|---|
| Nominal Amplitude - High | 0.061 in / 1.55 mm |
| Centrifugal Force - Maximum | 29990 lb / 133 kN |
| Vibratory Frequency - Standard | 1915 V/m / 31.9 Hz |
| Centrifugal Force - Minimum | 15056 lb / 67 kN |
| Variable Frequency Option Range | 23.3-31.9 Hz (1400-1915 vpm) |
| Nominal Amplitude - Low | 0.031 in / 0.78 mm |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 37 gal (US) / 140 l |
