RM600

Maximum Operating Weight
78484 lb / 35600 kg
Cutting/Mixing Width
8 ft / 2.44 m
Gross Power
637 hp / 475 kW

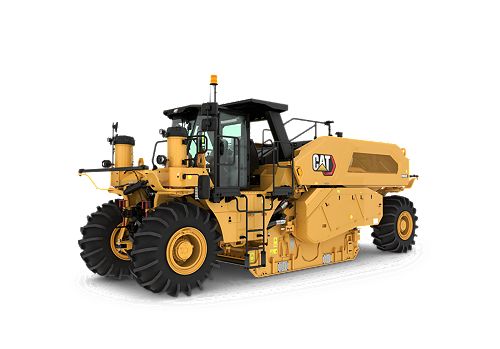

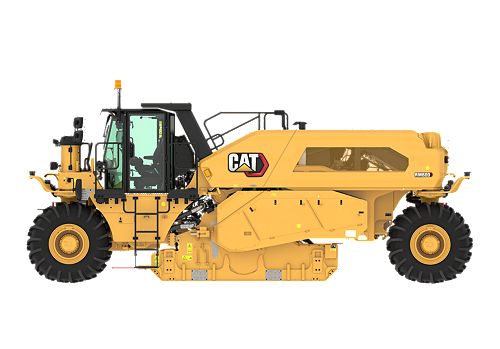

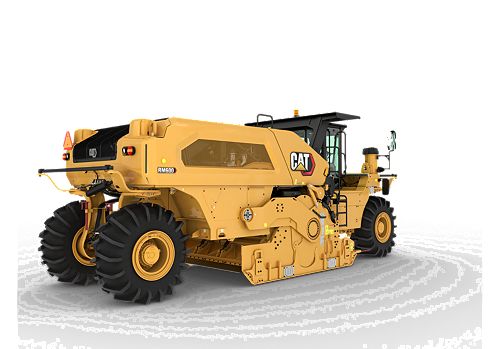

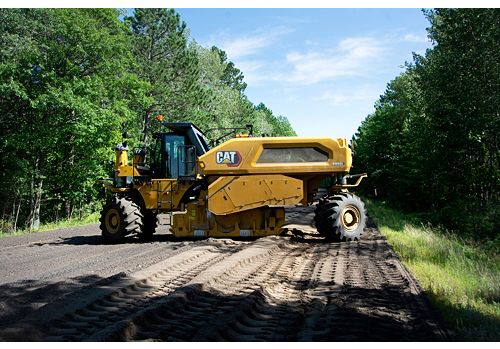

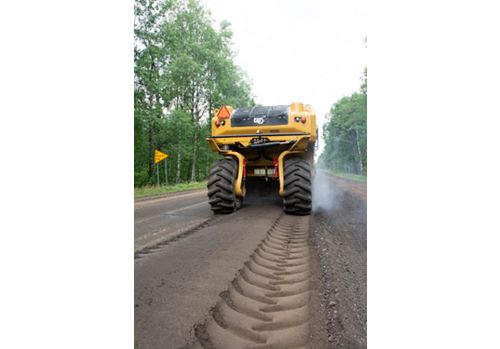

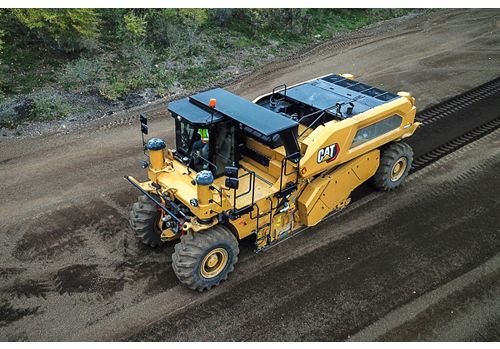

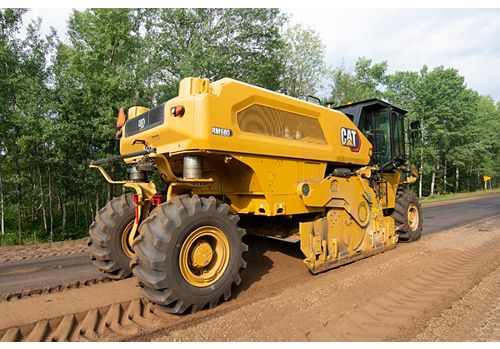

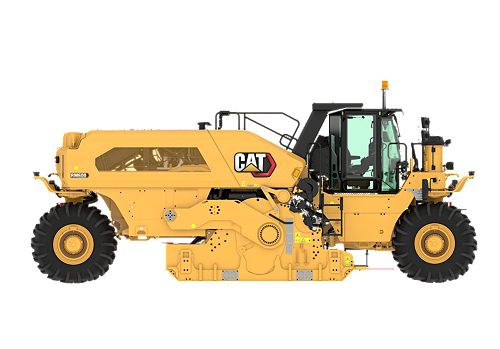

The Cat® RM600 Reclaimer/Stabilizer delivers full-depth reclamation and soil stabilization. With all-wheel drive, advanced machine controls, and 637 hp (475 kW) of gross power, it's ideal for road rehabilitation and soil remediation.

Weights
Maximum Operating Weight 78484 lb / 35600 kg
Note (1) Maximum weight is approximate and includes base machine, all options, coolant, lubricants, rotor, full fuel tank, full water tank, full DEF tank and 75 kg (165 lb) operator.
Operating Specifications
Cutting/Mixing Width 8 ft / 2.44 m
Maximum Cutting/Mixing Depth 20 in / 508 mm
Rotor Options System K
Rotor Drive Belt
Operating Speed 213 ft/min / 65 m/min
Maximum Travel Speed 7.5 mile/h / 12.1 km/h
Engine
Gross Power 637 hp / 475 kW
Engine Power 629 hp / 469 kW
Engine Model Cat C18
Emissions U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
Build Number 01A
Dimensions
Length 28.61 ft / 8.72 m
Width 9.8 ft / 3 m
Maximum Height 11.5 ft / 3.5 mm
Wheel Base 23.13 ft / 7.05 m
Ground Clearance 19.9 in / 506 mm
Service Refill Capacities
Fuel Tank Capacity 325 gal (US) / 1230 l
DEF Tank 12.4 gal (US) / 47 l
Cooling Systems 26.1 gal (US) / 99 l
Engine Oil 18 gal (US) / 68 l
Hydraulic Tank 31.7 gal (US) / 120 l
Washdown Water Tank 120 gal (US) / 454 l
Sustainability
Recyclability 98%

Standard Equipment

  • OPERATOR ENVIRONMENT
    • Adjustable armrests
    • Air-ride, heated suspension seat
    • 180° rotating operating station
    • Audio-ready with speakers
    • Full-width sliding cab with heat and air conditioning
    • Push button start
    • High-visibility retractable seat belt
    • On-screen steering guides
    • Color touch screen displays (2)
    • 12-Volt and USB power ports
  • POWERTRAIN
    • Dual element air cleaner with pre-cleaner
    • Cat® Extended Life Coolant (ELC) with protection to -37° C (-35° F)
    • Auto-reversing, on-demand cooling fan
    • Engine Idle Speed Management
    • Automatic Load Control
    • Four steering modes
    • All-time All-wheel drive
    • Electronic differential
    • Slope Control
  • ELECTRICAL SYSTEM
    • 150-Amp alternator
    • 24-Volt charging system
    • Automotive-type fuse system
    • Remote start/charge receptacle
    • 1000 CCA maintenance-free batteries (4)
  • ROTOR DRIVE SYSTEM
    • Electronic driveline protection
    • Automatic depth control
    • Hydraulically-controlled dry clutch
    • 2-speed planetary gearbox
    • Six rotor speeds
    • Variable volume mixing chamber
    • System K rotor
    • Toolholder protection - Wedge
  • SERVICE AND MAINTENANCE
    • Cat VisionLink™
    • Remote Flash
    • Remote Troubleshoot
    • Remote access drains
    • Scheduled Oil Sampling (S·O·S?) ports
    • Fluid level sight gauges
    • Service light receptacles
    • Air compressor
    • Lockable storage
    • Bit bucket tray
  • SAFETY AND SECURITY
    • Back-up alarm
    • Ground level emergency shutdown switches (4)
    • Horn (front and rear)
    • FOPS cab
    • ROPS
    • Platform handrails and guardrails
    • Folding rear view mirrors
    • Illuminated access ladder
    • Operator ID profiles
    • LED working lights
    • Front and rear facing cameras
    • Front and rear rotor chamber door cameras

Optional Equipment

  • POWERTRAIN
    • Cat Bio HYDO™ Advanced biodegradable hydraulic oil
    • CE certificate
  • SPRAY SYSTEMS

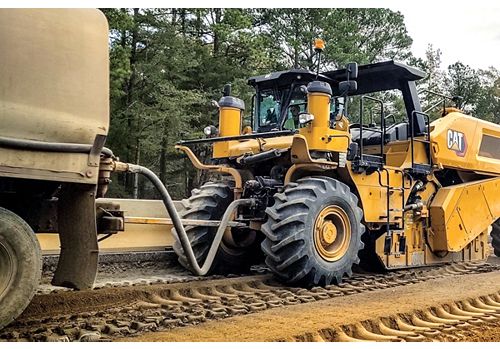

    • Water spray system
    • Emulsion spray system
    • Push bar
  • ROTOR DRIVE SYSTEM
    • Toolholder - 20 mm shank bits
    • Toolholder - 22 mm shank bits
  • SERVICE AND MAINTENANCE
    • Fast fill fuel system
    • Hydraulically-powered rotor turning with pendant
    • High pressure washdown system
    • Magnetic service light
    • Pneumatic bit removal tools
  • SAFETY AND SECURITY
    • Bluetooth key fob
    • LED roading lights
    • Folding LED safety beacon
    • Folding side view cameras (2)
