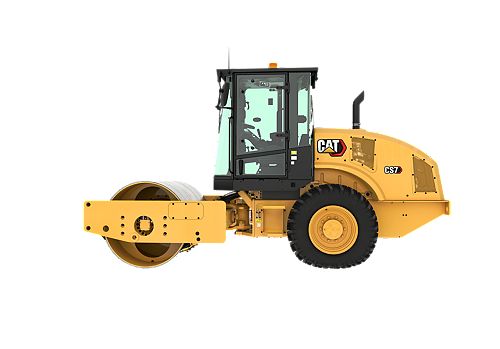

CS7

Weights
Operating Weight - With Cab	16276 lb / 7383 kg
Weight - Drum with ROPS/FOPS Canopy	7540 lb / 3420 kg
Operating Weight - With ROPS/FOPS Canopy	15826 lb / 7179 kg
Weight - Drum with Cab	7694 lb / 3490 kg

Operating Specifications
Compaction Width	66 in / 1676.4 mm
Static Linear Load - With Cab	115.9 lb/in / 20.7 kg/cm
Curb Clearance	14.5 in / 369 mm
Drum Width	66 in / 1676.4 mm
Turning Radius - Inside Drum Edge	10 ft / 3.1 m
Ground Clearance	15.4 in / 391 mm
Travel Speed - Maximum	6.8 mile/h / 11 km/h
Static Linear Load - With ROPS/FOPS	113.7 lb/in / 20.3 kg/cm

Engine
Gross Power	99.8 HP / 74.4 kW
Stroke	4.7 in / 120 mm
Net Power - ISO 9249	92.7 HP / 69.1 kW
Net Power - SAE J1349	91.7 HP / 68.4 kW
Bore	3.9 in / 98 mm
Engine Model	Cat C3.6

Dimensions
Overall Width	5.9 ft / 1.8 m
Wheel Base	8.5 ft / 2.6 m
Overall Width - With Blade Option	7 ft / 2.1 m
Drum Diameter	48.1 in / 1221 mm
Overall Length	16.7 ft / 5.1 m
Overall Length - With Blade Option	18.4 ft / 5.6 m
Drum Width	66 in / 1676.4 mm
Maximum Height	2.9 ft / 9.4 m

Vibratory System
Variable Frequency Option Range	23.3-31.9 Hz (1400-1914 vpm)
Vibratory Frequency - Standard	1915 V/m / 31.9 Hz
Centrifugal Force - Minimum	15056.3 lb / 67 kN
Nominal Amplitude - High	0.066 in / 1.67 mm
Nominal Amplitude - Low	0.033 in / 0.84 mm
Centrifugal Force - Maximum	29989.7 lb / 133.4 kN

Service Refill Capacities
Fuel Tank Capacity	37 gal (US) / 140 l

Standard Equipment

OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
- Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera System
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Smooth Drum
- Dual Amplitude, Single Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
- Universal Bumper
POWER TRAIN
- Cat C3.4B Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
ELECTRICAL
- 12 volt Electrical System
- 150 ampere Alternator
- 60 Cold-cranking Amps Battery Capacity
OTHER
- Product LinkTM
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S-O-SSM Sampling Valves: Engine Oil, Hydraulic Oil and Coolant

Optional Equipment

OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control
- Sun Visor
VIBRATORY SYSTEM
- Padfoot Shell Kit (oval or square pads available)
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
- Scraper Shell Kit Ready
- Recording Module for Vibration Frequency
POWER TRAIN
- Transmission Guard
- Bio-oil Factory Fill
TECHNOLOGY SOLUTIONS
- Measure - Compaction Meter Value (CMV)
- Map - SBAS GNSS Mapping
- Connect - Cloud and Machine Connectivity
OTHER
- Upgraded Halogen Light Package
- Rotating Beacon
