CS14
- Operating Weight - With Cab
- 31405 lb / 14245 kg
- Compaction Width
- 84 in / 2134 mm
- Gross Power
- 159 hp / 118.6 kW

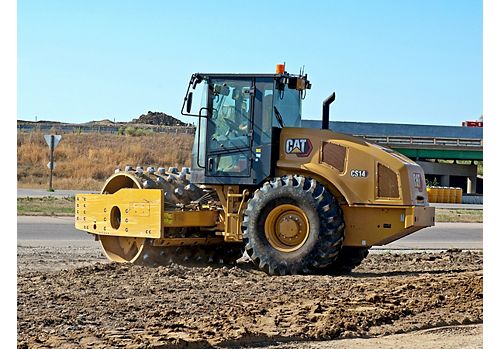

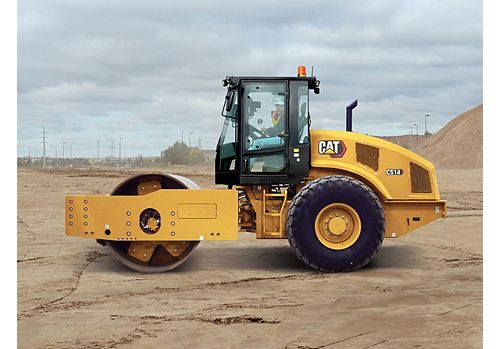

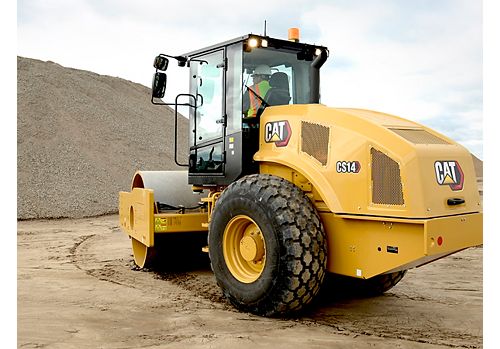

The Cat® CS14 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.
| Engine | |
|---|---|
| Gross Power | 159 hp / 118.6 kW |
| Engine Power - ISO 14396 | 156.9 hp / 117 kW |
| Net Power - ISO 9249 | 131.6 hp / 98.1 kW |
| Net Power - SAE J1349:2011 | 129.9 hp / 96.9 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat® C4.4 |
| Emissions | U.S. EPA Tier 4 Final |
| Stroke | 5 in / 127 mm |
| Bore | 4.1 in / 105 mm |
| Weights | |
|---|---|
| Operating Weight - With Cab | 31405 lb / 14245 kg |
| Weight - Drum with Cab | 19994 lb / 9069 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. |
| Vibratory System | |
|---|---|
| Variable Frequency Option Range | 23.3 - 30.5 Hz (1400-1830 vpm) |
| Nominal Amplitude - High | 0.083 in / 2.1 mm |
| Nominal Amplitude - Low | 0.039 in / 0.98 mm |
| Centrifugal Force - Maximum | 67653 lb / 301 kN |
| Centrifugal Force - Minimum | 31680 lb / 141 kN |
| Static Linear Load - With Cab | 238 lb/in / 42.5 kg/cm |
| Dimensions | |
|---|---|
| Compaction Width | 84 in / 2134 mm |
| Overall Length | 19.8 ft / 6.1 m |

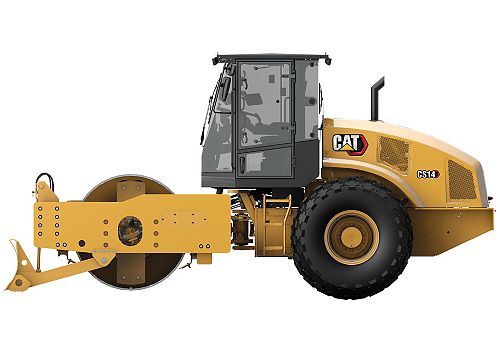

| Overall Length - With Blade Option | 21.5 ft / 6.5 m |
| Overall Width | 7.7 ft / 2.3 m |
| Overall Width - With Blade Option | 8.2 ft / 2.5 m |
| Maximum Height | 10.2 ft / 3.1 m |
| Drum Diameter | 60.4 in / 1534 mm |
| Optional Blade Height | 26.9 in / 683 mm |
| Wheel Base | 9.5 ft / 2.9 m |
| Operating Specifications | |
|---|---|
| Ground Clearance | 16.8 in / 427 mm |
| Curb Clearance | 19.3 in / 489 mm |
| Turning Radius - Inside Drum Edge | 12.1 ft / 3.7 m |
| Travel Speed - Maximum | 7.1 mile/h / 11.4 km/h |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 69.7 gal (US) / 264 l |
| DEF Tank | 5 gal (US) / 19 l |
| Cooling System | 8.3 gal (US) / 31.6 l |
| Engine Oil - With Filter | 3.1 gal (US) / 11.6 l |
| Eccentric Weight Housings (combined) | 6.9 gal (US) / 26 l |
| Axle and Final Drives | 4.8 gal (US) / 18 l |
| Hydraulic Tank | 13.2 gal (US) / 50 l |
| Sustainability | |
|---|---|
| Recyclability | 96% |
