836
- Gross Power - SAE J1995:2014
- 562 hp / 419 kW
- Net Power - SAE J1349:2011
- 496 hp / 370 kW
- Net Power - ISO 9249:2007
- 502 hp / 374 kW

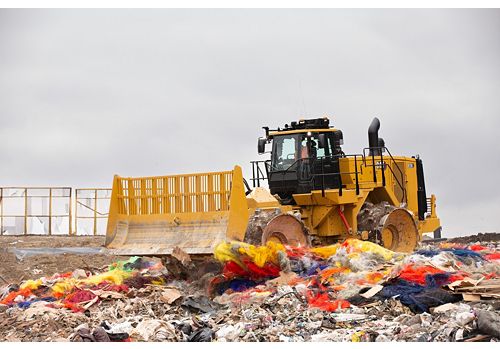

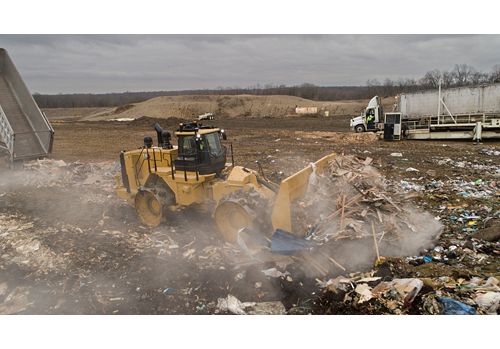

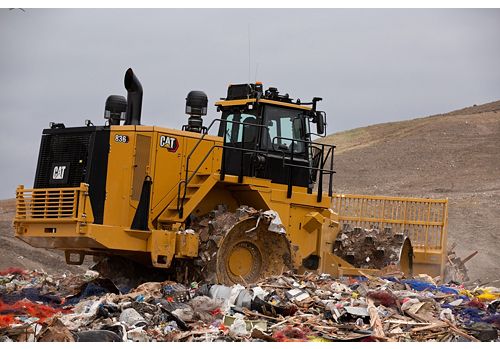

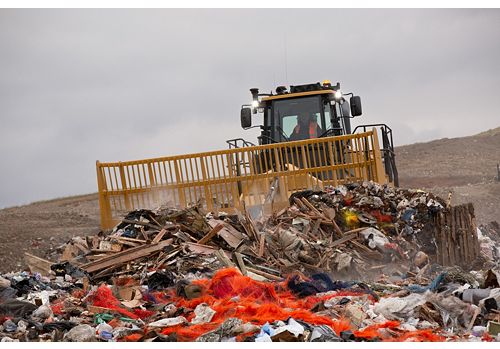

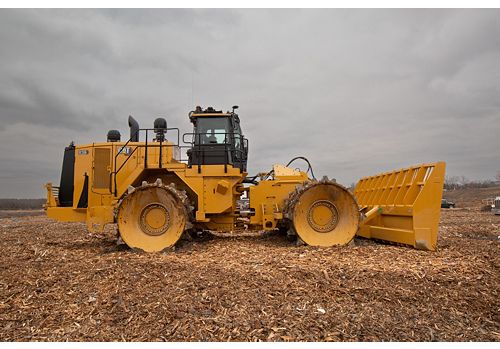

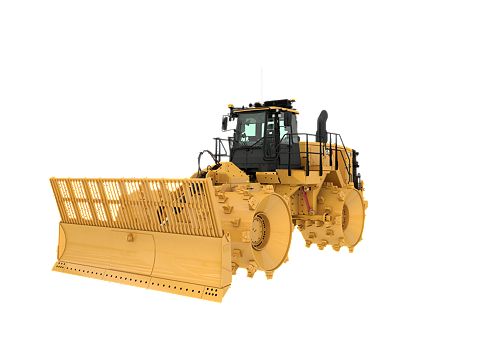

The Cat® 836 Landfill Compactor is designed with heavy-duty main structures that support multiple life cycles, features a Cat C18 engine, single-lever steering, pressurized cab, and wheel/tip options that help provide extended service life. Available Cat Compact Technologies further enhance compaction performance and consistency by providing accurate compaction values and 3D mapping.
| Engine | |
|---|---|
| Gross Power - SAE J1995:2014 | 562 hp / 419 kW |
| Net Power - SAE J1349:2011 | 496 hp / 370 kW |
| Net Power - ISO 9249:2007 | 502 hp / 374 kW |
| Engine Model | Cat® C18 |
| Emissions | Option 1 - U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 |
| Rated Speed | 1900 rpm |
| Engine Power - ISO 14396:2002 | 553 hp / 412 kW |
| Emissions | Option 2 - Brazil MAR-1, equivalent to U.S. EPA Tier 3/EU Stage IIIA |
| Rated Speed | 1900 rpm |
| Net Power - SAE J1349:2011 | 496 hp / 370 kW |
| Net Power - ISO 9249:2007 | 502 hp / 374 kW |
| Gross Power - SAE J1995:2014 | 562 hp / 419 kW |
| Engine Power - ISO 14396:2002 | 553 hp / 412 kW |
| Peak Torque ( 1,400 rpm ) | 2275 lbf·ft / 3085 N·m |
| Torque Rise | 52% |
| Bore | 5.71 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Displacement | 1104.5 in³ / 18.1 l |
| High Idle Speed | 2120 r/min |
| Low Idle Speed | 750 r/min |
| Maximum Altitude - Without Derating | 7500 ft / 2286 m |
| Note | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Operating Specifications | |
|---|---|
| Operating Weight (Tier 4 Final/Stage V) | 124063 lb / 56275 kg |
| Operating Weight (Tier 3/Stage IIIA equivalent) | 123321 lb / 55939 kg |
| Maximum Operating Weight (Tier 4 Final/Stage V) | 126364 lb / 57318 kg |
| Maximum Operating Weight (Tier 3/Stage IIIA equivalent) | 125622 lb / 56982 kg |
| Transmission | |
|---|---|
| Transmission Type | Planetary - Powershift - ECPC |
| Direct Drive - Forward 1 | 4.3 mile/h / 7 km/h |
| Direct Drive - Forward 2 | 7.8 mile/h / 12.6 km/h |
| Direct Drive - Reverse 1 | 4.6 mile/h / 7.4 km/h |
| Direct Drive - Reverse 2 | 8.2 mile/h / 13.2 km/h |
| Hydraulic System - Lift | |
|---|---|
| Lift System - Circuit | Flow Sharing Implement; Pilot Operated LS Valve w/EH |
| Lift System - Pump | Variable displacement piston |
| Max Flow @ 2000 rpm | 79 gal/min / 300 l/min |
| Relief Valve Setting - Lift | 4206 psi / 29000 kPa |
| Cylinders, Double Acting: Lift, Bore, Stroke | 137.9 mm x 1021 mm (5.5 in x 40.2 in) |
| Pilot System | Variable displacement piston |
| Pilot Relief Valve Setting | 551 psi / 3800 kPa |
| Hydraulic System - Steering | |
|---|---|
| Steering System - Circuit | Flow Sharing Implement; Pilot, load sensing |
| Steering System - Pump | Piston – Variable Displacement |
| Max Flow @ 2000 rpm | 79 gal/min / 300 l/min |
| Relief Valve Setting - Steering | 3495 lb/in² / 24100 kPa |
| Total Steering Angle | 86° |
| Steering Cycle Times - High Idle | 3.9 s |
| Steering Cycle Times - Low Idle | 6.4 s |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 209 gal (US) / 793 l |
| Diesel Exhaust Fluid Tank | 9 gal (US) / 32.8 l |
| Cooling Systems - Tier 4 Final/EU Stage V | 40 gal (US) / 151.5 l |
| Cooling System - Tier 3/Stage IIIA Equivalent | 37.2 gal (US) / 141.1 l |
| Engine Crankcase | 16 gal (US) / 60 l |
| Transmission | 21.9 gal (US) / 83 l |
| Differential - Final Drives - Front | 49 gal (US) / 186 l |
| Differential - Final Drives - Rear | 50 gal (US) / 190 l |
| Hydraulic System - Implement/Steering | 46.2 gal (US) / 175 l |
| Hydraulic Tank Only | 27.2 gal (US) / 103 l |
| Note | Cat U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)*** • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels • Cat engines meeting Brazil MAR-1 emissions standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA, are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: • 100% biodiesel FAME (fatty acid methyl ester)*** • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.4 kg (3.1 lb) of refrigerant which has a CO2 equivalent of 2.002 metric tonnes (2.206 tons). |
| Axles | |
|---|---|
| Front | Planetary – Fixed |
| Rear | Planetary – Oscillating |
| Oscillation Angle | ±6° |
| Braking System | |
|---|---|
| Service Brakes | Multi Disc Wet (Enclosed) 2 WHL |
| Parking Brake | Spring Applied, Hydraulic Released |
| Sound Performance - Tier 4 Final / Stage V | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008) | 112 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)* | 109 dB(A) |
| Note (1) | * Sound suppression equipped |
| Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Sound Performance - Tier 3 / Stage IIIA | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008) | 112 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)* | 110 dB(A) |
| Note (1) | * Sound suppression equipped |
| Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Dimensions (Approximate) | |
|---|---|
| Height to Top of Beacon | 15.2 ft / 4634 mm |
| Height to Top of Air Conditioning Condenser | 15.2 ft / 4626 mm |
| Height - Cab Roof | 14.1 ft / 4285 mm |
| Height - Top of Exhaust Pipe | 15.1 ft / 4606 mm |
| Height - Top of Hood | 11.3 ft / 3430 mm |
| Ground Clearance to Hitch | 2.1 ft / 639 mm |
| Ground Clearance to Transmission Guard | 2.1 ft / 634 mm |
| Ground Clearance to Bottom of Bumper | 3.2 ft / 965 mm |
| Centerline of Rear Axle to Rear Compactor Guard | 11.3 ft / 3454 mm |
| Hitch to Centerline of Front Axle | 7.5 ft / 2275 mm |
| Wheel Base | 14.9 ft / 4550 mm |
| Width over Front Striker Bars | 12.9 ft / 3930 mm |
| Width over Rear Striker Bars | 12.9 ft / 3933 mm |
| Width over Platform | 10.5 ft / 3196 mm |
| Width over Drums | 14 ft / 4280 mm |
| Overall Machine Length with Semi U-Blade | 35.8 ft / 10914 mm |
| Straight Blade | |
|---|---|
| Capacity | 25.9 yd³ / 19.8 m³ |
| Overall Width | 17 ft / 5193 mm |
| Height | 7.4 ft / 2260 mm |
| Height of Cutting Edge | 3.7 ft / 1125 mm |
| Digging Depth | 1.2 ft / 364 mm |
| Ground Clearance | 5.7 ft / 1730 mm |
| Turning Radius – Outside Corner of Blade | 28.7 ft / 8737 mm |
| Turning Radius - Inside of Wheels | 11.9 ft / 3635 mm |
| Weight | 6894 lb / 3127 kg |
| Total Operating Weight | 123000 lb / 55931 kg |
| Semi U-Blade | |
|---|---|
| Capacity | 29.3 yd³ / 22.4 m³ |
| Overall Width | 17.4 ft / 5313 mm |
| Height | 7.5 ft / 2294 mm |
| Height of Cutting Edge | 4.1 ft / 1255 mm |
| Digging Depth | 1.2 ft / 362 mm |
| Ground Clearance | 5.7 ft / 1735 mm |
| Turning Radius – Outside Corner of Blade | 28.9 ft / 8823 mm |
| Turning Radius – Inside of Wheels | 11.9 ft / 3635 mm |
| Weight | 7963 lb / 3612 kg |
| Total Operating Weight | 124063 lb / 56413 kg |
| U-Blade | |
|---|---|
| Capacity | 33.6 yd³ / 25.7 m³ |
| Overall Width | 17.4 ft / 5290 mm |
| Height | 7.2 ft / 2204 mm |
| Height of Cutting Edge | 4.1 ft / 1255 mm |
| Digging Depth | 3.1 ft / 934 mm |
| Ground Clearance | 3.9 ft / 1198 mm |
| Turning Radius – Outside Corner of Blade | 28.8 ft / 8795 mm |
| Turning Radius – Inside of Wheels | 11.9 ft / 3635 mm |
| Weight | 7696 lb / 3491 kg |
| Total Operating Weight | 123785 lb / 56287 kg |
| Wheels | |
|---|---|
| Combination Tips (Weight Group) | 28250 lb / 12814 kg |
| Plus Tips - Weight (Group) | 29784 lb / 13510 kg |
| Paddle Tips - Weight (Group) | 272227 lb / 12350 kg |
| Diamond Tips Weight (Group) | 32659 lb / 14814 kg |
| Outside Diameter | 83.8 in / 2128 mm |
| Outside Diameter - Diamond | 84.3 in / 2140 mm |
| Drum Diameter | 69.7 in / 1770 mm |
| Drum Width | 55.1 in / 1400 mm |
| Feet Per Row | 8 |
| Feet Per Wheel | 40 |
| Replaceable | Weld on |
| Width Over Drums | 4280 mm / 168.5 in |
| Tip Height | 179 mm / 7 in |
| Tip Height - Diamond | 7.25 in / 184 mm |
