775 (07)
- Nominal Payload Class (100%)
- 70.5 ton (US) / 64 t
- Top Speed - Loaded
- 41.6 mile/h / 66.9 km/h
- Rated Engine Speed
- 1800 r/min

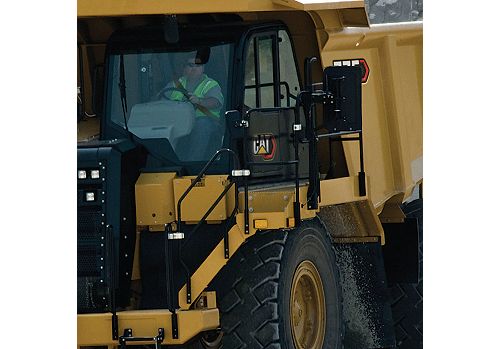

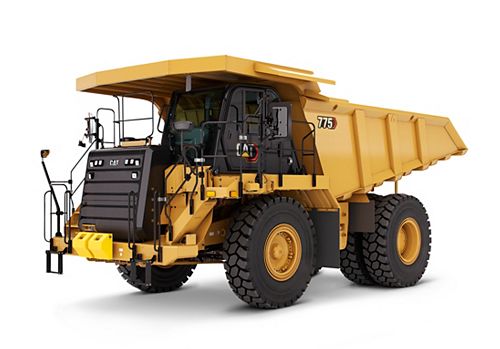

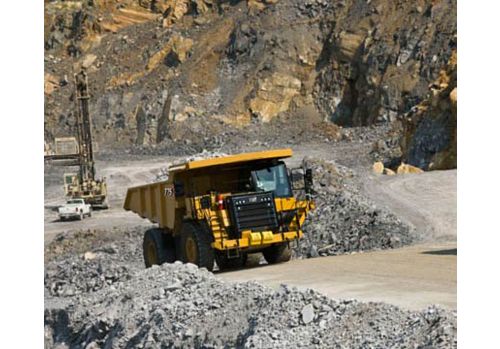

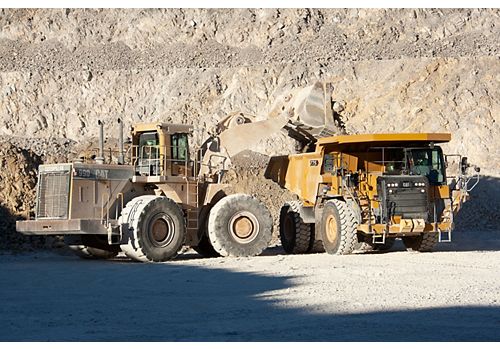

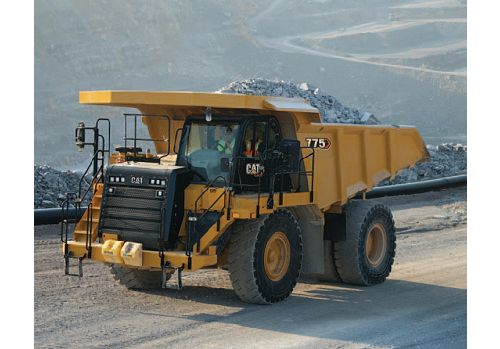

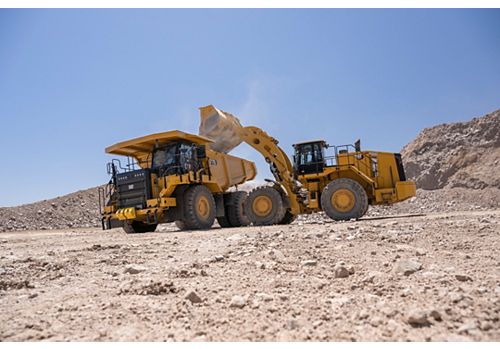

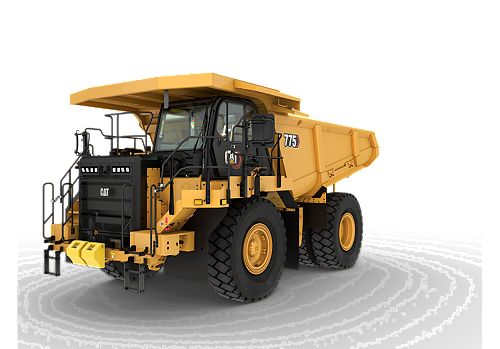

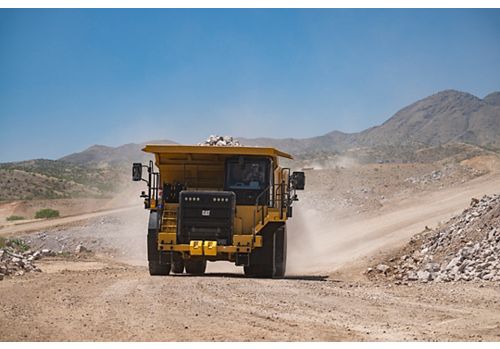

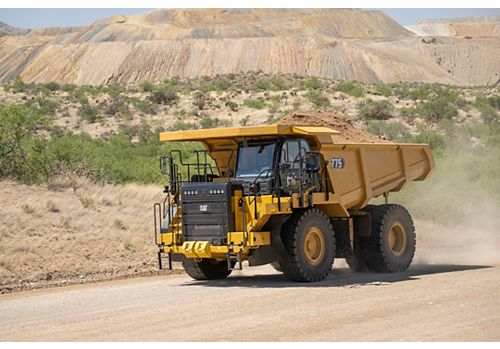

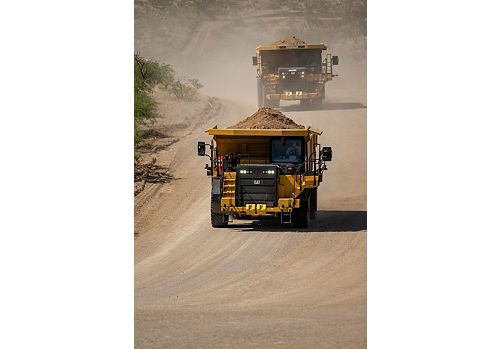

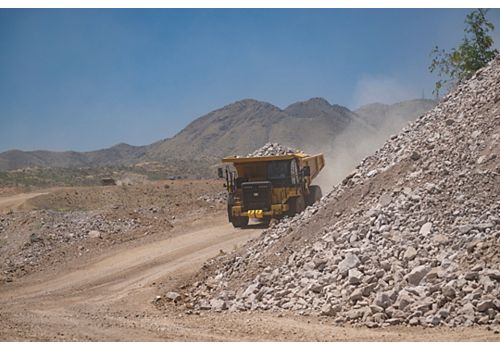

Having a solid track record in the quarry and aggregates industry, Cat’s 775 has been designed and manufactured using the latest quality control technologies—both virtually and hands on—to ensure your Off-Highway Truck is ready to do work. Built with a Cat C27 diesel engine, the 775 has improved fuel efficiency and delivers an additional 5% horsepower. Our 775 is a great pass match for the Cat 988K or 990K Wheel Loader, too. By having the Cat Off-Highway Trucks in your haul fleets, you can be more productive, spend less time on maintenance, and support the environment with new levels of eco performance. Which ultimately allows you to make a positive impact within your business and community every day.
| Engine | |
|---|---|
| Engine Model | Cat® C27 |
| Rated Engine Speed | 1800 r/min |
| Gross Power - SAE J1995:2014 | 825 hp / 615 kW |
| Net Power - SAE J1349:2011 | 768 hp / 572 kW |
| Net Power - 80/1269/EEC | 775 hp / 578 kW |
| Net Power - ISO 9249 | 775 hp / 578 kW |
| Bore | 5.4 in / 137 mm |
| Stroke | 6 in / 152 mm |
| Displacement | 1648 in³ / 27 l |
| Engine Power - ISO 14396:2002 | 812 hp / 605.2 kW |
| Note (2) | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). |
| Net Torque | 3148 ft-lb / 4269 N·m |
| Peak Torque - Speed | 1200 r/min |
| Note (1) | Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard. |
| Note (3) | No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent. |
| Emissions | Meets EU Stage V emission standards. |
| Weights - Approximate | |
|---|---|
| Maximum Gross Vehicle Weight | 246503 lb / 111812 kg |
| Operating Specifications | |
|---|---|
| Nominal Payload Class (100%) | 70.5 ton (US) / 64 t |
| Top Speed - Loaded | 41.6 mile/h / 66.9 km/h |
| Maximum Working Payload (110%) | 77.5 ton (US) / 70.3 t |
| Target Payload (100%) | 70.5 ton (US) / 64 t |
| Maximum Allowable Payload (120%)* | 84.6 ton (US) / 76.7 t |
| Note (2) | * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. |
| Note (1) | Capacity with Dual Slope body – no liner. |
| Body Capacity - SAE 2:1 | 55.23 yd³ / 42.23 m³ |
| Transmission | |
|---|---|
| Forward - 1 | 6.6 mile/h / 10.6 km/h |
| Forward - 2 | 9.3 mile/h / 15 km/h |
| Forward - 3 | 12.6 mile/h / 20.3 km/h |
| Forward - 4 | 16.8 mile/h / 27 km/h |
| Forward - 5 | 22.8 mile/h / 36.7 km/h |
| Forward - 6 | 30.7 mile/h / 49.4 km/h |
| Forward - 7 | 41.6 mile/h / 66.9 km/h |
| Reverse | 8.7 mile/h / 14 km/h |
| Note | Maximum travel speeds with standard 24.00R35 (E4) tires. |
| Final Drives | |
|---|---|
| Differential Ratio | 3.64:1 |
| Planetary Ratio | 4.80:1 |
| Total Reduction Ratio | 17.49:1 |
| Brakes | |
|---|---|
| Brake Surface - Front | 257 in² / 655 cm² |
| Brake Surface - Rear | 9497 in² / 61269 cm² |
| Brake Standards | ISO 3450:2011 |
| Body Hoists | |
|---|---|
| Pump Flow - High Idle | 118 gal/min / 448 l/min |
| Relief Valve Setting - Raise | 2502 psi / 17250 kPa |
| Relief Valve Setting - Lower | 500 psi / 3450 kPa |
| Body Raise Time - High Idle | 10 s |
| Body Lower Time - Float | 14 s |
| Body Power Down - High Idle | 14 s |
| Capacity - Dual Slope - 100% Fill Factor | |
|---|---|
| Struck | 42.7 yd³ / 32.6 m³ |
| Heaped (SAE 2:1)* | 55.5 yd³ / 42.2 m³ |
| Note (1) | Contact your local Cat dealer for body recommendation. |
| Note (2) | *ISO 6483:1980 |
| Capacity - Flat Floor - 100% Fill Factor | |
|---|---|
| Struck | 42.2 yd³ / 32.3 m³ |
| Heaped (SAE 2:1)* | 55.2 yd³ / 42.2 m³ |
| Note (1) | Contact your local Cat dealer for body recommendation. |
| Note (2) | *ISO 6483:1980 |
| Weight Distributions - Approximate | |
|---|---|
| Front Axle - Empty | 50 % |
| Front Axle - Loaded | 34 % |
| Rear Axle - Empty | 50 % |
| Rear Axle - Loaded | 66 % |
| Suspension | |
|---|---|
| Empty Loaded Cylinder Stroke Front | 9.2 in / 234 mm |
| Rear Axle - Oscillation | 8.1° |
| Empty Loaded Cylinder Stroke Rear | 5.8 in / 149 mm |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 210 gal (US) / 795 l |
| Cooling System | 45 gal (US) / 171 l |
| Differential - Final Drives | 38 gal (US) / 145 l |
| Steering Tank | 9.5 gal (US) / 36 l |
| Steering System - Including Tank | 14 gal (US) / 54 l |
| Brake Hoist System | 85 gal (US) / 322 l |
| Torque Converter - Transmission System - LRC | 16 gal (US) / 61 l |
| Crankcase | 24 gal (US) / 90 l |
| Brake/Hoist Hydraulic Tank | 46.5 gal (US) / 176 l |
| Torque Converter - Transmission System - HRC | 18 gal (US) / 70 l |
| Tires | |
|---|---|
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
| Note (1) | Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
| Standard Tire | 24.00R35 (E4) |
| ROPS | |
|---|---|
| FOPS Standards | Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. |
| ROPS Standards | Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. |
| Sound | |
|---|---|
| Sound Standards (1) | The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. |
| Sound Standards (2) | The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid-gear moving operation is 86 dB(A). |
| Sound Standards (3) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
| Steering | |
|---|---|
| Turning Diameter - Front | 77.1 ft / 23.5 m |
| Steering Standards | ISO 5010:2007 |
| Steer Angle | 31 ° |
| Turning Circle - Clearance Diameter | 85.6 ft / 26.1 m |
| Sustainability | |
|---|---|
| Recyclability | 98% |
