772 (07)

Nominal Payload Class (100%)
51.6 ton (US) / 46.8 t
Top Speed - Loaded
49.2 mile/h / 79.1 km/h
Rated Engine Speed
1700 r/min

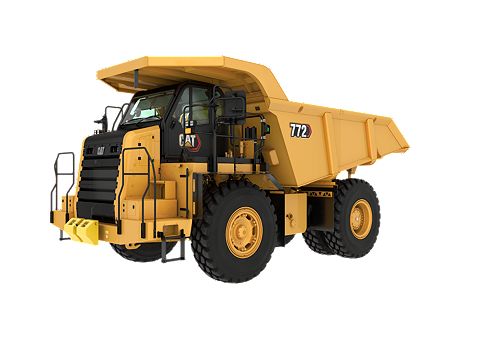

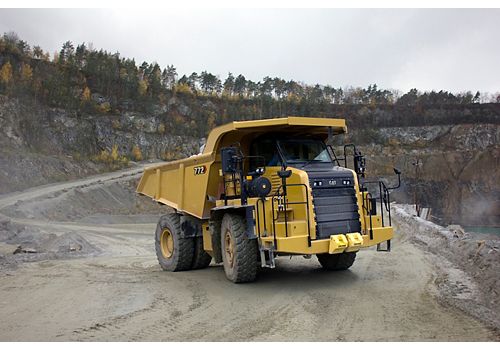

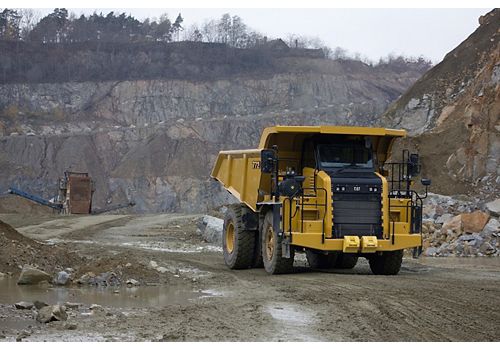

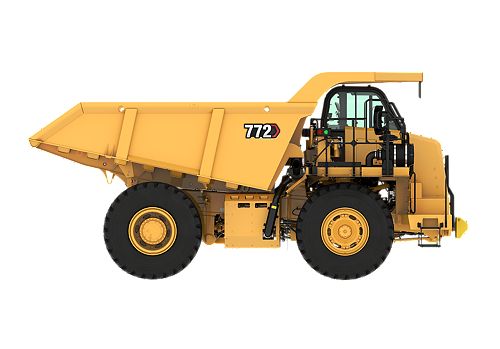

In 1963, Caterpillar introduced the 769, a revolutionary off-road truck that was purpose built for the rigors of mining and heavy construction. Fifty years later, our trucks have never been better. We've taken the best of our rugged, dependable heritage and combined it with technologies that help our environment, make your operators more productive and dramatically improve the economics of your haul fleet. This 772 has an updated traction control system to keep you moving when the ground conditions aren't perfect, you'll see improvements in fuel use through new and flexible fuel saving strategies, and we're making the operating experience best in class with automotive quality shifting, noise reduction and cab updates. Our heritage and new use of technology are combined in this truck for one purpose - the continued success of your business.

Loan Calculator Credit Application
Build & Quote
alt 1
772 Off-Highway Truck - Key Features (Global) 772 Off-Highway Truck - Technical Specifications (Global)
Engine
Engine Model Cat® C18
Rated Engine Speed 1700 r/min
Gross Power - SAE J1995 605 HP / 451 kW
Net Power - SAE J1349 550 HP / 410 kW
Net Power - ISO 9249 550 HP / 410 kW
Number of Cylinders 6
Bore 5.7 in / 145 mm
Stroke 7.2 in / 183 mm
Displacement 1105 in³ / 18.1 l
Net Torque - SAE J1349 2221 ft-lb / 3012 N·m
Engine Power - ISO 14396 598 HP / 446 kW
Weights - Approximate
Target Gross Machine Operating Weight 181000 lb / 82100 kg
Chassis Weight 59223 lb / 26863 kg
Body Weight 17306 lb / 8258 kg
Target Gross Machine Weight 181000 lb / 82100 kg
Operating Specifications
Nominal Payload Class (100%) 51.6 ton (US) / 46.8 t
Top Speed - Loaded 49.2 mile/h / 79.1 km/h
Maximum Payload Class (110%) 56.7 ton (US) / 51.4 ton (US)
Body Capacity - SAE 2:1 40.8 yd³ / 31.2 m³
Target Payload Capacity 51.6 ton (US) / 46.8 ton (US)
Not to Exceed Payload (120%) 61.9 ton (US) / 56.1 ton (US)
Body Capacity (SAE 2:1)** 40.8 yd³ / 31.2 m³
Transmission
Forward - 1 8 mile/h / 12.8 km/h
Forward - 2 10.9 mile/h / 17.5 km/h
Forward - 3 14.8 mile/h / 23.7 km/h
Forward - 4 19.8 mile/h / 31.9 km/h
Forward - 5 26.9 mile/h / 43.3 km/h
Forward - 6 36.2 mile/h / 58.4 km/h
Forward - 7 49.2 mile/h / 79.2 km/h
Reverse 10.4 mile/h / 16.8 km/h
Final Drives
Differential Ratio 2.74:1
Planetary Ratio 4.80:1
Total Reduction Ratio 13.14:1
Brakes
Brake Surface - Front 216 in² / 1395 cm²
Brake Surface - Rear 7794 in² / 50281 cm²
Brake Standards ISO 3450:1996
Body Hoists
Pump Flow - High Idle 112 gal/min / 425 l/min
Relief Valve Setting - Raise 2750 psi / 18950 kPa
Relief Valve Setting - Lower 500 psi / 3450 kPa
Body Raise Time - High Idle 8 s
Body Lower Time - Float 10 s
Body Power Down - High Idle 10 s
Capacity - Dual Slope - 100% Fill Factor
Heaped 2:1 (SAE) 40.8 yd³ / 31.2 m³
Struck 31.3 yd³ / 23.9 m³
Capacity - Flat Floor - 100% Fill Factor
Struck 31.3 yd³ / 23.9 m³
Heaped 2:1 (SAE) 40.9 yd³ / 31.3 m³
Weight Distributions - Approximate
Front Axle - Empty 51.4 %
Front Axle - Loaded 34.2 %
Rear Axle - Empty 48.6 %
Rear Axle - Loaded 65.8 %
Suspension
Rear axle - Oscillation 8.9 °
Empty Loaded Cylinder Stroke Front 9.2 in / 234 mm
Empty Loaded Cylinder Stroke Rear 5.8 in / 149 mm
Service Refill Capacities
Fuel Tank 140 gal (US) / 530 l
Cooling System 33 gal (US) / 125 l
Differential - Final Drives 47 gal (US) / 180 l
Steering Tank 14.5 gal (US) / 55 l
Steering System - Including Tank 23 gal (US) / 87 l
Torque Converter - Transmission System 17 gal (US) / 64 l
Brake Hoist System 60 gal (US) / 227 l
DEF Tank 6 gal (US) / 21 l
Crankcase 17 gal (US) / 64 l
Brake/Hoist Hydraulic Tank 38 gal (US) / 145 l
Tires
Standard Tire 21.00R33 (E4)
ROPS
FOPS Standards FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria.
ROPS Standards ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
Sound
Sound Standards (3) Operator Equivalent Sound Pressure Level (Leq) is 78 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab.
Sound Standards (2) Exterior sound pressure power level for standard machine measured according to tests specified in ISO 6395:2008 is 118 dB(A).
Sound Standards (1) Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment.
Steering
Turning Diameter - Front 57.7 ft / 17.6 m
Steering Standards ISO 5010:2007
Steer Angle 40.5 °
Turning Circle - Clearance Diameter 66.6 ft / 20.3 m
Dimensions
Height - Top of ROPS 12.8 ft / 3907 mm
Inside Body Depth - Maximum 5.7 ft / 1747 mm
Overall Body Length 26.8 ft / 8164 mm
Inside Body Length 19 ft / 5781 mm
Overall Length 28.9 ft / 8808 mm
Wheel Base 13 ft / 3960 mm
Rear Axle - Tail 9.5 ft / 2598 mm
Ground Clearance 1.6 ft / 618 mm
Dump Clearance 1.5 ft / 562 mm
Loading Height - Empty 11.6 ft / 3570 mm
Overall Height - Body Raised 27.1 ft / 8257 mm
Operating Width 15.7 ft / 4780 mm
Centerline Front Tire Width 10.4 ft / 3165 mm
Engine Guard Clearance 2 ft / 618 mm
Outside Body Width 12.9 ft / 3931 mm
Inside Body Width 11.9 ft / 3642 mm
Front Canopy Height 13.7 ft / 4159 mm
Rear Axle - Clearance 1.9 ft / 572 mm
Centerline of Rear Dual Tire Width 8.7 ft / 2652 mm
Overall Tire Width 12.9 ft / 3927 mm

Standard Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • ELECTRICAL
    • Alarm, backup
    • Alternator, 115 ampere
    • Auxiliary jump start receptacle
    • Batteries, maintenance-free, 12V (2), 190 amp-hour
    • Electrical system, 24V
    • Lighting system: - Backup light (halogen) - Directional signals/hazard warning (front and rear LED) - Headlights, (halogen) with dimmer - Operator access courtesy lights (Developing Market Only)
  • PRODUCT LINK™ COMMUNICATIONS
    • Product Link Ready
  • GUARDS
    • Driveline
    • Engine crankcase
  • OPERATOR ENVIRONMENT
    • Air conditioning
    • Ashtray and cigarette lighter
    • Coat hook
    • Cup holders (4)
    • Diagnostic connection port, 24V
    • Entertainment Radio Ready: - 5 amp converter - Speakers - Antenna - Wiring harness
    • Gauges/indicators: - Air cleaner service indicator - electronic - Brake oil temperature gauge - Coolant temperature gauge - Hour meter - Tachometer - Engine overspeed indicator - Fuel level - Speedometer with odometer - Transmission gear indicator
    • Heater/defroster (11 070 kCal/43,930 BTU)
    • Hoist lever
    • Horn, electric
    • Light - dome
    • Light - courtesy
    • Messenger, display unit
    • Mirrors
    • Power port, 12V
    • ROPS cab, insulated/sound suppressed
    • Seat, Cat Comfort Series III: - full air suspension - four point harness
    • Steering wheel, padded, tilt and telescopic
    • Storage compartment
    • Sun visor, tinted glass
    • Throttle lock
    • Windshield wiper (intermittent) and washer
  • POWER TRAIN
    • Air-To-Air Aftercooler (ATAAC)
    • Air cleaner with precleaner (1)
    • Automatic cold mode idle control
    • Electric start
    • Turbocharger
    • Braking system, hydraulic actuated: - Automatic Retarder Control (ARC) (utilizes rear oil-cooled, multiple disc brakes) - Brake release motor (towing) - Caliper-disc (front) - Oil-cooled, multiple disc (rear) - Parking - Secondary - Service
    • Transmission: - 7 speed automatic powershift - Body up shift inhibitor - Controlled throttle shifting - Directional shift management - Downshift inhibitor - Neutral start switch - Neutral coast inhibitor - Reverse shift inhibitor - Reverse neutralizer during dumping - Programmable top gear selection
  • SUSPENSION SYSTEMS
    • Suspension, front and rear
  • OTHER STANDARD EQUIPMENT
    • Body safety pin (secures body in up position)
    • Body down indicator
    • CD ROM parts book
    • Fan, hydraulic demand
    • Fuel tank (530 L/140 gal)
    • Guard, engine compartment
    • Guard, mud
    • Ground level battery disconnect
    • Ground level engine shutdown
    • Ground level grease fittings
    • Reservoirs (separate): - Brake/converter/hoist - Steering - Transmission/torque converter
    • Rims 15 × 33
    • Rock ejectors
    • Service platform, left and right side
    • Supplemental steering (automatic)
    • Tie down eyes
    • Tow hooks (front)/Tow pin (rear)
    • Vandalism protection locks
  • ANTIFREEZE
    • Extended Life Coolant to -35° C (-30° F)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
Cat Inspect
Cat Product Link

Payload

Cat® Payload technologies provide on-the-go load weighing to assist operators with hitting precise load targets every time, helping to reduce load times, optimize loading efficiency and increase jobsite productivity. Operators can track daily productivity from the cab, with quick access to information such as truck target weights, loads and cycle counts, material movement and daily totals. When combined with Cat Link technologies, detailed data can be accessed remotely to manage overall operations and keep production targets on track.

Model
Cat Payload with Truck Production Management System

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
VisionLink® Productivity
