988 XE
- Engine Power - ISO 14396:2002
- 580 hp / 432 kW
- Operating Weight
- 116362 lb / 52781 kg
- Net Power - SAE J1349:2011
- 538 hp / 401 kW

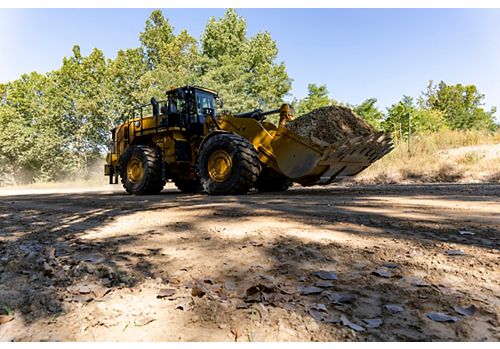

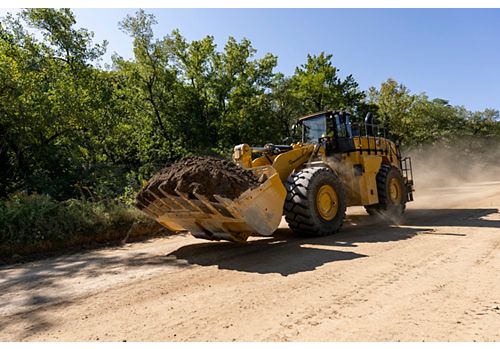

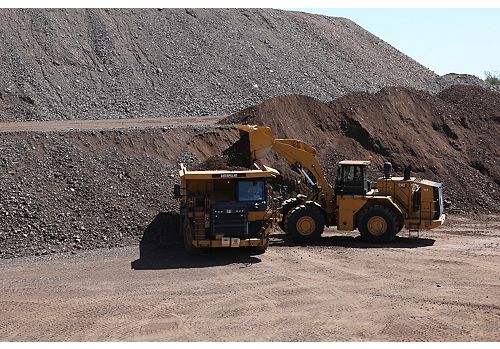

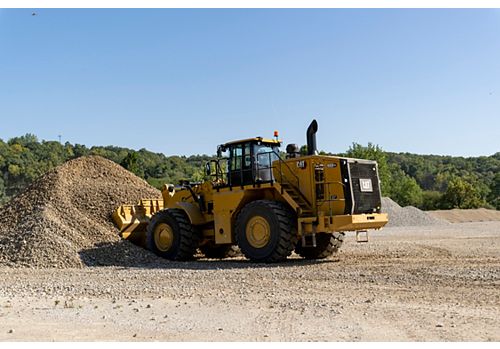

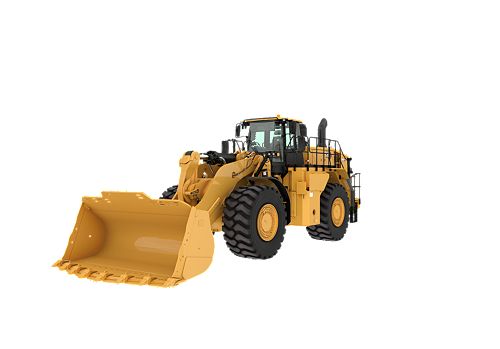

Move more material in less time at a low cost per ton with the Cat® 988 XE wheel loader. The electric-drive 988 XE is faster and more efficient than the powershift 988 in applications that demand high performance and production. Get a fast return on your investment with great overall fuel efficiency and designed-in durability for multiple life cycles.
| Engine | |
|---|---|
| Engine Power - ISO 14396:2002 | 580 hp / 432 kW |
| Engine Model | Cat® C18 |
| Rated Speed | 1,700 rpm |
| Peak Power Speed | 1,500 rpm |
| Net Power - SAE J1349:2011 | 538 hp / 401 kW |
| Gross Power - SAE J1995:2014 | 588 hp / 436 kW |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Displacement | 1105 in³ / 18.1 l |
| Peak Torque - 1,200 rpm | 2230 lbf·ft / 3023 N·m |
| Torque Rise | 58% |
| Note (1) | Two engine emissions options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Note (2) | Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. |
| Operating Specifications | |
|---|---|
| Operating Weight | 116362 lb / 52781 kg |
| Bucket Capacity Range | 4.7-13 m3 (6.2-17 yd3) |
| Rated Payload - Quarry Face | 12.5 t / 11.3 t |
| Rated Payload - Loose Material | 16 t / 14.5 t |
| Transmission | |
|---|---|
| Transmission Type | Cat switched reluctance electric drive |
| Forward 1 (virtual) | 4.3 mile/h / 7 km/h |
| Forward 2 (virtual) | 7 mile/h / 11.3 km/h |
| Forward 3 (virtual) | 13.8 mile/h / 22.2 km/h |
| Forward 4 (virtual) | 20 mile/h / 32.1 km/h |
| Reverse 1 (virtual) | 4.3 mile/h / 7 km/h |
| Reverse 2 (virtual) | 7 mile/h / 11.3 km/h |
| Reverse 3 (virtual) | 17.5 mile/h / 28.2 km/h |
| Hydraulic System - Lift/Tilt | |
|---|---|
| Lift/Tilt System - Circuit | EH-Positive Flow Control, Flow Sharing |
| Lift/Tilt System - Pump | Variable displacement piston |
| Maximum Flow at 1,400-1,600 rpm | 153 gal/min / 580 l/min |
| Relief Valve Setting - Lift/Tilt | 4757 psi / 32800 kPa |
| Lift Cylinder - Bore | 8.7 in / 210 mm |
| Lift Cylinder - Stroke | 41.3 in / 1050 mm |
| Tilt Cylinder - Bore | 8.7 in / 269 mm |
| Tilt Cylinder - Stroke | 27 in / 685 mm |
| Hydraulic Cycle Times | |
|---|---|
| Rack Back | 4.5 s |
| Raise | 8 s |
| Dump | 2.2 s |
| Lower Float Down | 3.5 s |
| Total Hydraulic Cycle Time | 18.2 s |
| Hydraulic System - Steering | |
|---|---|
| Steering System - Circuit | Pilot, load sensing |
| Steering System - Pump | Piston, variable displacement |
| Maximum Flow at 1,400-1,600 rpm | 71.3 gal/min / 270 l/min |
| Steering Cut Off Pressure | 4351 psi / 30000 kPa |
| Total Steering Angle | 86° |
| Steering Cycle Times - High Idle | 3.4 s |
| Steering Cycle Times - Low Idle | 5.6 s |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons). |
| Axles | |
|---|---|
| Front | Fixed |
| Rear | Trunnion |
| Oscillation Angle | 13° |
| Brakes | |
|---|---|
| Brakes | ISO 3450:2011 |
| Operator's Cab | |
|---|---|
| ROPS/FOPS | ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards |
| Sound Performance - Tier 4 Final / Stage V | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008) | 109 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 109 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Sound Performance - Tier 3 / Stage IIIA | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008) | 110 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 110 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 147 gal (US) / 555 l |
| Cooling System - Jacket Water | 30 gal (US) / 112 l |
| Cooling Systems - Power Train | 8 gal (US) / 30 l |
| Engine Crankcase | 16 gal (US) / 60 l |
| Diesel Exhaust Fluid Tank | 8.7 gal (US) / 33 l |
| Transmission | 16 gal (US) / 60 l |
| Differential - Final Drives - Front | 49 gal (US) / 186 l |
| Differential - Final Drives - Rear | 49 gal (US) / 186 l |
| Hydraulic System - Implement/Steering | 126 gal (US) / 475 l |
| Note | All non-road Tier 4 Final/Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: – 20% biodiesel FAME (fatty acid methyl ester)* – 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. • Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** • For pre-Tier 4 engines: Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: – 100% biodiesel FAME (fatty acid methyl ester)* – 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
| Dimensions (Approximate) - Standard Lift | |
|---|---|
| Ground to Top of ROPS | 13.8 ft / 4202 mm |
| Ground to Top of Exhaust Stacks | 14.8 ft / 4498 mm |
| Ground to Top of Hood | 10.9 ft / 3334 mm |
| Ground to Bumper Clearance | 3.1 ft / 933 mm |
| Rear Axle - Centerline to Bumper | 10.5 ft / 3187 mm |
| Front Axle Centerline to Bucket Tip | 14 ft / 14 mm |
| Wheel Base | 14.9 ft / 4550 mm |
| Maximum Overall Length | 39.3 ft / 11991 mm |
| Ground to Lower Hitch Clearance | 1.9 ft / 568 mm |
| Ground to Center of Axles | 3.2 ft / 978 mm |
| Clearance at Maximum Lift | 11.9 ft / 3641 mm |
| B-Pin Height - Maximum Lift | 18 ft / 5479 mm |
| Maximum Overall Height - Bucket Raised | 24.5 ft / 7455 mm |
| Reach - Maximum Lift | 6.5 ft / 1981 mm |
| Note | Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. |
| Dimensions (Approximate) - High Lift | |
|---|---|
| Ground to Top of ROPS | 13.8 ft / 4202 mm |
| Ground to Top of Exhaust Stacks | 14.8 ft / 4498 mm |
| Ground to Top of Hood | 10.9 ft / 3334 mm |
| Ground to Bumper Clearance | 3.1 ft / 933 mm |
| Rear Axle - Centerline to Bumper | 10.5 ft / 3187 mm |
| Front Axle Centerline to Bucket Tip | 15.3 ft / 4661 mm |
| Wheel Base | 14.9 ft / 4550 mm |
| Maximum Overall Length | 40.7 ft / 12398 mm |
| Ground to Lower Hitch Clearance | 1.9 ft / 568 mm |
| Ground to Center of Axles | 3.2 ft / 978 mm |
| Clearance at Maximum Lift | 13.3 ft / 4043 mm |
| B-Pin Height - Maximum Lift | 19.3 ft / 5881 mm |
| Maximum Overall Height - Bucket Raised | 25.8 ft / 7849 mm |
| Reach - Maximum Lift | 6.8 ft / 2062 mm |
| Note | Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. |

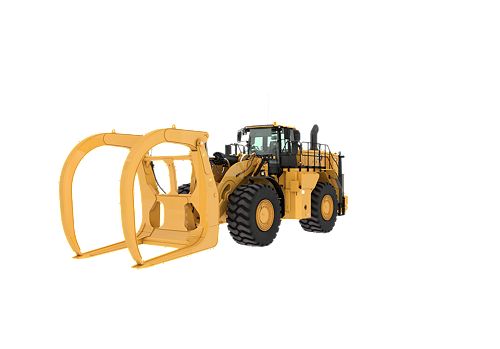

| Dimensions - Millyard Linkage | |
|---|---|
| Ground to Top of ROPS | 13.8 ft / 4221 mm |
| Ground to Top of Exhaust Stacks | 13.8 ft / 4214 mm |
| Ground to Top of Hood | 10.9 ft / 3334 mm |
| Ground to Bumper Clearance | 3.1 ft / 933 mm |
| Rear Axle - Centerline to Bumper | 10.5 ft / 3187 mm |
| Front Axle Centerline to Fork Tip | 16.5 ft / 5023 mm |
| Wheel Base | 14.9 ft / 4550 mm |
| Maximum Overall Length | 41.9 ft / 12761 mm |
| Ground to Lower Hitch Clearance | 1.9 ft / 568 mm |
| Ground to Center of Front Axle | 3.2 ft / 978 mm |
| Fork Height with Level Arms | 8.1 ft / 2474 mm |
| Fork Top Clamp Opening | 13.1 ft / 4006 mm |
| Fork Height at Maximum Lift | 17.2 ft / 5242 mm |
| Hinge Pin Height at Maximum Lift | 16.1 ft / 4918 mm |
| Dump Angle at Maximum Lift | -39.4 ° |
