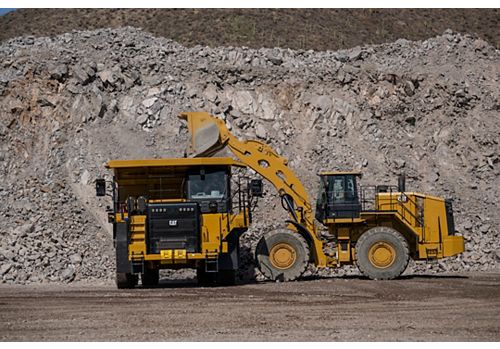

Operating Specifications
Nominal Payload Class (100%)	71.6 ton (US) / 65 t
Top Speed - Loaded	67 km/h

Engine
Engine Model	Cat® C27
Rated Engine Speed	1800 r/min
Gross Power - SAE J1995:2014	825 hp / 615 kW
Engine Power - ISO 14396:2002	811 hp / 605 kW
Net Power - SAE J1349:2011	742 hp / 553 kW
Net Power - ISO 9249	742 hp / 553 kW
Peak Torque - Speed	1200 r/min
Net Torque - SAE J1349	3101 N·m / 4205 N·m
Net Torque Rise	43
Bore	5.3 in / 137 mm
Stroke	6 in / 152 mm
Displacement	1647 in³ / 27 l
Emissions	Meets EU Stage V emission standards.
Note (1)	Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard.
Note (2)	Net power advertised is the power available at the rated speed, measured at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan.
Note (3)	MIN NET SAE J1349:2011/ISO 9249:2007 Net power advertised is the power available at the flywheel when the engine is equipped with fan at maximum speed, air intake system, exhaust system, and alternator. Net torque rise meets SAE J1349.

Transmission
Forward - 1	6.6 mile/h / 10.7 km/h
Forward - 2	9.3 mile/h / 14.9 km/h
Forward - 3	12.6 mile/h / 20.2 km/h
Forward - 4	16.9 mile/h / 27.1 km/h
Forward - 5	22.8 mile/h / 36.7 km/h
Forward - 6	30.8 mile/h / 49.5 km/h
Forward - 7	41.6 mile/h / 67 km/h
Reverse	8.7 mile/h / 14 km/h
Note	Maximum travel speeds with standard 24.00R35 (E4) tires.

Final Drives
Differential Ratio	3.64:1
Planetary Ratio	4.80:1
Total Reduction Ratio	17.49:1

Brakes
Brake Surface - Front	25.7 in² / 655 cm²
Brake Surface - Rear	9497 in² / 61269 cm²
Brake Standards	ISO 3450:2011

Body Hoists
Pump Flow - High Idle	118 gpm / 448 L/min
Relief Valve Setting - Raise	2502 psi / 17250 kPa
Relief Valve Setting - Lower	500 psi / 3450 kPa
Body Raise Time - High Idle	9.5 s
Body Lower Time - Float	12.5 s

Weight Distributions - Approximate
Front Axle - Empty	52 %
Front Axle - Loaded	34 %
Rear Axle - Empty	48 %
Rear Axle - Loaded	66 %

Suspension
Empty Loaded Cylinder Stroke Front	8.3 in / 212 mm
Empty Loaded Cylinder Stroke Rear	5.4 in / 137 mm
Rear Axle - Oscillation	9.0°

Sound
Sound Standards	Operator Sound Level (ISO 6396:2008) 76 dB(A) Machine Sound Level (ISO 6395:2008) 119 dB(A)
Sound Standards (1)	The operator sound pressure level is 76 dB(A), measured according to the test procedures and conditions specified in ISO 6396:2008 for the standard machine configuration. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Sound Standards (2)	Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Standards (3)	The machine sound power level is 119 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the standard machine configuration. The measurement was conducted at 70% of the maximum engine cooling fan speed.

Cab
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R1234yf. Refer to the machine labeling for identification of the gas.– If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.85 kg (4.1 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons)

Steering
Steering Standards	ISO 5010:2019
Steer Angle	36 °
Turning Diameter - Front	58 ft / 17.7 m
Turning Circle - Clearance Diameter	66 ft / 20.2 m

ROPS
ROPS/FOPS Standards	Rollover Protective Structure (ROPS)/Falling Objects Protective Structure (FOPS) Standards
ROPS Standards	Rollover protective structure (ROPS) meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer ROPS criteria.
FOPS Standards	Falling objects protective structure (FOPS) meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II for trainer FOPS criteria.

Tires
Standard Tire	24.00R35 (E4)
Note (1)	Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2)	Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.

Service Refill Capacities
Fuel Tank	210 gal (US) / 795 l
Cooling System	50.7 gal (US) / 192 l
Final Drive - Each	4 gal (US) / 15 l
Differential - Final Drives	57.6 gal (US) / 218 l
Steering System - Including Tank	14.3 gal (US) / 54 l
Brake Hoist System - Includes Tank	85.1 gal (US) / 322 l
Torque Converter - Transmission System - HRC	18.5 gal (US) / 70 l
Crankcase	23.8 gal (US) / 90 l

Sustainability
Recyclability	98%

Dimensions (Approximate)
Length, Overall	32.89 ft / 10025 mm
Wheel Base	14.25 ft / 4344 mm
Rear Axle To Tail	9.57 ft / 2918 mm
Ground Clearance	1.91 ft / 583 mm
Dump Clearance	2.49 ft / 761 mm
Loading Height - Empty	13.11 ft / 3996 mm
Inside Body Depth - Maximum	6.59 ft / 2010 mm
Overall Height - Body Raised	30.48 ft / 9291 mm
Operating Width	18.89 ft / 5758 mm
Centerline Front Tire Width	11.62 ft / 3544 mm
Engine Guard Clearance	2.79 ft / 851 mm
Outside Body Width	13.74 ft / 4190 mm
Inside Body Width	13.01 ft / 3968 mm
Front Canopy Height	144.44 ft / 4403 mm
Rear Axle Clearance - Loaded	2 ft / 610 mm
Overall Body Length	30.23 ft / 9216 mm
Centerline of Rear Dual Tire Width	9.61 ft / 2930 mm
Inside Body Length	20.66 ft / 6300 mm
Height - Top of ROPS	13.73 ft / 4187 mm
Overall Tire Width	14.59 ft / 4450 mm

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Cat C27 Tier 4/Stage V compliant diesel engine:
  – Air cleaner with precleaner (2)
  – Air-To-Air Aftercooler (ATAAC)
  – Electric start
  – Engine idle shutdown
  – Ether starting aid
  – Exhaust muffler
  – NGMR radiator
- Braking system:
  – Automatic Retarder Control (ARC)
  – Manual retarder (utilizes rear oil-cooled, multiple disc brakes)
  – Brake release motor (towing)
  – Dry disc brakes (front)
  – Front brake disconnect switch (front)
  – Oil-cooled multiple disc brakes (rear)
  – Brake wear indicator (rear)
  – Parking brake
  – Secondary brake
  – Service brake
- For Tier 4 regions only (U.S./Canada):
  – Aftertreatment system
  - NOx Reduction System (NRS)
  - Diesel Oxidation Catalyst (DOC)
  – Demand fan
  – MEUI-C fuel system
- Transmission:
  – 7-speed automatic powershift with:
  - Electronic Clutch Pressure Control (ECPC)
  - Advanced Productivity Electronic Control Strategy (APECS)
  – Automatic neutral idle
  – Autostall
  – Second gear start
SUSPENSION SYSTEMS
- Suspension, front and rear
ELECTRICAL
- Alarm backup
- Alternator, 150 Amp
- Autolube power supply ready
- Batteries, maintenance-free, 12V (2), 1,400 CCA combined
- Electrical system, 25 Amp, 24V to 12V converter
- Lighting system:
  – All LED Backup light (halogen)
  – Directional signals/hazard warning (front and rear LED)
  – Engine compartment light
  – Headlights, (halogen) with dimmer
  – Operator access courtesy lights
  – Side profile lights
  – Stop/tail lights (LED)
- Service center containing:
  – Battery jump start
  – Breakers with spare fuses
  – Lockout switch
  – Ports, ET, and VIMS
  – Service lockout switch (power without engine start)
TECHNOLOGY PRODUCTS
- Economy Modes, standard and adaptive
- Product Link Radio
- Advanced Health (VIMS)
- Cat MSS with Operator Code
- Remote flash/remote troubleshooting
- Economy Modes, standard and adaptive
- Product Link Radio
- Advanced Health (VIMS)
- Cat MSS with Operator Code
- Remote flash/remote troubleshooting
- Seat Belt Reminder System: Seat Belt and Seat Belt Inhibit
- Overload speed limiter
- Fire Suppression Ready
GUARDS
- Driveline
- Engine crankcase
- Fan
FLUIDS
- Antifreeze
- Extended life coolant to –34° C (–30° F)
- Grouped ground-level filters
OTHER STANDARD EQUIPMENT
- Body down indicator
- Body safety pin (secures body in up position)
- Center-mounted rims
- Fuel tank, 795 L (210 gal)
- Ground level battery disconnect
- Ground level engine shutdown
- Ground level grease fittings
- Operator Maintenance Manual (OMM)
- Rims 17 × 35
- Rock ejectors
- Secondary steering (electric)
- Tie down eyes
- Tow hooks (front)/tow pin (rear)
- Vandalism protection locks
OPERATOR ENVIRONMENT
- Light – courtesy
- Seat, training with lap belt
- Advisor display:
  – Air cleaner service indicator, fluid level monitoring, fuel level monitoring, display languages (market based)
- Air conditioning/heat
- Automatic temperature control
- Coat hook
- Cup holders (4)
- Diagnostic connection port, 24V
- Entertainment radio ready:
  – 5 amp converter
  – Speakers
  – Antenna
  – Wiring harness
- Foot rest
- Gauges/indicators:
  – Brake oil temperature gauge
  – Coolant temperature gauge
  – Engine overspeed indicator
  – Fuel level
  – Hour meter
  – Speedometer with odometer
  – Tachometer
  – Transmission gear indicator
- Hoist lever
- Horn
- Light – dome
- Mirrors, heated
- Power port, 24V and 12V (2)
- Rollover Protection (ROPS)/Falling Object Protection (FOPS)
- Seatbelt, 4-point seat belt with shoulder harness
- Steering wheel, padded, tilt and telescopic
- Storage compartment
- Sun visor
- Throttle lock
- Window, hinged, right side (emergency exit)
- Window, powered, left side
- Windshield wiper intermittent and washer
OTHER
- Antifreeze
- Body down indicator
- Body safety pin (secures body in up position)
- Center-mounted rims
- Clustered grease fittings
- Cold weather packages
- Driveline guards
- Engine crankcase guards
- Extended life coolant to -34C (-30F)
- Fan guards
- Fuel tank, 795 L (210 gal)
- Ground level battery disconnect
- Driveshaft catch loop guard
- Ground-Level engine shutdown
- Grouped ground-level filters
- Operator maintenance manual (OMM)
- Rims 17 x 35
- Rock ejectors
- Secondary steering (electric)
- Suspension, front and rear (EU compliant)
- Tie down eyes
- Tow Hooks, front/tow pin, rear
- Vandalism protection locks

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Cat engine brake
OPTIONAL EQUIPMENT
- Body heat
- Body liner
- Body sideboards
- Cab precleaner
- Cat Engine Brake
- Clustered grease fittings
- Cold weather packages
- Fluid fill service center
- HID lights
- Mirrors, convex
- Mirrors, heated
- Spare rim
- Surround vision
- Surround vision with Cat Detect
- Work Area Vision System (WAVS)
OPERATOR ENVIRONMENT
- Cab precleaner
- Mirrors, convex cab, left-side
TECHNOLOGY PRODUCTS
- Product Link Dual Mode
- Traction control system (TCS)
- Cat Payload
- Tire Management System
- Tire pressure monitoring
- Fire Suppression
- Hill Assist with anti-roll-back
OTHER
- Body: Exhaust Body Heat
- Body: Steel Liner
- Body: Rubber Liner
- Body: Sideboard 155mm (6in)
- Body: Tail Extension
- Body Angle Limit
- Fluid fill service center
- Tire pressure monitoring
- Camera and Radar
- Engine Bay Mud Coverage
- Spare rim
- Wheel chocks
