CB7
- Operating Weight - With Cab
- 19588 lb / 8885 kg
- Standard Operating Weight with ROPS
- 19015 lb / 8625 kg
- Standard Compaction Width
- 59 in / 1500 mm

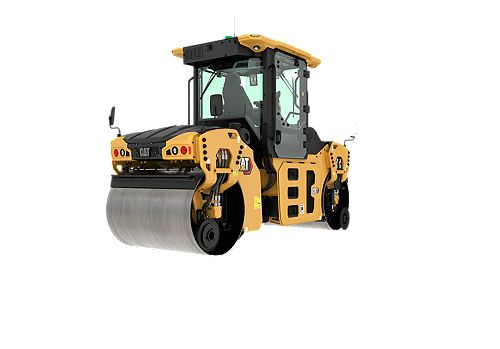

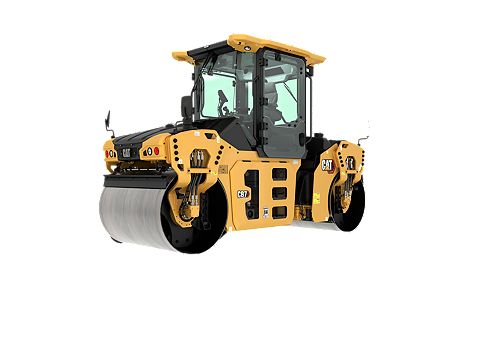

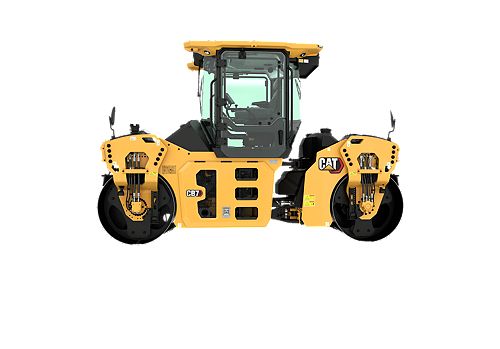

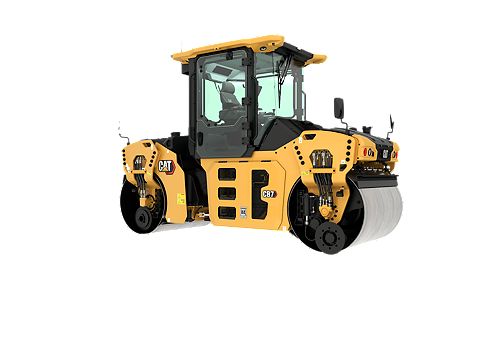

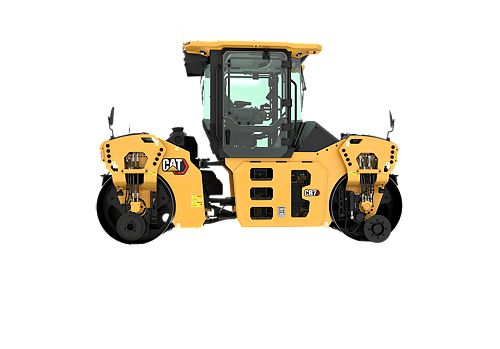

The Cat® CB7 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.
| Weights | |
|---|---|
| Operating Weight - With Cab | 19588 lb / 8885 kg |
| Maximum Operating Weight with Cab | 20404 lb / 9255 kg |
| Standard Operating Weight with ROPS | 19015 lb / 8625 kg |
| Maximum Operating Weight with ROPS | 19834 lb / 8995 kg |
| Operating Specifications | |
|---|---|
| Standard Compaction Width | 59 in / 1500 mm |
| Maximum Compaction Width | 65 in / 1670 mm |
| Static Linear Load - With Cab | 172 lb/in / 30.8 kg/cm |
| Static Linear Load - With ROPS/FOPS | 168 lb/in / 30 kg/cm |
| Travel Speed - Maximum | 7 mile/h / 11 km/h |
| Dimensions | |
|---|---|
| Overall Length | 179 in / 4558 mm |
| Overall Width | 78 in / 1977 mm |
| Height - With ROPS/FOPS or Cab | 118 in / 2984 mm |
| Wheel Base | 130 in / 3300 mm |
| Drum Diameter | 44 in / 1108 mm |
| Engine | |
|---|---|
| Engine Model | Cat® C3.6 |
| Engine Power (1) | 100 hp / 74.4 kW |
| Vibratory System | |
|---|---|
| Drum Width | 59 in / 1500 mm |
| Centrifugal Force per Drum - Maximum | 17602 lb / 78.3 kN |
| Centrifugal Force per Drum - Minimum | 11982 lb / 53.3 kN |
| Nominal Amplitude - High | 0.026 in / 0.65 mm |
| Nominal Amplitude - Low | 0.012 in / 0.31 mm |
| Vibration Selection | Independent per drum, front only, rear only, both |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 36 gal (US) / 137 l |
| Water Spray Tank Capacity | 195 gal (US) / 740 l |
