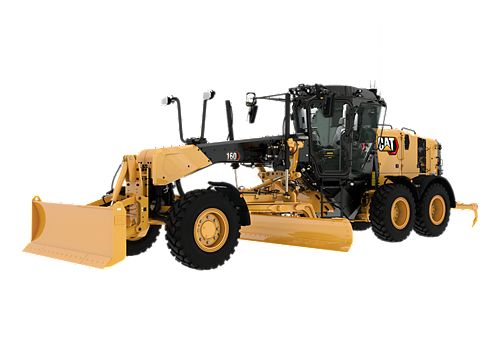

160 Next Gen

Net Power - ISO 9249/SAE J1349: 240 hp / 179 kW
Operating Weight - Typically Equipped: 43767 lb / 19853 kg
Blade Width: 14 ft / 4267 mm

Power, comfort, and tech boost operator efficiency with strong performance in tough conditions, a redesigned cab with better visibility, and smart features like grade tech, joystick steering, and easy attachment upgrades.

Loan Calculator Credit Application

Build & Quote

160 Motor Grader Key Features 160 Motor Grader Power to the Ground Key Features Cat Technologies for Motor Graders Brochure Cat Grade Technologies for Motor Graders Brochure Motor Grader Rig Out Catalog

Specifications
Equipment
Related Products

Engine
Net Power - ISO 9249/SAE J1349	240 hp / 179 kW
Engine Model	Cat® C9.3B

Weights
Operating Weight - Typically Equipped	43767 lb / 19853 kg

Machine Weight
Note (1)	* Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, transmission guard, rear ripper/scarifier, 14.0R24 tires on multi-piece rims, and other equipment.

Moldboard
Blade Width	14 ft / 4267 mm

Power Train
Forward/Reverse Gears	9 Forward / 6 Reverse

Service Refill Capacities
Diesel Exhaust Fluid Tank (Tier 4 Only)	88.2 Gal / 40 l
Fuel Tank	98 Gal / 371 l

Standard Equipment

NOTE
- Standard equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Cab, base
- Cab storage
- Cellphone holder
- Cup holder
- Differential lock, auto
- Automatic climate control
- Lights, dome interior
- Radio ready
- Rollover protective structure (ROPS) / falling objects protective structure (FOPS)
- Seat belt
- Seat, air suspension
- Wipers, front, door
SAFETY
- Back-up alarm
- Grab rails
- Hydraulic brakes
- Hydraulic system - integrated dead engine implement lower
- Hydraulic system - integrated work port pressure relief
- License plate bracket
- Lockout, hydraulic
- Mirror, rearview
- Operator Presence System
- Parking brake
- Signaling/warning horn
- Steering, secondary
- Tandem toolbox
- Tandem walkways
POWERTRAIN
- Cat® C9.3B engine
- Eco mode
- Ecology drain
- Engine idle shutdown
- Reversing fan
- Transmission, 9-speed
DRAWBAR CIRCLE MOLDBOARD
- Circle drive slip clutch
- Circle, top adjust
- Moldboard, 14 foot
ELECTRICAL
- 1125 CCA battery
- 150A Alternator
- LED lights - rear lights
- Reversing lights
SERVICE AND MAINTENANCE
- Engine service light
- Extended life coolant
- Ground level DEF and fuel fill
- Grouped location for engine oil and fuel filters
- Next generation fluid filters
- Service doors, barrel-hinged
- Service doors, lower panel toolless removal

Optional Equipment

NOTE
- Optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Cab, Plus (sliding side windows)
- CB radio mount bracket with converter
- Heated glass
- AM/FM, Bluetooth®, Weatherband
- Satellite radio
- Screen, rear sun shade
- Seat belt w/indicator
- Seat, premium heated and ventilated
- Wipers, side windows, rear
SAFETY
- Beacon mounts (2)
- Drawbar toolbox
- Mirrors, B-post
- Mirrors, side view
- Sound suppression, bottom
- Sound suppression, engine
POWERTRAIN
- All-wheel drive (AWD)
- Cold weather package
- Cold weather package plus
- High-speed engine oil drain
- Transmission with auto shift
DRAWBAR CIRCLE MOLDBOARD
- Blade lift accumulators
- Circle saver
- High Performance Circle with circle saver
- Moldboard cutting edges
- Moldboard end bits
- Moldboard grader bits
- Moldboard, 16 foot
ELECTRICAL
- 1400 CCA battery
- 200A Alternator
- Fold down rear lights and turn signals
- LED lights - snow wing
- LED working lights basic - mid-toe and heel lights
- LED working lights plus - mid-toe, heel, ripper, and cab roading lights
- Low light and high light bars
ATTACHMENTS
- Angling plow
- Brooms
- Counterweight
- Front blade, narrow
- Front blade, standard
- Lift groups
- Mid-machine scarifier (MMS)
- One-way plow
- Push block
- Rear ripper/scarifier
- Snow wing
- Straight plow
- Tow hitch
- Trip edge plow
- U-V plow
- V-Plow

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with Cross Slope Assist for Motor Graders
Cat Grade with 3D for Motor Graders

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™
Cat® Inspect
Cat® Remote Troubleshooting

Lift Group

Increase machine versatility and improve overall production.

Model	Pin Diameter	Actuation	Machine Model
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	140 JOY, 150 JOY, 160 JOY
50.8 mm Pin - Manual	2 in / 50.8 mm	Manual	140 JOY, 150 JOY, 160 JOY
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	14
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	140 JOY, 150 JOY, 160 JOY
50.8 mm Pin - Manual	2 in / 50.8 mm	Manual	140 JOY, 150 JOY, 160 JOY
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	14
