834
- Operating Weight
- 105271 lb / 47750 kg
- Net Power - SAE J1349:2011
- 496 hp / 370 kW
- Rated Speed
- 1900 r/min

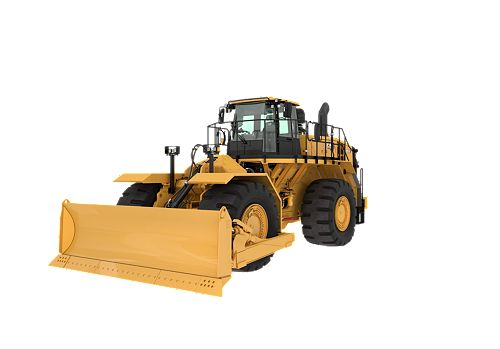

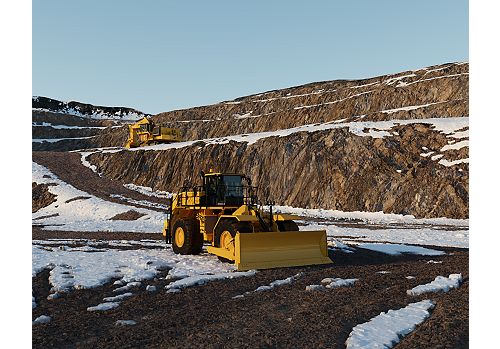

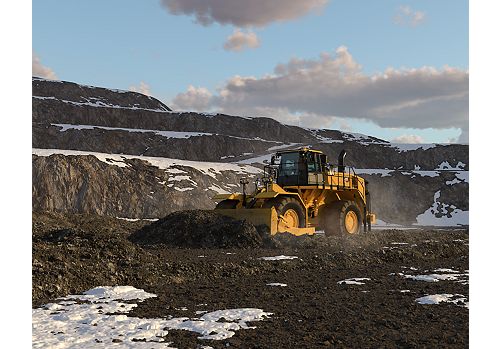

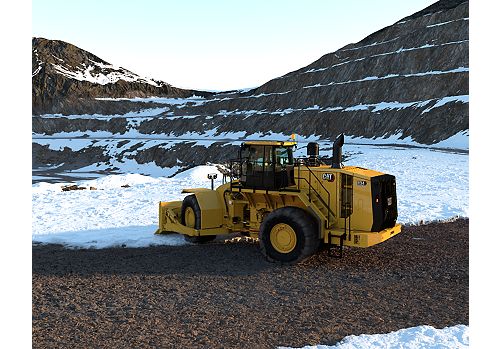

Designed with performance in mind, the Cat® 834 Wheel Dozer delivers fast speeds for quick travel and cleanup on your jobsite. Improved efficiency and more productivity get the job done quickly and with less emissions. Simplified serviceability makes for a long lifecycle, low owning and operating costs, and more uptime.
| Engine | |
|---|---|
| Engine Model | Cat® C18 |
| Net Power - SAE J1349:2011 | 496 hp / 370 kW |
| Rated Speed | 1900 r/min |
| Peak Power Speed | 1500 r/min |
| Gross Power - SAE J1995:2014 | 562 hp / 419 kW |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Displacement | 1105 in³ / 18.1 l |
| Peak Torque - 1,300 rpm | 2092 lb/ft / 2836 N·m |
| Torque Rise | 52 % |
| Note (1) | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Note (2) | The following engine configurations are available: – Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. – Noncertified that emits equivalent to U.S. EPA Tier 3. |
| Operating Specifications | |
|---|---|
| Operating Weight | 105271 lb / 47750 kg |
| Blade Capacities | 7.9 – 22.2 m3 (10.3 – 29.0 yd3) |
| Transmission | |
|---|---|
| Transmission Type | Cat planetary power shift |
| Forward - 1 | 4.2 mile/h / 6.8 km/h |
| Forward - 2 | 7.2 mile/h / 11.6 km/h |
| Forward - 3 | 12.6 mile/h / 20.3 km/h |
| Forward - 4 | 22 mile/h / 35.4 km/h |
| Reverse - 1 | 4.2 mile/h / 6.8 km/h |
| Reverse - 2 | 7.6 mile/h / 12.2 km/h |
| Reverse - 3 | 13.3 mile/h / 21.4 km/h |
| Direct Drive - Forward 1 | Lock-up disabled |
| Direct Drive - Forward 2 | 7.7 mile/h / 12.4 km/h |
| Direct Drive - Forward 3 | 13.7 mile/h / 22.1 km/h |
| Direct Drive - Forward 4 | 23.9 mile/h / 38.5 km/h |
| Direct Drive - Reverse 1 | 4.5 mile/h / 7.2 km/h |
| Direct Drive - Reverse 2 | 8.1 mile/h / 13 km/h |
| Direct Drive - Reverse 3 | 14.3 mile/h / 23 km/h |
| Note | Travel speeds based on 35/65-R33 tire |
| Hydraulic System - Lift/Tilt | |
|---|---|
| Lift/Tilt System - Circuit | Pilot operated LS valve with EH |
| Lift/Tilt System | Variable displacement piston |
| Maximum Flow at 1,900 rpm | 153 gal/min / 582 l/min |
| Relief Valve Setting - Lift/Tilt | 4641 psi / 32000 kPa |
| Cylinders, Double Acting - Lift, Bore and Stroke | 139.75 mm × 1021 mm (5.5 in × 40.2 in) |
| Cylinders, Double Acting - Left and Right Tilt, Bore and Stroke | 140 mm × 230 mm (5.5 in × 9.1 in) |
| Pilot System | Variable displacement piston |
| Pilot Maximum Flow | 13.7 gal/min / 52 l/min |
| Pilot Relief Valve Setting | 580 psi / 4000 kPa |
| Hydraulic System - Steering | |
|---|---|
| Steering System - Circuit | Pilot, load sensing |
| Steering System - Pump | Piston, variable displacement |
| Maximum Flow | 65.8 gal/min / 250 l/min |
| Relief Valve Setting - Steering | 3495 psi / 24100 kPa |
| Total Steering Angle | 86 ° |
| Steering Cycle Times - High Idle | 3.1 s |
| Steering Cycle Times - Low Idle | 5.7 s |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 209.5 gal (US) / 793 l |
| Cooling System | 31.7 gal (US) / 120 l |
| Crankcase | 15.9 gal (US) / 60 l |
| Diesel Exhaust Fluid Tank | 8.7 gal (US) / 33 l |
| Transmission | 31.7 gal (US) / 120 l |
| Hydraulic System Factory Fill | 63.4 gal (US) / 240 l |
| Differential - Final Drives - Front | 49.1 gal (US) / 186 l |
| Differential - Final Drives - Rear | 49.1 gal (US) / 186 l |
| Hydraulic System - Tank Only | 37 gal (US) / 140 l |
| Note (1) | All non-road Tier 4 Final/Stage V diesel engines are required to use: – ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. • For pre-Tier 4 engines: Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: • 100% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons). |
| Axles | |
|---|---|
| Front | Fixed |
| Rear | Trunnion |
| Oscillation Angle | ±13° |
| Brakes | |
|---|---|
| Brakes | ISO 3450: 2011 |
| Sound Performance - Tier 4 Final / Stage V | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 109 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Sound Performance - Tier 3 / Stage IIIA | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 110 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Dimensions | |
|---|---|
| Height - Top of Exhaust Stack | 15.9 ft / 4835 mm |
| Height - Top of Air Cleaner | 12.8 ft / 3895 mm |
| Height - Top of Hood | 10.9 ft / 3334 mm |
| Ground Clearance - Bumper | 3.1 ft / 933 mm |
| Centerline of Rear Axle to Edge of Bumper | 10.5 ft / 3187 mm |
| Wheel Base | 14.9 ft / 4550 mm |
| Length - Front of Tire | 28.4 ft / 8715 mm |
| Length - Straight Blade on Ground | 32.6 ft / 9927 mm |
| Length - Universal Blade on Ground | 34.4 ft / 10470 mm |
| Centerline of Front Axle to Hitch | 7.5 ft / 2275 mm |
| Ground Clearance | 1.7 ft / 531 mm |
| Height - Top of Cab | 13.7 ft / 4184 mm |
